Ref: TR3D-C

Three Axis Load Cell - Square - 45 to 180 kN - Fatigue rated

  • Measuring Range Fyxz : 44 kN to 177 KN per axis
  • Nonlinearity : < 1 % FSO (X, Y), < 2 % FSO (Z)
  • Dimensions min : 76 x 76 x 42 mm to 152 x 152 x 76 mm
  • Output Signal : 1,5 mV/V
  • Housing: Stainless Steel
  • Operating temperature range: -40°C à +149°C
  • Connector + 3,05 m cable included
  • NIST traceable calibration certificate included

Download the product sheet

?

Description:

Michigan Scientific’s TR3D-C Square Three Axis Load Cells are designed for applications that require force measurements in three perpendicular directions. Available in 44kN, 71kN and 177kN capacities, these rugged transducers are ideally suited for both field data acquisition and laboratory testing. The transducers have identical top and bottom mounting surfaces and bolt patterns, and can be easily adapted to an unlimited variety of applications. High grade stainless steel material, in addition to weatherproof sealing, combine to provide excellent resistance to corrosion and environmental conditions. Temperature compensation of the transducers ensures stable output throughout a wide temperature range.

Available Models:

Model TR3D-C-10K TR3D-C-16K TR3D-C-40K
Measuring Range Fxyz : 44,5 kN Fxyz : 71 kN Fxyz : 178 kN
Moment capacity (par axe) - Nm 675 1700 5900
Output signal 1,5 mV/V 1,5 mV/V 1,5 mV/V

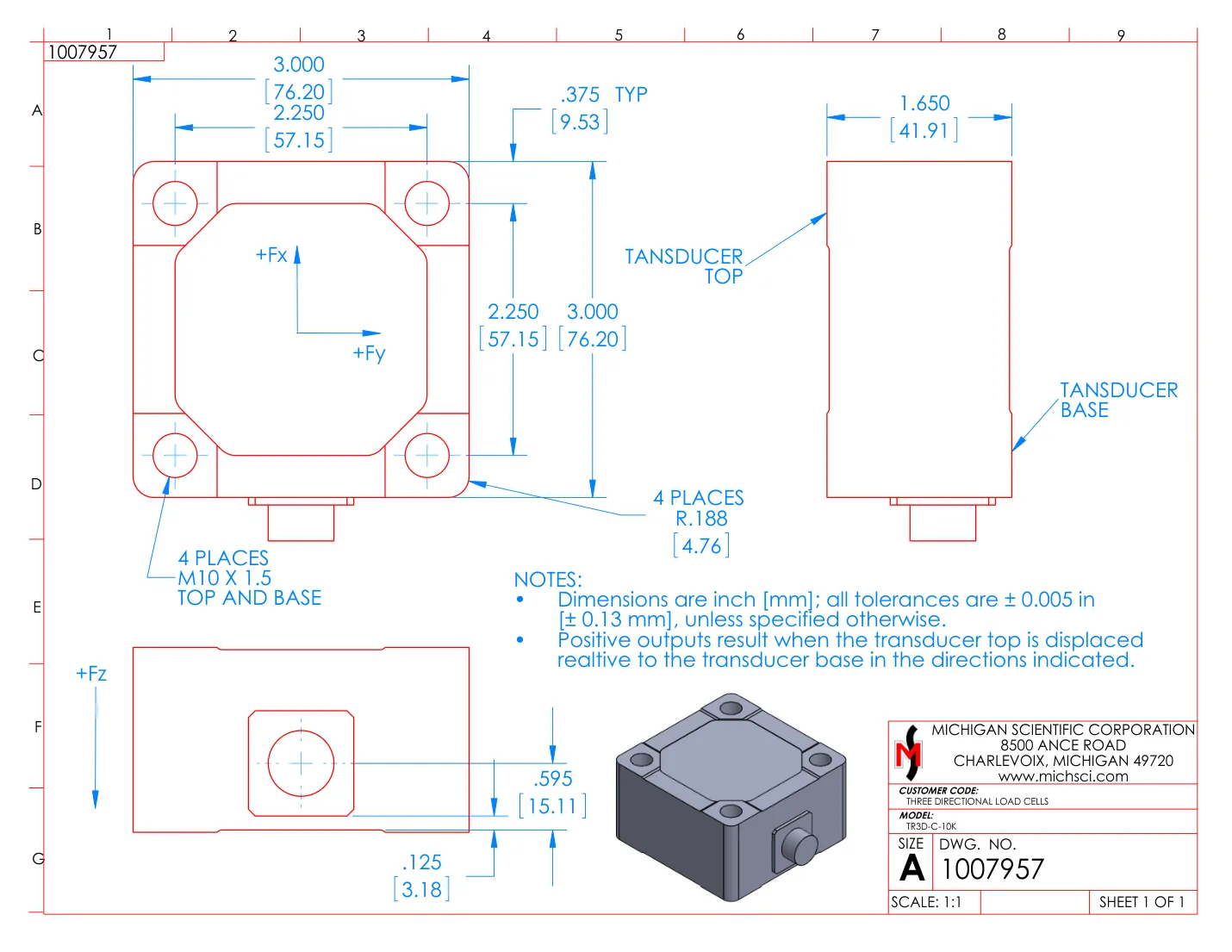

Dimensions [mm] 76,20 x 76,20 x 41,91 101,6 x 101,6 x 50,8 152,4 x 152,4 x 76,20
Weight (kg) 1 2,2 7,5
Thread M10 x 1,5 M12 x 1,75 M20 x 2,5

Installation

The force is introduced thru 4 threads M10 to M20 depending on the models at the corners of the upper and lower surfaces of the sensor. The compact dimensions facilitate integration either by modification of existing parts or the design of specific mounting flanges. TR3D-C is powered over a voltage supply of 2.5 to 10VDC, the output signal is 1.5mV / V for each of the 3 axes. A detachable cable of 3.05m and a calibration certificate are included. Optional signal conditioning and acquisition modules are available.

Applications

  • Endurance test bench
  • Vehicle testing
  • Machine building
Type
beam sensor
Number of Axis
3 Axis
Measuring Range (Force)
10 kN - 100 kN
Measuring Range (Torque)
not available
Nonlinearity (% FS)
± 1 %
Hysteresis
0.5 % FS
Zero Balance
0.2 %PE/°C
Output Signal
1.5 mV/V
Tension d'alimentation
10 Vcc
Protection Class
IP40
Housing
Steel
Model TR3D-C-10K TR3D-C-16K TR3D-C-40K
Dimensions [mm] 76,20 x 76,20 x 41,91 101,6 x 101,6 x 50,8 152,4 x 152,4 x 76,20
Weight 1 2,2 7,5
Thread M10 x 1,5 M12 x 1,75 M20 x 2,5
  • Custom wiring (cable length, connectors)
  • Special Calibration
  • Temperature range compensated
  • Data acquisition system
  • Encoder / Amplifier (with or without display)
