Force and torque measurement for vehicle and component testing Real loads.
Real roads.
Products and engineering services for test teams: wheel force transducers, load cells, slip rings and telemetry, from the catalog or designed for your part.
Wheel force transducers on a Baja SAE car, Michigan Tech
What do you need to measure?
Ten product families, each built around one measuring problem. Each family page helps you choose the model.
-

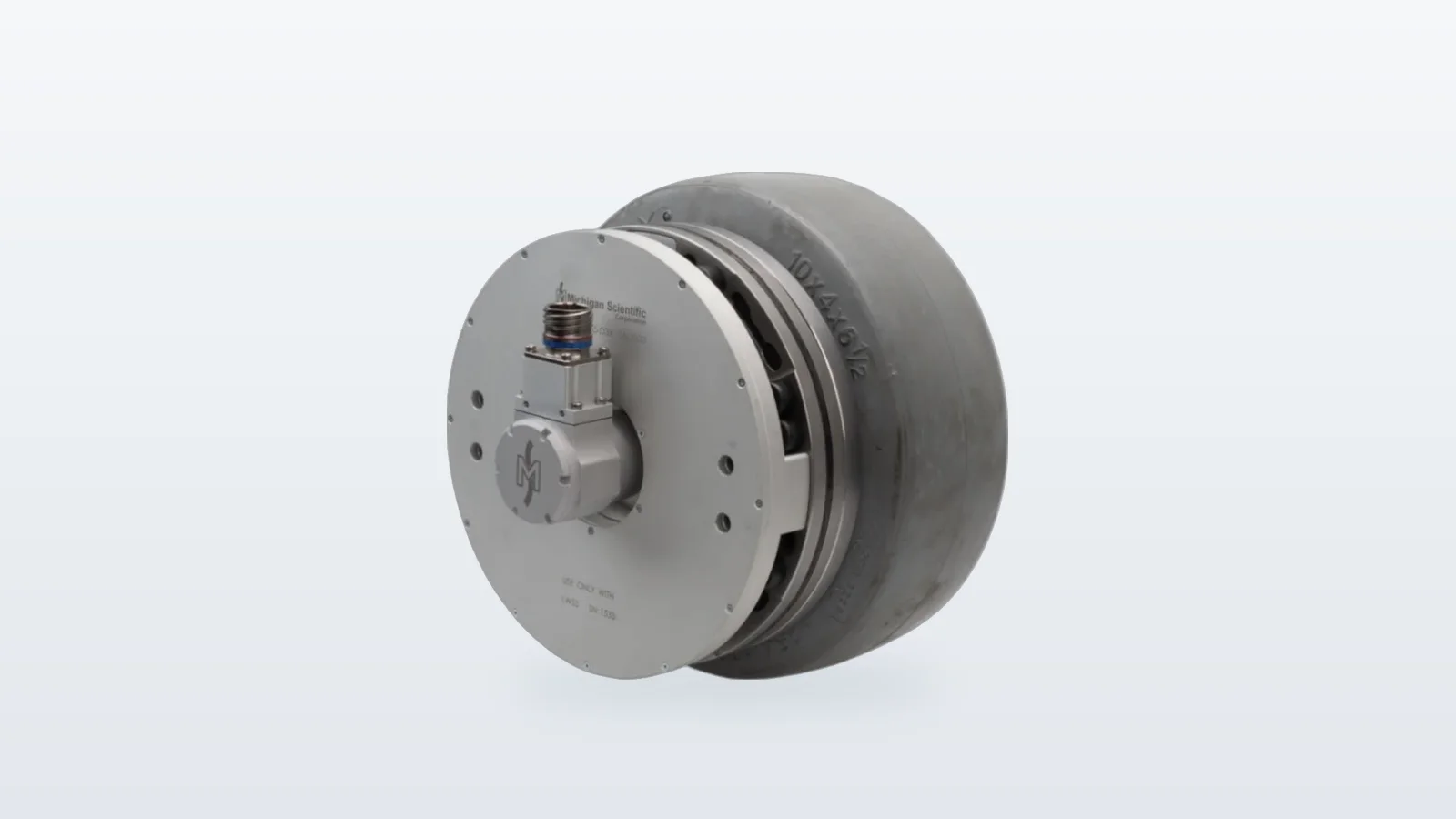

Wheel force transducersSix load components at the wheel center -
Slip ring assembliesSensor signals from rotating parts -

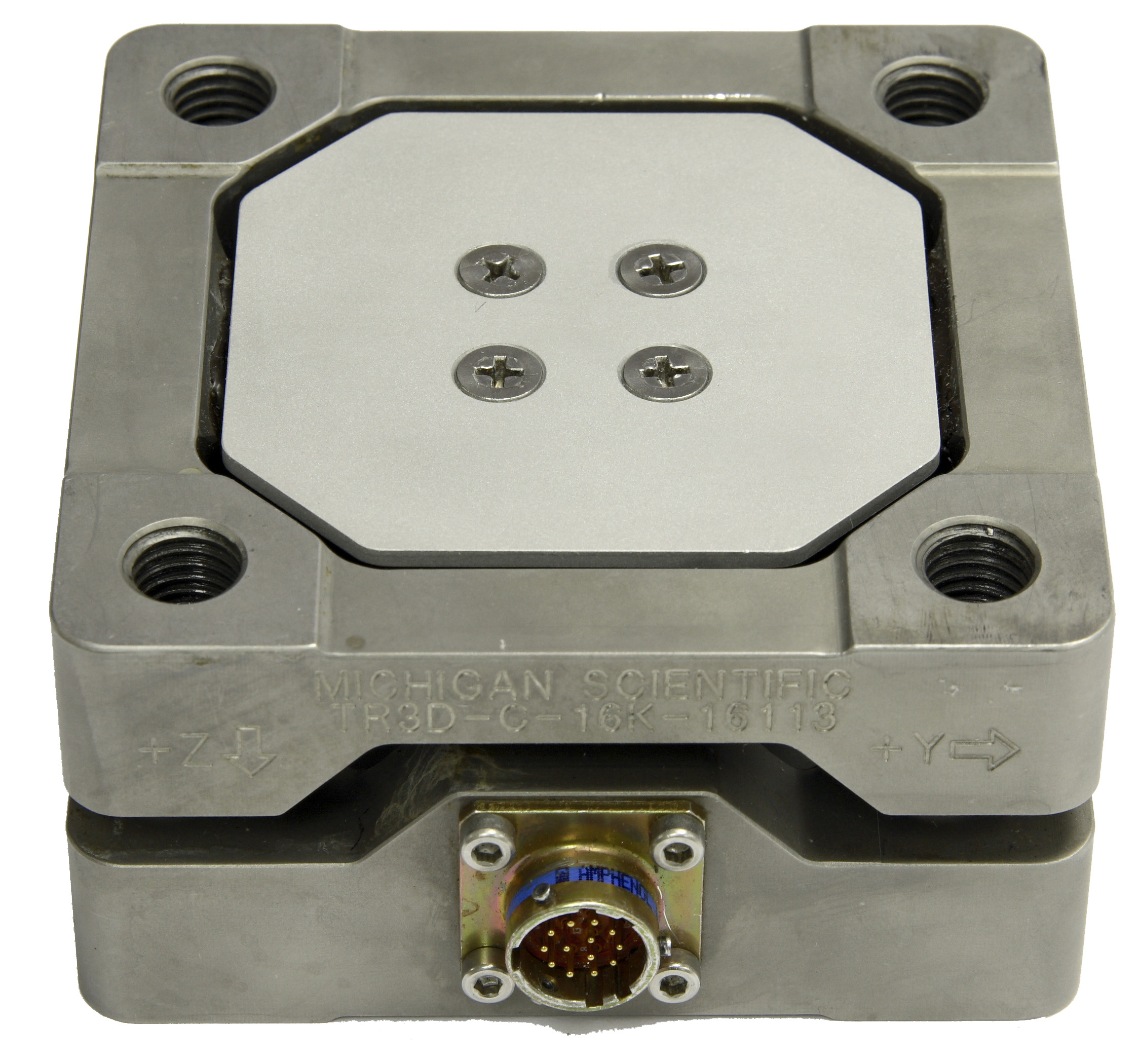

Load cellsForces and moments in three, five or six axes -

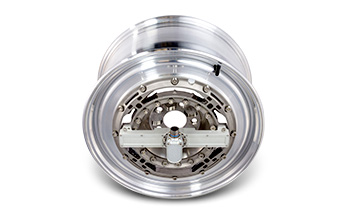

Wheel instrumentationStrain, temperature, wheel speed and side slip -

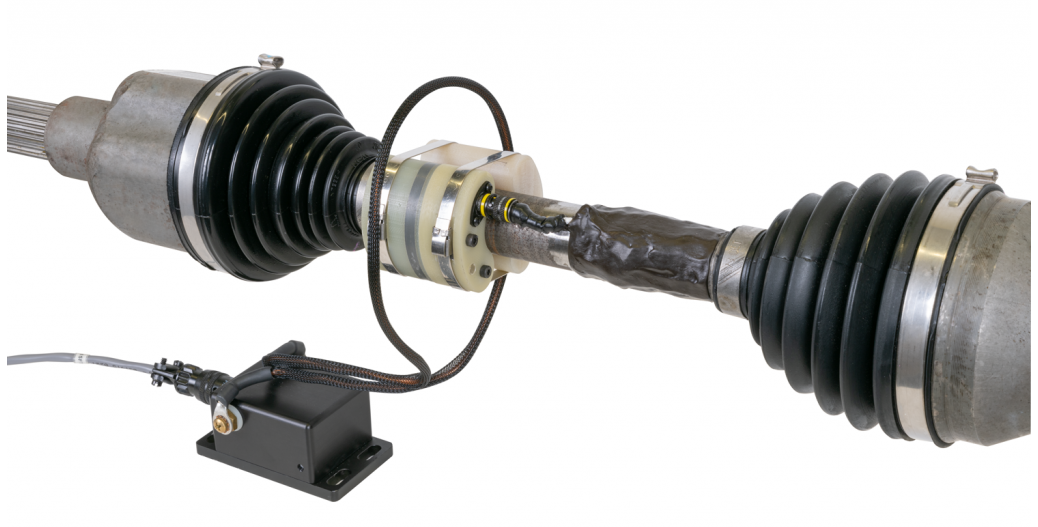

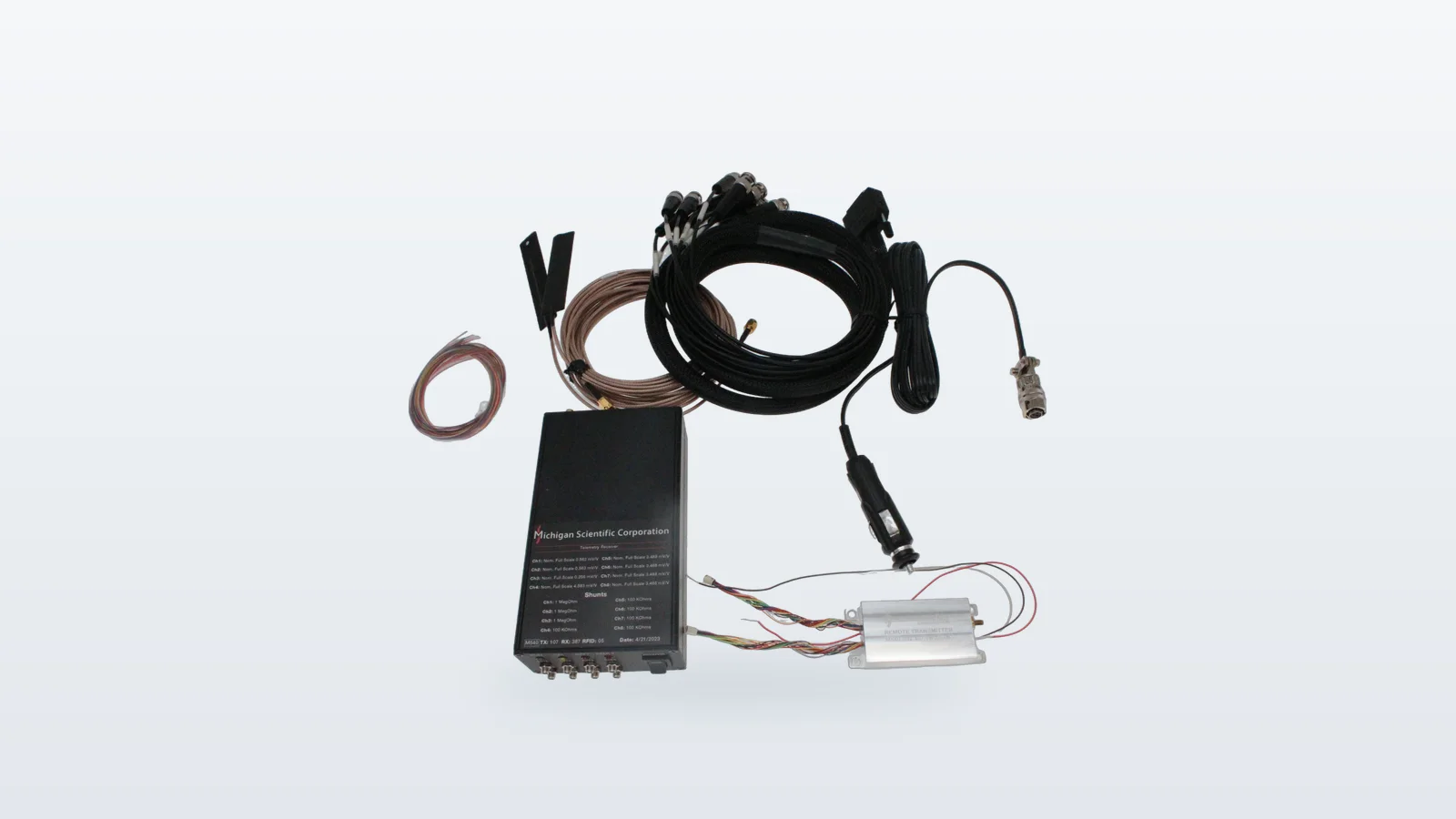

Wireless telemetryStrain and temperature on rotating shafts -

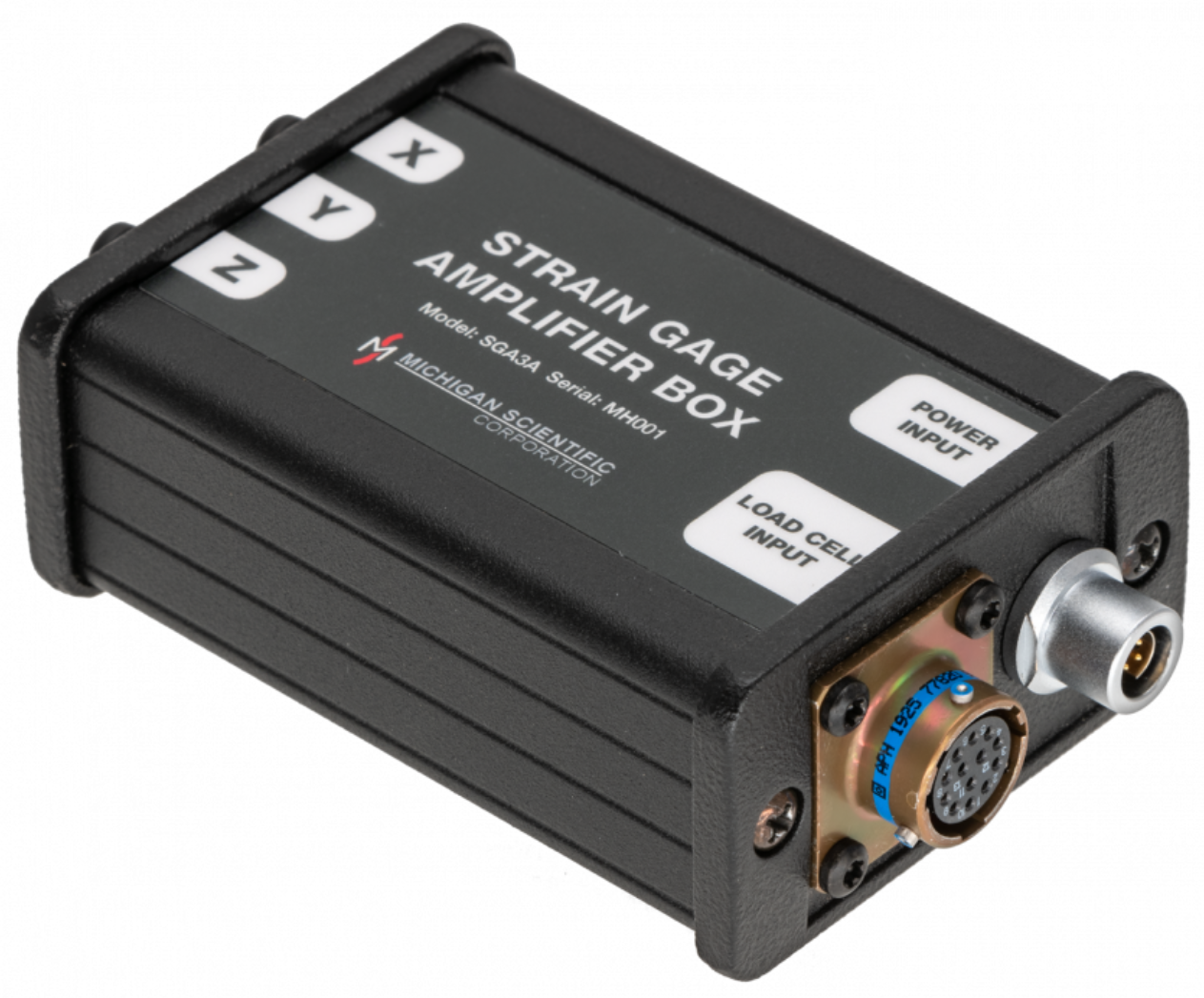

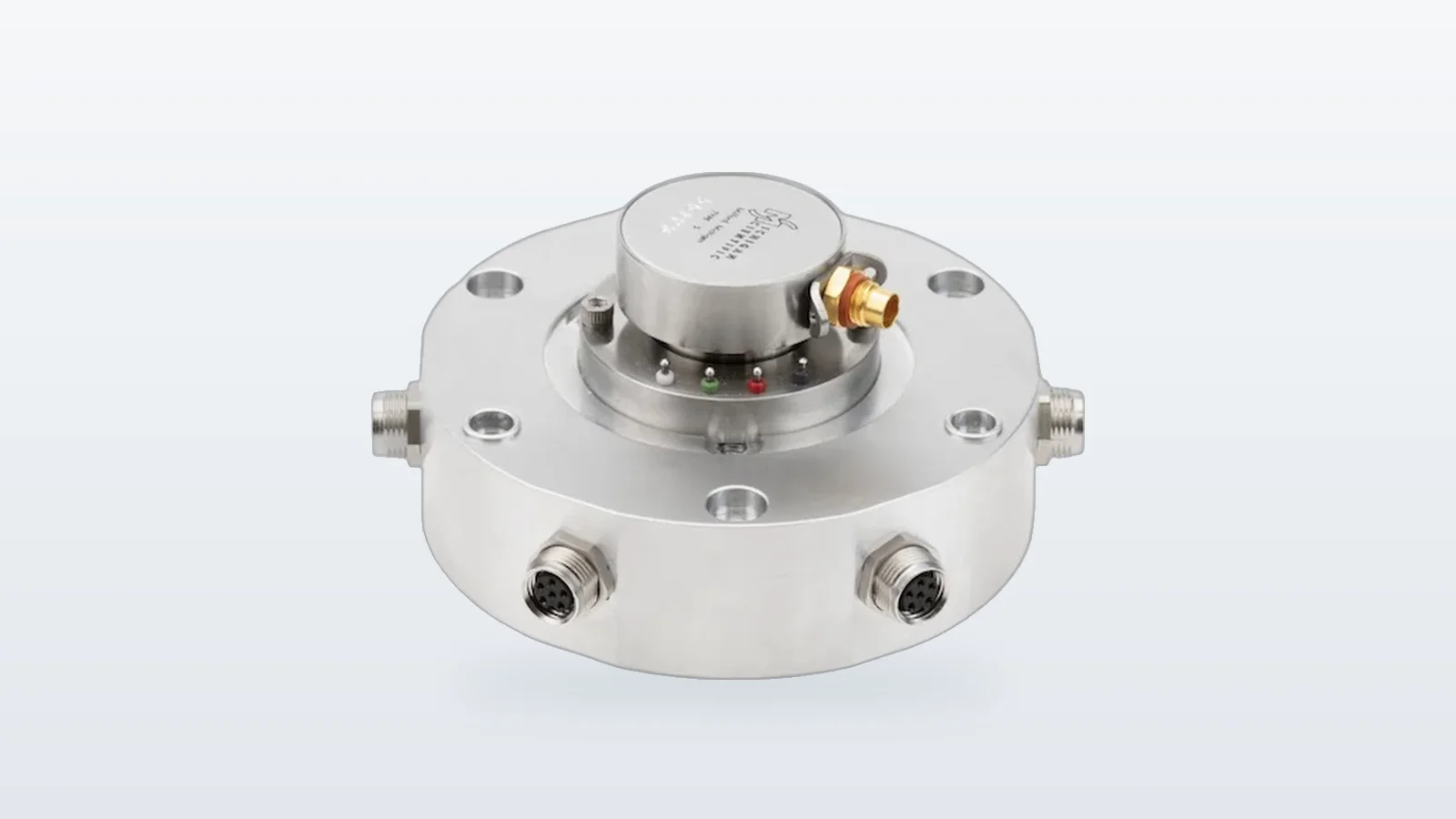

Signal conditioningAmplifiers for strain gages and thermocouples -
Torque transducersShaft torque at the PTO and on the test bench -

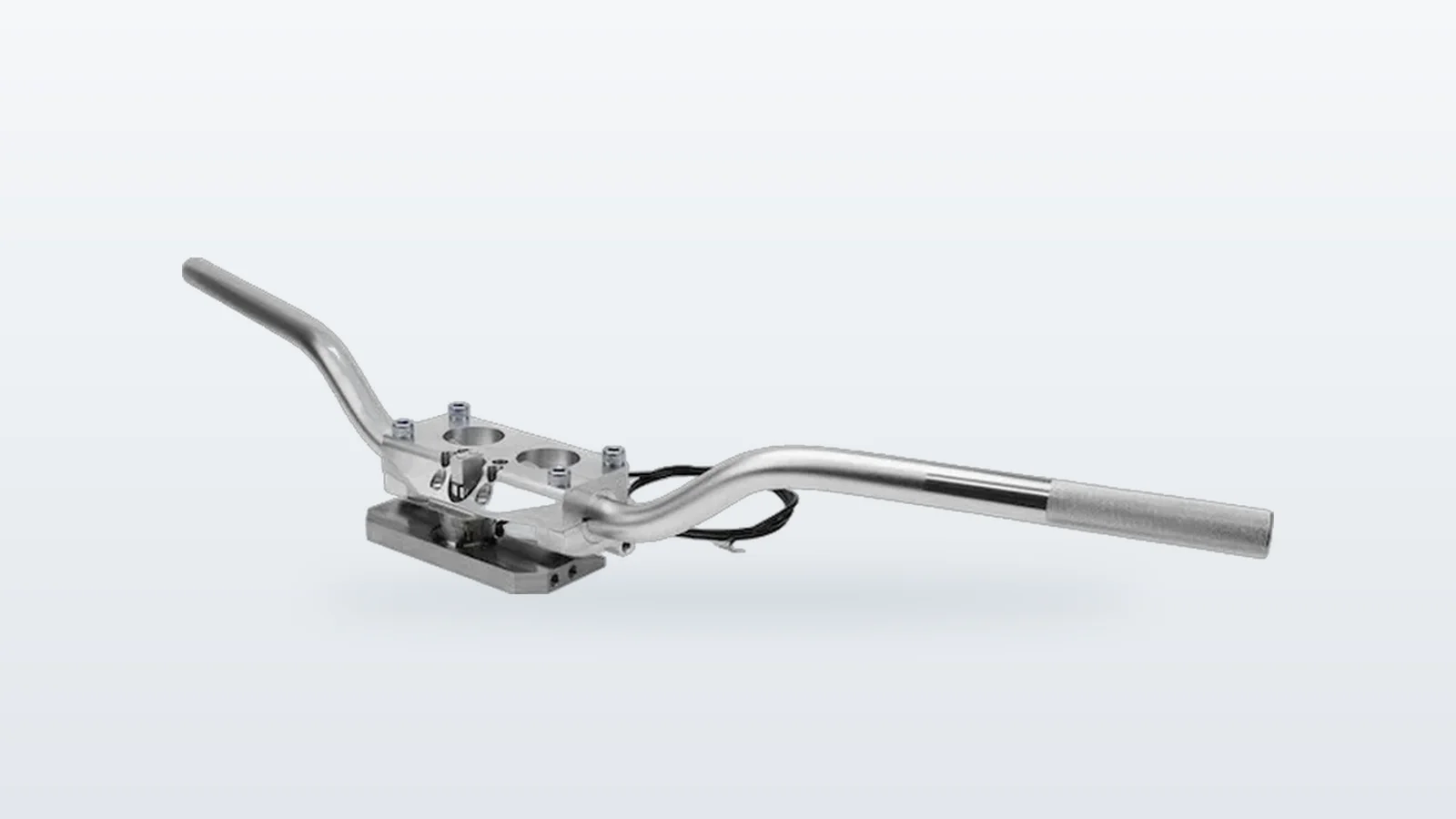

Steering transducersSteering torque and angle in real driving -

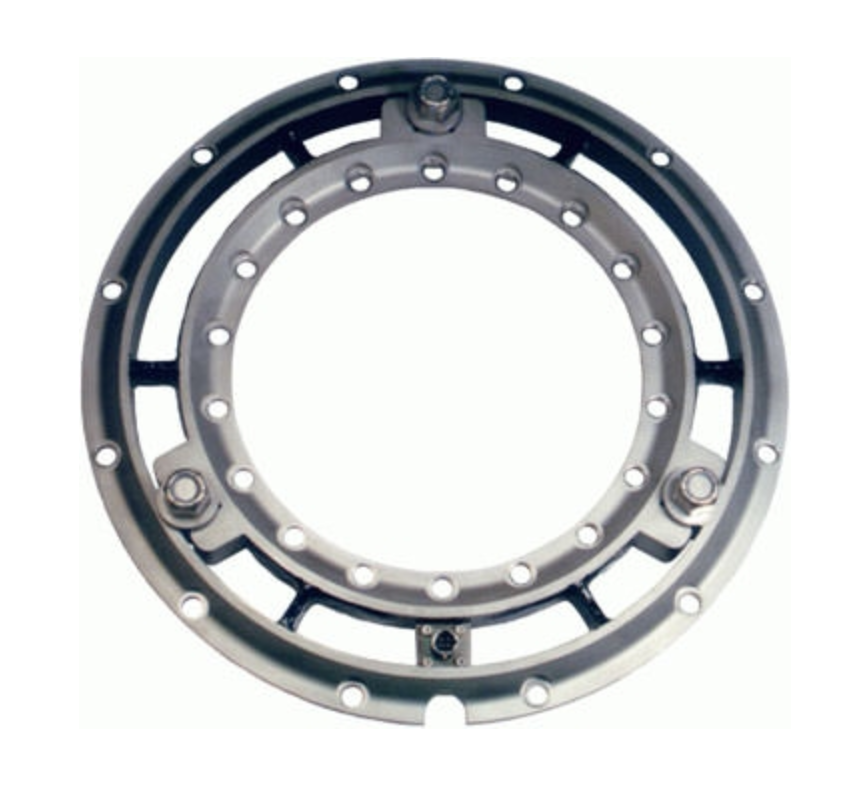

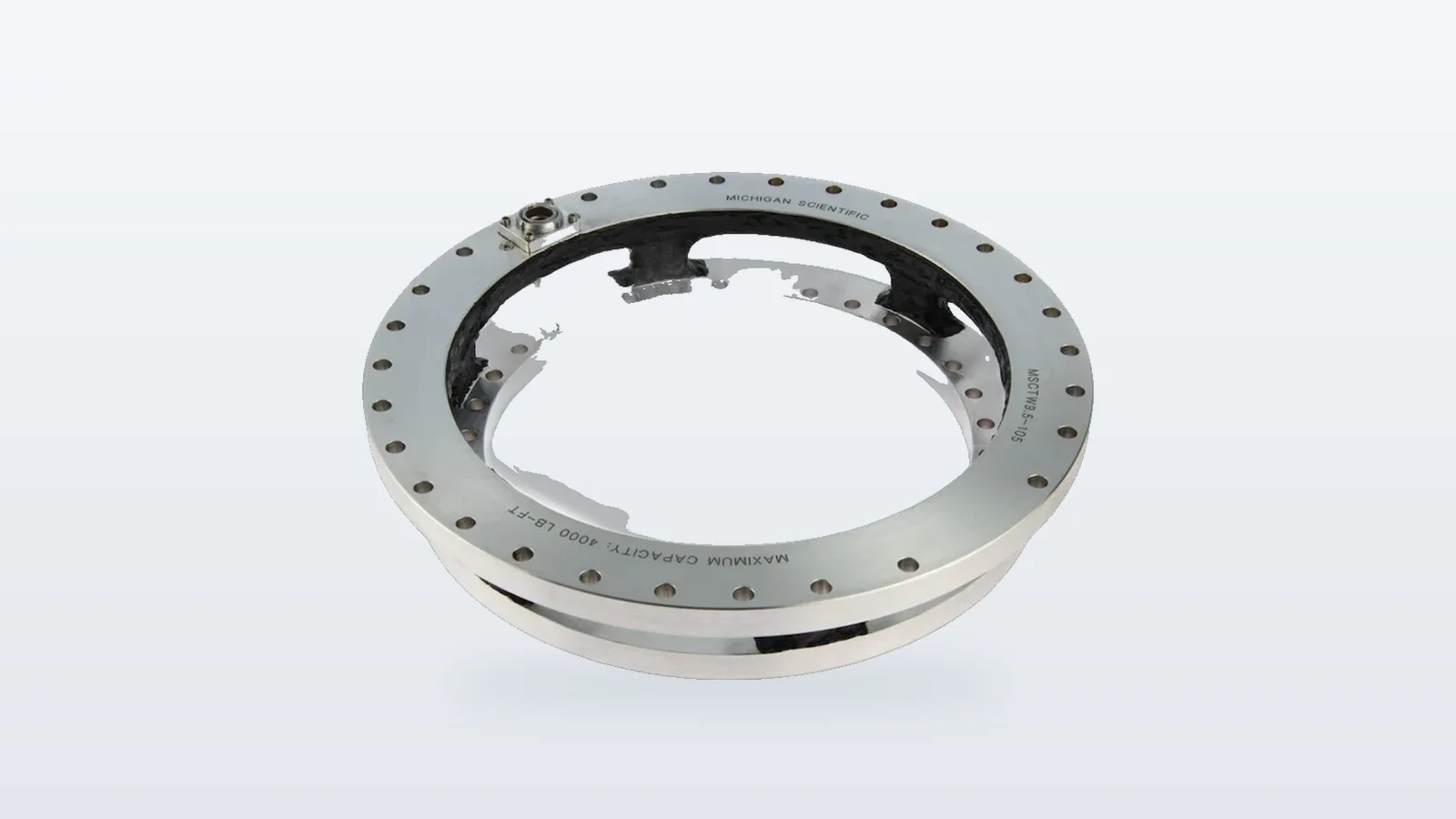

Wheel torque transducersDrive and brake torque at the wheel -

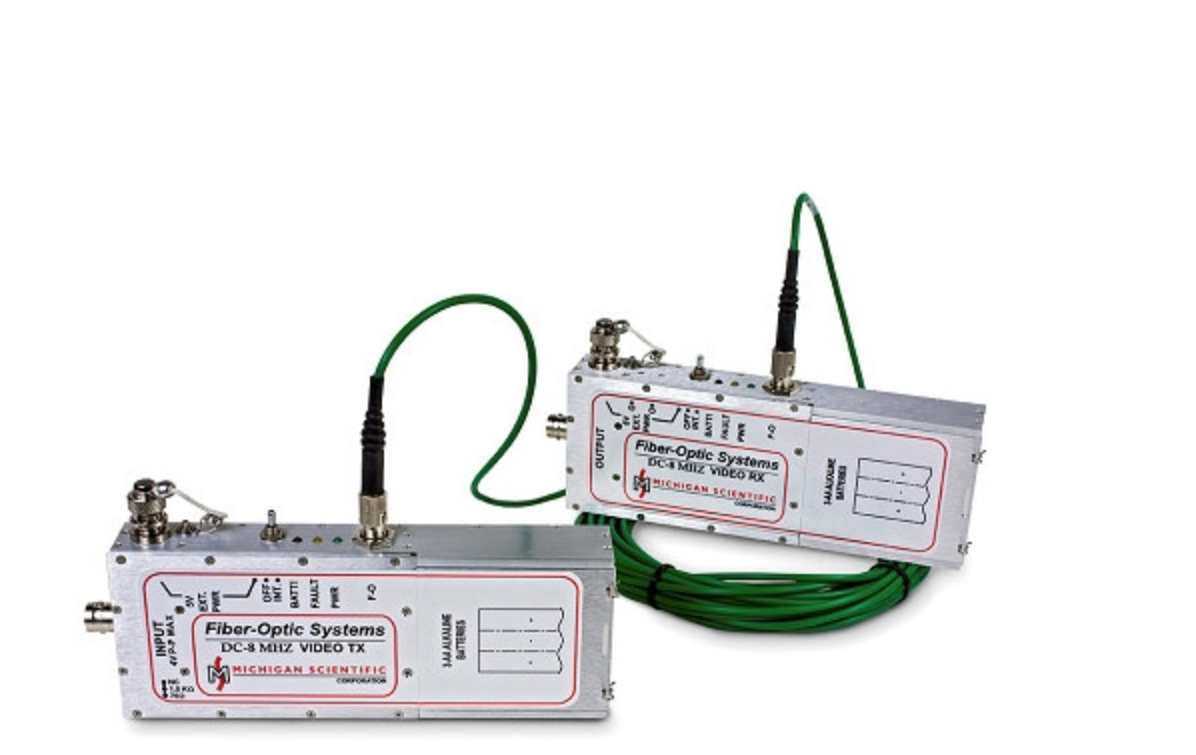

Fiber-optic systemsAnalog, CAN and video links for EMC chambers
Engineering services
When no catalog model fits your part, your space or your schedule, our engineers design, gage and build what the test needs.
-
Custom transducersLoad cells, load pins and multi-axis transducers, designed for your load case -

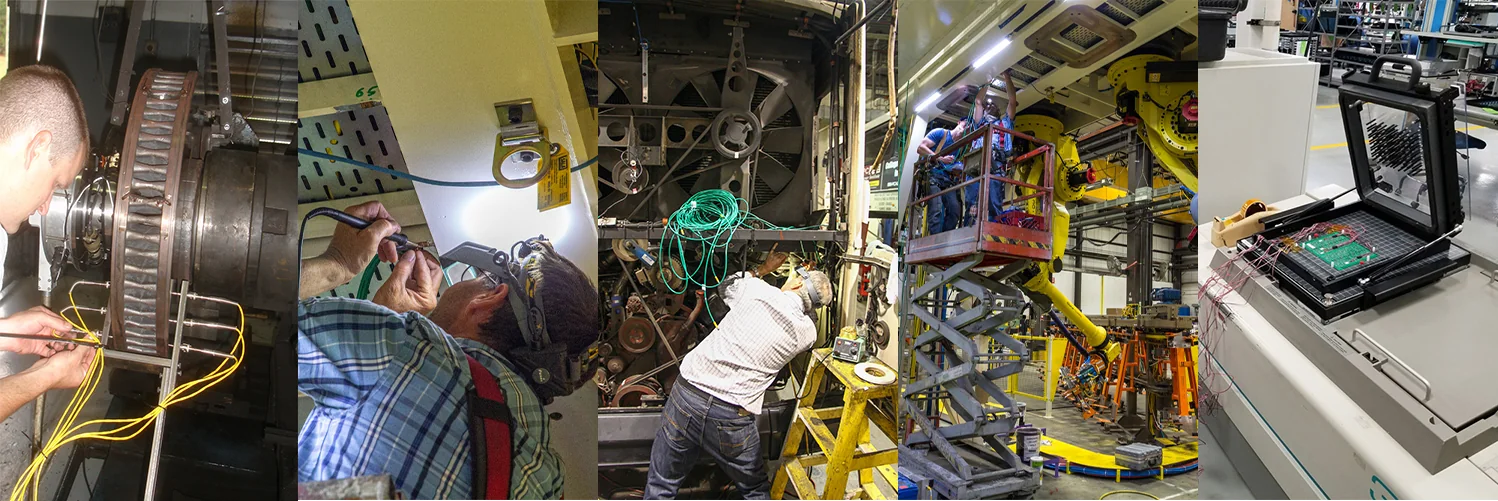

Strain gagingYour own part gaged and calibrated as a transducer -
Custom slip rings and telemetryDesigned to your signals, speed and space -
Adapter designWheel adapters and fixtures for your vehicle -
RentalA complete, calibrated system for the campaign
Short of hands for the campaign? We instrument the vehicle, run the test and deliver the data.
Precise. Robust. Since 1960.
- Measured at the source
- At the wheel center, on the shaft, in the tie rod. The load you record is the load the vehicle sees.
- Built for hard conditions
- Sealed transducers, slip rings and telemetry that last the whole campaign on snow, ice, salt and off-road. Calibration accredited to ISO/IEC 17025.
- Sixty years of testing behind the range
- Each product answers a problem met on a real test: a signal to get off a spinning wheel, a vehicle you cannot modify, high voltage and electrical noise.
The tests we help run
Our engineers have instrumented wheels, driveshafts, steering columns and suspension links on cars, trucks, tractors and trains.
-
Durability testing Road load data at the wheel and on the parts, recorded on the proving ground, to size components and drive the rig. -
Vehicle dynamics Tire forces, side slip angle, steering torque and angle, and wheel speed, recorded during handling maneuvers. -
Powertrain and transmission Half-shaft, propshaft and crankshaft torque, and temperatures on rotating parts, on the road and on the dyno. -
Component testing Forces on suspension links, mounts, seats, hitches and pedals, measured on the part itself in its production position. -
Brake testing Disc and hub temperatures, brake torque, wheel forces and pedal force, measured while the vehicle brakes. -
Crash and impact Impact forces on the barrier and on the seat mountings, measured in three directions. -
Test rigs and dynos Rotating signals in cells full of EMI and high voltage. -
Off-road Wheel and axle loads, PTO torque and power, and hitch forces on trucks, tractors, tracked vehicles and machines.
Test teams that measure with Michigan Scientific
Preparing a test? Tell us what you need to measure, and on which vehicle.
Talk to an engineer
