BPFT pedal force transducer
The force the driver puts on the pedal, read the same wherever the foot presses.
- 2 200 N
- Capacity (500 lb)

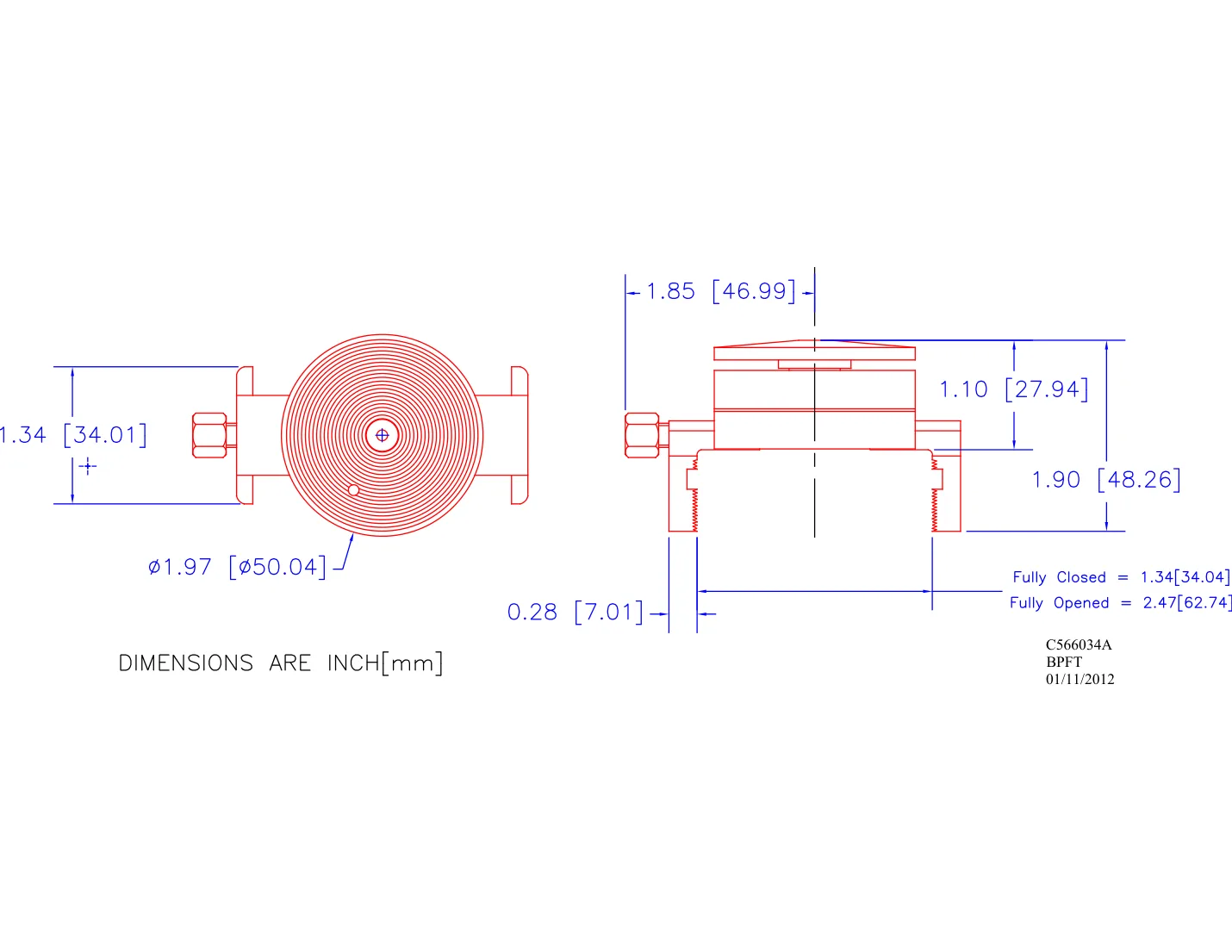

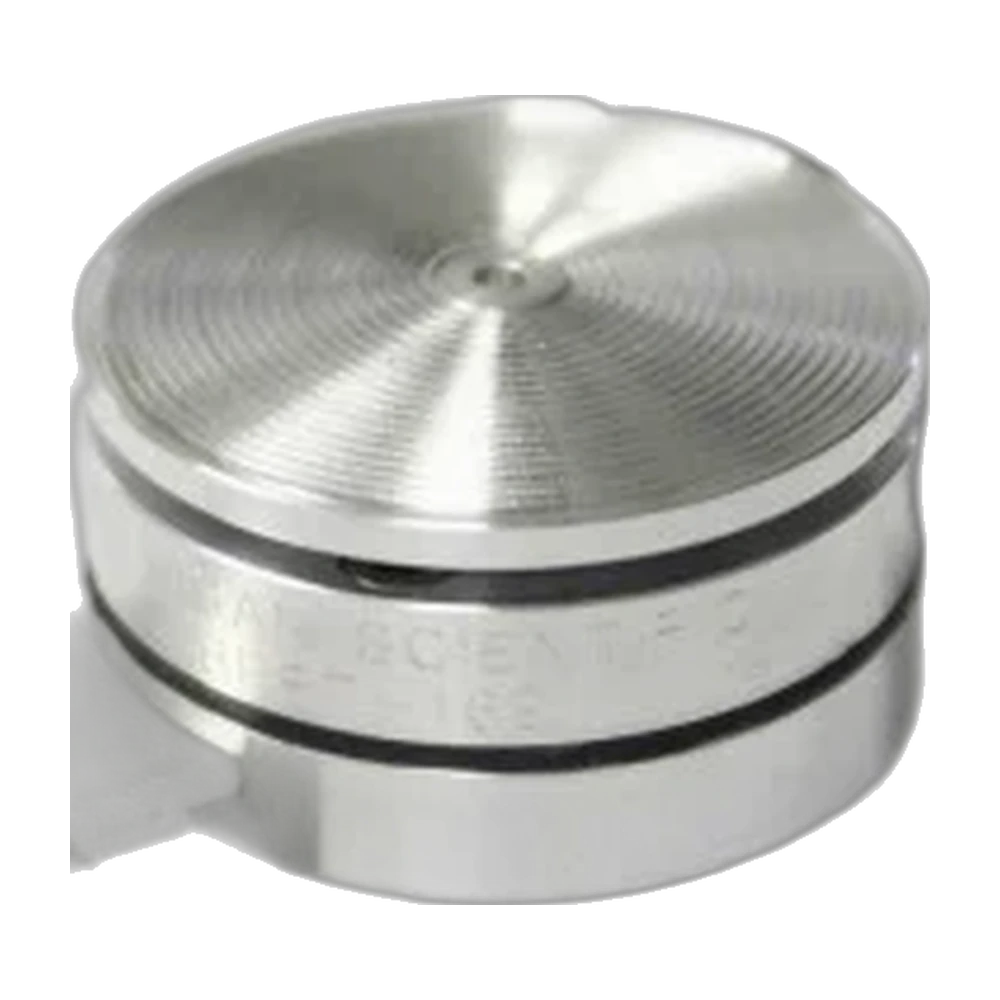

- Ø 50 mm
- Compact body
- 2.25 mV/V
- Output
- 0.1 % FS
- Non-linearity
- 2 200 N
- Capacity, compression

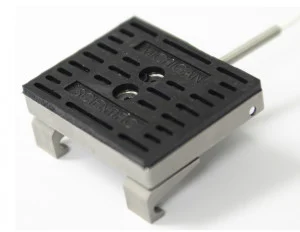

- 113 × 50.8 mm
- Low profile
- 2.75 mV/V
- Full-scale output
- −40 to 149 °C
- Operating range
- 2 200 N
- Capacity
- Low profile
- Body
- 1.5 mV/V
- Output
- 0.5 % FS
- Non-linearity
- Hysteresis≤ 0.5 % FS
- Bridge350 Ω · 10 V DC
- Fitsbrake, clutch, accelerator, parking brake
- Hysteresis≤ 0.1 % FS
- Bridge350 Ω · 10 V DC
- Fitsbrake, clutch, accelerator, parking brake
- Hysteresis≤ 0.1 % FS
- Bridge350 Ω · 10 V DC
- Fitsbrake, clutch, accelerator, parking brake
On the series pedal, in minutes
The transducer goes on the original pedal once the rubber pad is removed, and is held by a single bolt. Its size is close to the pedal itself, so the pedal keeps its feel.
It measures the compressive force applied to a brake, accelerator or clutch pedal from 0 to 2 200 N, and stays accurate when the force is not centered.
Each transducer ships with a mounting clamp and a calibration certificate.
Specifications
| Force capacity | 2.2 kN |
|---|---|
| Non-linearity | ≤ 0.1 % FS |
| Hysteresis | ≤ 0.5 % FS |
| Axes | 1 |
| Rated output | 2.25 mV/V |
| Excitation voltage | 10 V |
| Bridge resistance | 240 Ω |
| Weight | 119 g |
| Material | Steel |
| Operating temperature | −40 to 149 °C |
| Connections | Connector (optional) |
| Force capacity | 2.2 kN |
|---|---|
| Non-linearity | ≤ 0.5 % FS |
| Hysteresis | ≤ 0.1 % FS |
| Axes | 1 |
| Rated output | 2.75 mV/V |
| Excitation voltage | 10 V |
| Bridge resistance | 350 Ω |
| Weight | 350 g |
| Material | Steel |
| Operating temperature | −40 to 149 °C |
| Connections | Connector (optional) |
| Force capacity | 2.2 kN |
|---|---|
| Non-linearity | ≤ 0.5 % FS |
| Hysteresis | ≤ 0.1 % FS |
| Axes | 1 |
| Rated output | 1.5 mV/V |
| Excitation voltage | 10 V |
| Bridge resistance | 350 Ω |
| Weight | 300 g |
| Material | Steel |
| Operating temperature | −40 to 149 °C |
| Connections | Connector (optional) |
Resources
Datasheets and manuals
Drawings
CAD models
None for BPFT.
Datasheets and manuals
CAD models
Related applications
-
Agriculture Agricultural machinery Wheel loads, wheel torque, PTO power and forces on working parts, measured on the machine at work. -
Brakes Brake pedal force The force the driver puts on the brake pedal, read up to 2 200 N on the series pedal. -
Agriculture PTO torque and power The torque and speed that the tractor delivers to the implement, measured during real field work. -
Agriculture Combine harvester gearbox Torque, speed and temperature on the pulleys, gears and gearboxes of a combine, to find power losses.
Next to the pedal
- Torque at the wheel while braking TW series wheel torque transducers
Brake and drive torque My, measured while driving.
- Steering effort SW-SR2 steering wheel transducer
Steering torque and angle on the series steering wheel.
- Disc temperatures SR Series slip rings
Thermocouple signals off the disc while the wheel turns.
A question on this product?
Vehicle, pedal, test type. An application engineer answers.
More details to give? Use the full contact form.
