Ref: SR10AW/E60/A

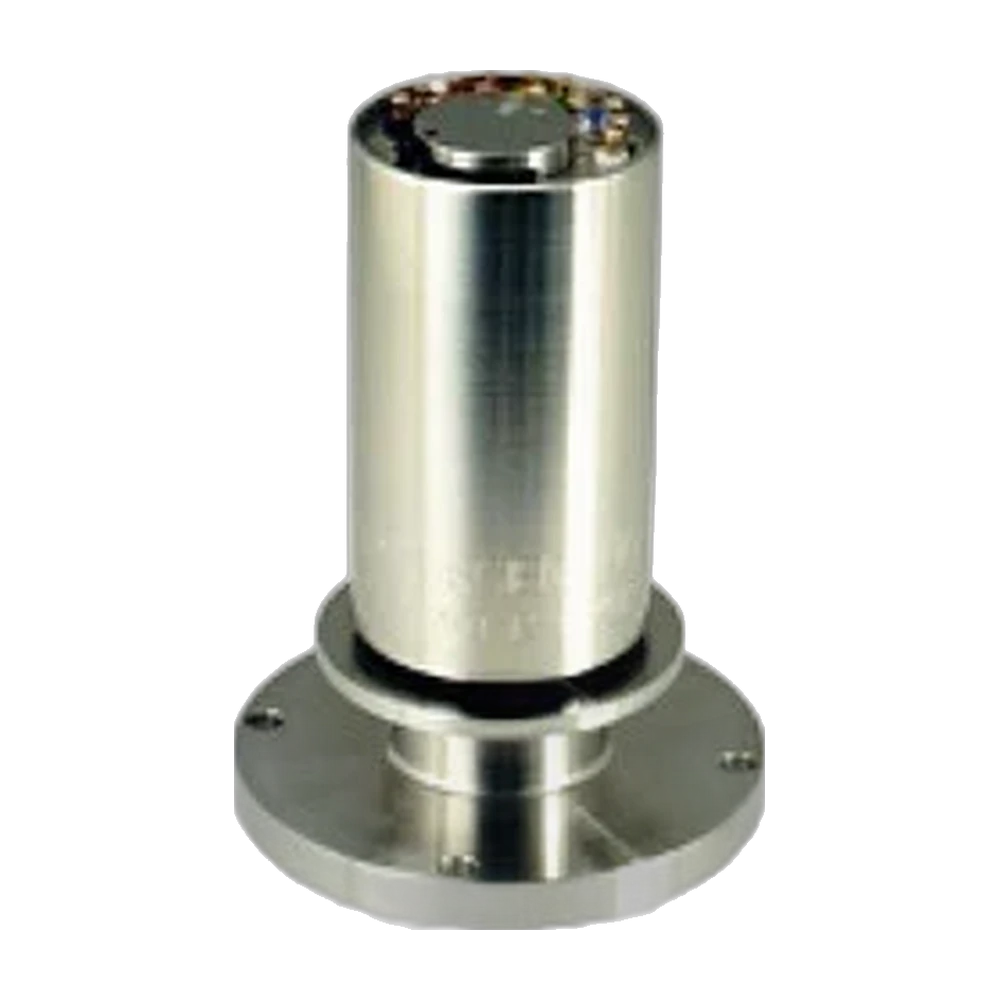

Slip Ring – End of Shaft – 10 Circuits - Encoder 60 ppr

  • 10 circuit weatherproof slip ring
  • 60 pulse encoder
  • Color coded terminals
  • Lightweight and compact
  • Permanently lubricated bearings
  • Rugged stainless steel construction
  • Instrumentation quality rings and brushes

Download the product sheet


The Michigan Scientific SR10AW/E60/A Weatherproof Slip Ring and Encoder Assembly is used for applications requiring both a sealed slip ring and an encoder. It is designed to mount on the end of a rotating shaft, and make an electrical connection to strain gages, thermocouples, or other rotating sensors, while simultaneously providing pulses to measure rotational speed. Specially designed seals provide complete weatherproof protection from water, dust, and other contaminants. The slip ring brushes and rings are made of precious metals, which minimize noise and enable the assembly to be used for low level instrumentation signals.

The SR10AW/E60/A accepts up to 10 circuit connections and incorporates a pulse encoder that enables rotational speed to be measured. The encoder generates a 60 pulse per revolution square wave signal with a range of 0 to 6000 RPM. Since the pulses per second are equivalent to RPM, rotor speed can be recorded directly from a frequency display without scale conversion. Analog output signals for rotational speed can be obtained by using this slip ring and encoder model with Michigan Scientific’s frequency to voltage encoder electronics.

Connections to the slip ring rotor are made through a military style connector. For complete weatherproofing of this assembly, it must be used with a sealed metal cap or rubber boot to protect the terminals on the slip ring stator. Both of these options incorporate a military style connector, enabling all connections to the slip ring and encoder to be made through connectors. In addition, permanently lubricated bearings eliminate the need for routine cleaning and maintenance.

End of shaft
Max rotation speed
2000 rpm
60 ppr
Courant maximal par voie
500 mA
Rotor Diameter
50.8 mm
Diamètre stator
34.93 mm
72.9 mm
Température de fonctionnement
-40 to 100 °C
Contacts rotor
Connecteur standard
Contact Stator
Picots à souder


  • Wheatherproof connector
  • wiring
  • custom cable
  • spinning amplifiers
  • power supply unit
