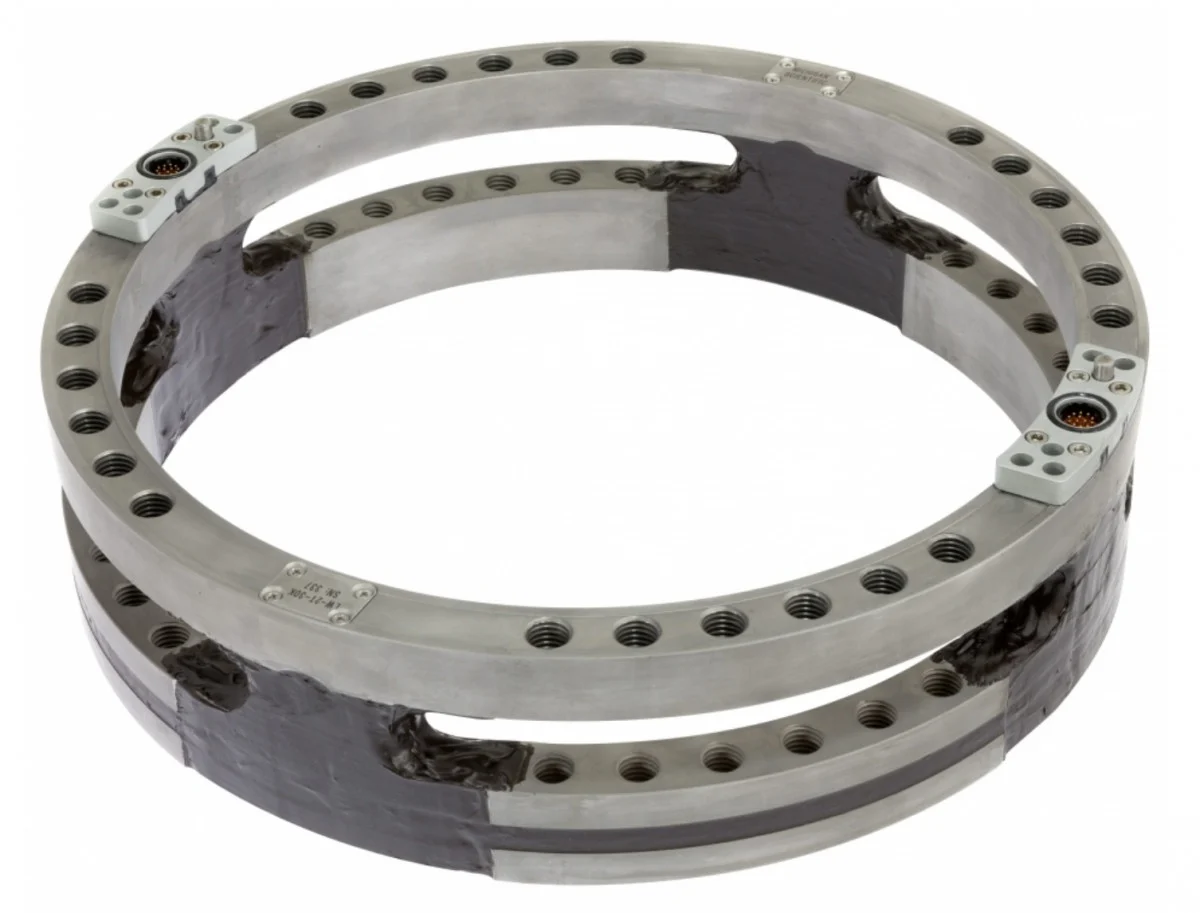

TW-2T-60K-S wheel torque transducer
Heavy-duty wheel torque transducer for class 8 trucks, agricultural and construction equipment, 81 kN·m (60,000 lbf·ft) full scale, measuring one tire or a dual-wheel set.
- 81 kN·m
- Torque capacity
- 19.5 in and larger
- Rim size
- ≤ 1 % FS
- Non-linearity
- Sensor4-arm strain gage bridge
- Hysteresis≤ 0.5 % FS
- Signal transmissionslip ring or telemetry
TW-2T-60K-S: heavy-duty wheel torque transducer, 81 kN·m
The TW-2T-60K-S is the 81 kN·m (60,000 lbf·ft) model of the heavy-duty wheel torque transducers; the TW-2T-50K is rated 67 kN·m. Its four-arm strain gage bridges measure all the drive and braking torque developed between the tire patch and the vehicle hub, for a single tire or a dual-wheel set; the maximum static vertical load is 6,100 kg (13,480 lb), against 4,500 kg for the TW-2T-50K. The stainless steel ring, Ø 469.9 mm (18.5 in), is waterproof, temperature compensated and adapts to 19.5 in and larger wheels. Non-linearity is 1 % of full scale or less and hysteresis below 0.5 %; it operates from −40 to 125 °C.
The ring has twenty-four Ø 17.5 mm (0.689 in) through holes on a Ø 435.6 mm (17.150 in) bolt circle, and a Ø 401.3 mm (15.800 in) center bore. Custom adapters duplicate the critical dimensions of the production wheel and place the tires on the production centerline.
It is suited to class 8 trucks, agricultural and construction equipment, and other large vehicles, on and off road, for drivetrain efficiency, brake system and anti-lock brake development, traction control and vehicle stability system design; the data serves component development, computer modeling and laboratory simulation and validation.
Specifications
| Torque capacity | 81 000 N·m |
|---|---|
| Max static load | 6 100 kg |
| Non-linearity | ≤ 1 % FS |
| Hysteresis | ≤ 0.5 % FS |
| High resolution | No |
| Sensing principle | Strain gage (4-arm bridge) |
| Shaft diameter | 401.3 mm (center bore) |
| Mounting fasteners | 24 × Ø 17.5 mm (through) |
| Bolt circle | 435.6 mm |
| Dimensions | Ø 469.9 mm |
| Operating temperature | −40 to 125 °C |
| Vehicles | Class 8 trucks · Agricultural equipment · Construction equipment |
| Rim size | 19.5 in (and larger) |
