LW-2T-50K wheel force transducer
Six-axis wheel force transducer for class 8 trucks, 222 kN radial and 111 kN lateral, in stainless steel, for 19.5 in and larger single or dual wheels, with slip ring.
- 222 kN
- Fx, Fz capacity
- 111 kN
- Fy capacity
- 68 kN·m
- Moment capacity
- ≤ 1 % FS
- Non-linearity
- OutputsFx Fy Fz · Mx My Mz
- Also measuredX and Z acceleration (X, Y, Z on the LW50 and LW55) · wheel speed and angle
- Signal outputanalog · CAN · Ethernet · CAN FD and EtherCAT on the CT3
- Signal transmissionslip ring or telemetry

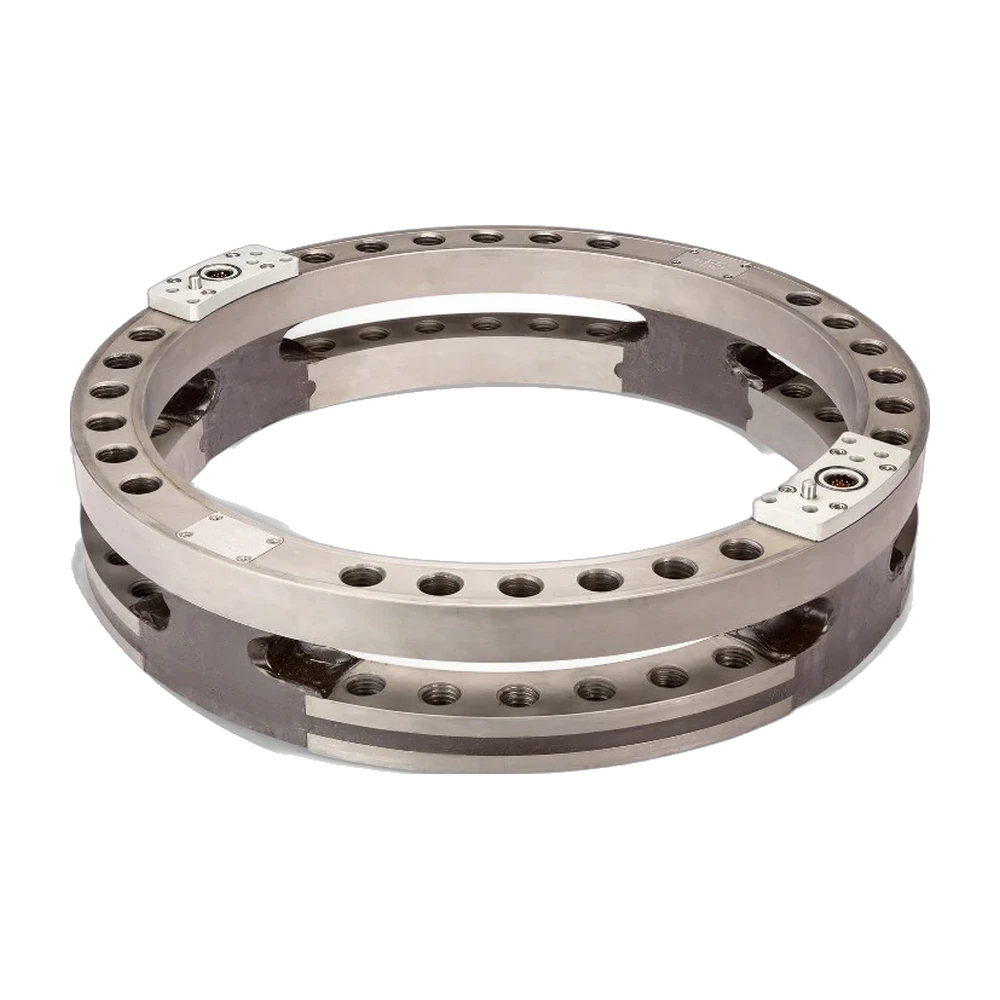

LW-2T-50K: heavy-duty wheel force transducer, 222 kN
The LW-2T-50K measures all the wheel forces and moments on class 8 trucks. Four-arm strain gage bridges give independent signals for the vertical, lateral and longitudinal forces, up to 222 kN radial (Fx, Fz) and 111 kN lateral (Fy) at the tire patch, and for the camber, steer and torque moments, 68 kN·m each. Non-linearity, hysteresis and crosstalk after correction are within 1 % of full scale. The stainless steel transducer is environmentally protected and temperature compensated, and operates from −40 to 125 °C. Its matching amplifier package adds X and Z accelerations, an encoder resolving 0.17° and remote shunt calibration.

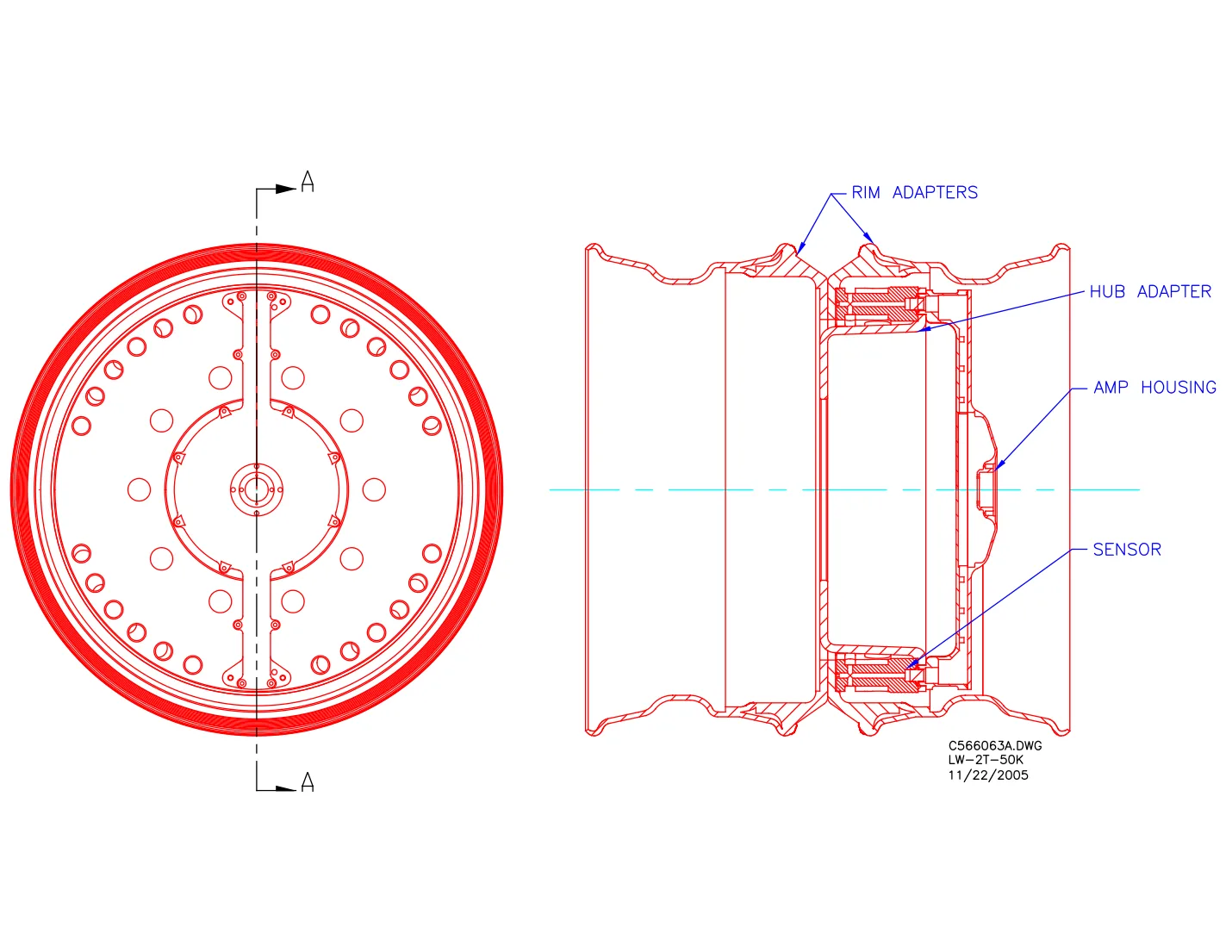

The manual covers single and dual-wheel assemblies. Twenty-four ¾-10 bolts join the transducer to each adapter, tightened to 339 N·m; on dual wheels, the inner and outer rim adapters share the same bolts and stand-offs carry the amplifier bar. The matched amplifier and slip ring mount after the wheel nuts. A restraint rod to a magnetic bracket holds the slip ring stator, or the stator angle correction device on steered wheels. The CT3 interface box, powered at 9 to 36 V DC, runs the shunt calibration check and the zero.
It is used for on-road and off-road measurements, one transducer measuring the combined loads of a dual wheel set or a single tire, and also to monitor and control laboratory tests. On large farm equipment, it serves durability, vehicle dynamics and handling tests.
Specifications
| Measured quantities | Fx · Fy · Fz · Mx · My · Mz |
|---|---|
| Force capacity | Fx 222 · Fy 111 · Fz 222 kN |
| Moment capacity | Mx 68 000 · My 68 000 · Mz 68 000 N·m |
| Max static load | 4 540 kg |
| Non-linearity | ≤ 1 % FS |
| Hysteresis | ≤ 1 % FS |
| Crosstalk | ≤ 1 % FS (after correction) |
| Angle resolution | 0.17° |
| Axes | 6 |
| Sensing principle | Strain gage (4-arm bridges) |
| Accelerometer range | 55 g |
| Output | Analog voltage · CAN · CAN FD · Ethernet · EtherCAT (CT3; EtherCAT with an add-on module) |
| Signal transmission | Slip ring |
| Material | Stainless steel |
| Operating temperature | −40 to 125 °C |
| Interface box | CT3 |
| Vehicles | Class 8 trucks |
| Rim size | 19.5 in (and larger, single or dual) |
Used with the LW-2T-50K
What you add here goes into the same quote request.
-
Measure on a steered wheel
SAC stator angle corrector
Corrects the rotation angle signal in real time for the coordinate transformation, with no over-the-wheel bracket. Internal encoder accuracy ≤ 0.25°, IP67.
Slip ring versions, with the CT3 interface box.
