Ref: CT500
High dynamic 3 Axis Load Cell for crash barrier
- High dynamic 3D load cell
- Measuring Range Fxy: +/- 125 kN
- Measuring Range Fz: +/- 500 kN
- Nonlinearity: < +/- 0.5 % FSO
- Dimensions: 124mm x 124mm x 130mm
- Housing: Stainless Steel IP66
- Operating temperature range: -40°C à +125°C
- Electrical connection : MIL Connector
- ISO-17025 calibration certificate
?
Presentation
CT500 3 axis load cell is a new high capacity 3D load cell designed for applications demanding a high time response, like crash test / impact measuring. With a standard 124mm x 124mm size, it can easily be assembled to build an impact measuring panel.
The nominal load of +/-500kN on each axis can be changed on demand.
High grade stainless steel or aluminum material, in addition to weatherproof sealing, combine to provide excellent resistance to corrosion and environmental conditions. Temperature compensation of the transducers ensures stable output throughout a wide temperature range.
Installation
Load cell mounting plates, cables and DAQ system can be provided if needed.

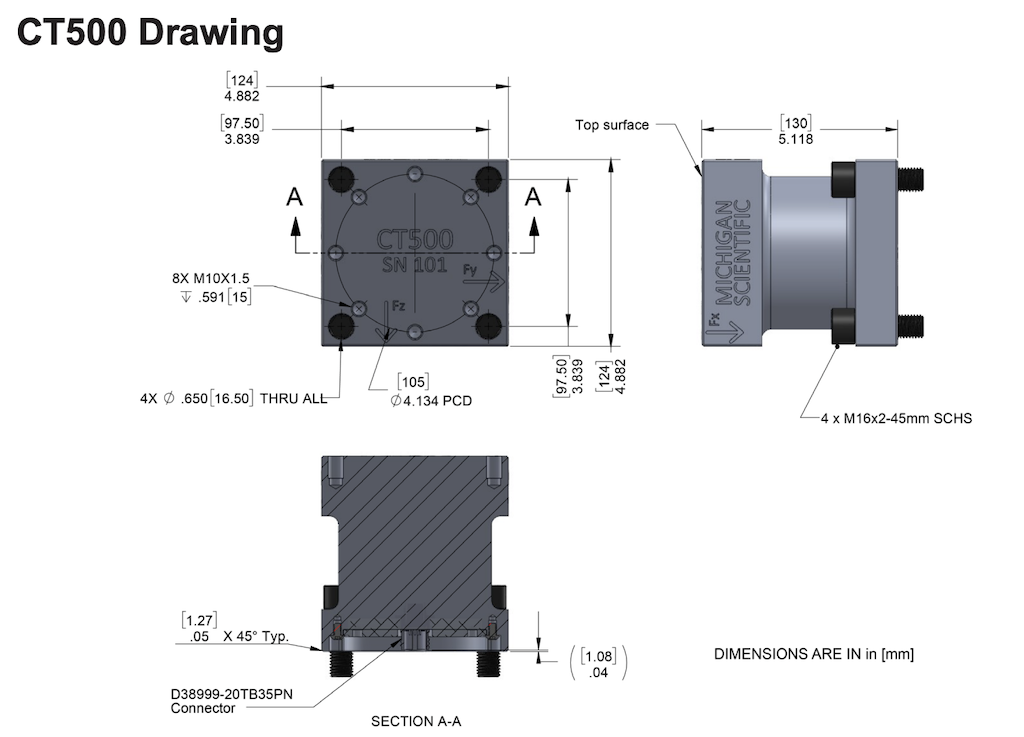

Dimensions
Applications
- Impact testing
- Vehicle testing
- Crash test
- Type
- beam sensor
- Number of Axis
- 3 Axis
- Measuring Range (Force)
- 100 N - 1.000 N, 1 kN - 10 kN, 10 kN - 100 kN
- Measuring Range (Torque)
- not available
- Nonlinearity (% FS)
- ± 0.5 %
- Hysteresis
- 0.5 % FS
- Zero Balance
- 0.2 %PE/°C
- Output Signal
- 3.5 , 4.5 mV/V
- Tension d'alimentation
- 10 Vcc
- Protection Class
- IP65
- Housing
- Steel
Instrumented-Crash-Barrier-System.pdf
- Connectors and optional cable length may be specified by the customer
- Custom wiring (cable length, connectors)
- Data acquisition system
- Encoder / Amplifier (with or without display)
