Ref: LW-2T-60K-S

6 Axis Wheel Force Transducer - 300 kN - Class 8 Trucks

  • 300 kN radial load capacity
  • 150 kN lateral capacity at tire patch
  • Up to 81 kN-m moment capacity
  • Provides 3 moment and 3 force measurements
  • Measures X & Z accelerations
  • Monitors combined loads of one or two tires
  • Adapts to 20 inch and larger wheels
  • Environmentally protected
  • Temperature compensated
  • Rugged stainless steel construction

Download the product sheet

?

Presentation

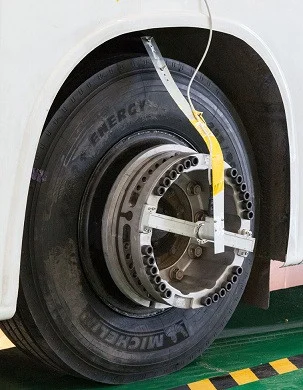

The LW-2T-60K-S Wheel Force Transducers (WFT) is used to measure forces and moments on class 8 trucks and large off-road vehicles. It provides independent output signals for vertical, lateral, and longitudinal forces as well as camber, steer and torque moments. Being completely weatherproof, it's are ideal for on-road and off-road measurements in all conditions.

Specification

Spécification LW-2T-60K-S
Capacité Fx/Fy 300 kN
Capacité Fz 150 kN
Capacité Mx/My/Mz 81 kN/m
Accélération +/- 55g

Signal processing and data transmission

The transducer ** LW-2T-60K-S** outputs :

  • 3 forces
  • 3 moments
  • 2 accelerations X and Z
  • wheel speed and position

Both analog and CAN output are offered. The raw signals are amplified in the amplifier mounted on the transducer, then sent to the conditionning module CT2 through the slip ring assembly.

Amplifier and Slip Ring Package: CT2 Transducer Interface Box:
Internal X & Z accelerometers Performs real-time coordinate transformation and crosstalk compensation
High resolution encoder for position & speed measurement Easy to use Zero, Shunt Calibration, and Bridge Power Off functions
Internal smart chip contains all calibration, zero, & shunt values Simultaneous Analog, CAN, & Ethernet signal outputs
Provides signal conditioning & amplification to the transducer strain gage signals Embedded web page enables user to change set-up options, move WFT measurement origin, view transducer static values, create .dbc file
Digitizes Transducer, Encoder, & Accelerometer signals
Supports slip ring
Transducer + amplifier and slip ring Conditionning module CT2
Capteur + AMP et Slip Ring CT2

Installation and Data transmission

The matching Amplifier / Slip Ring package easily mounts onto the transducer. It amplifies and digitizes the transducer signals before they pass through the slip ring. Le capteur LW-2T-60K-S se monte sur le véhicule par l'intermédiaire d'une jante spécifique, en configuration simple ou double.

Single rim wheel Twin rim wheel double
Simple Double

Systeme configuration and setp is completely done within a simple webbrowser on a PC or laptop connected to the CT2 over LAN. no additional Software is needed. Web interface

Applications

  • Vehicle dynamics
  • durability testing
  • Performance and drive behaviour assessment

Le système est disponible à la vente ou à la location. For any question, do not hesitate to contact our application engineers: contact

Installation and Data transmission

The matching Amplifier / Slip Ring package easily mounts onto the transducer. It amplifies and digitizes the transducer signals before they pass through the slip ring.

Application
Heavy-duty - Tractor
Number of Axis
6 Axis
Force Capacity [Fx, Fz]
300000 N
Force Capacity [Fy]
150000 N
Moment capacity
81000 Nm
Nonlinearity (% FS)
± 1 %
Hysteresis
0.5 % FS
Tension d'alimentation
10 Vcc

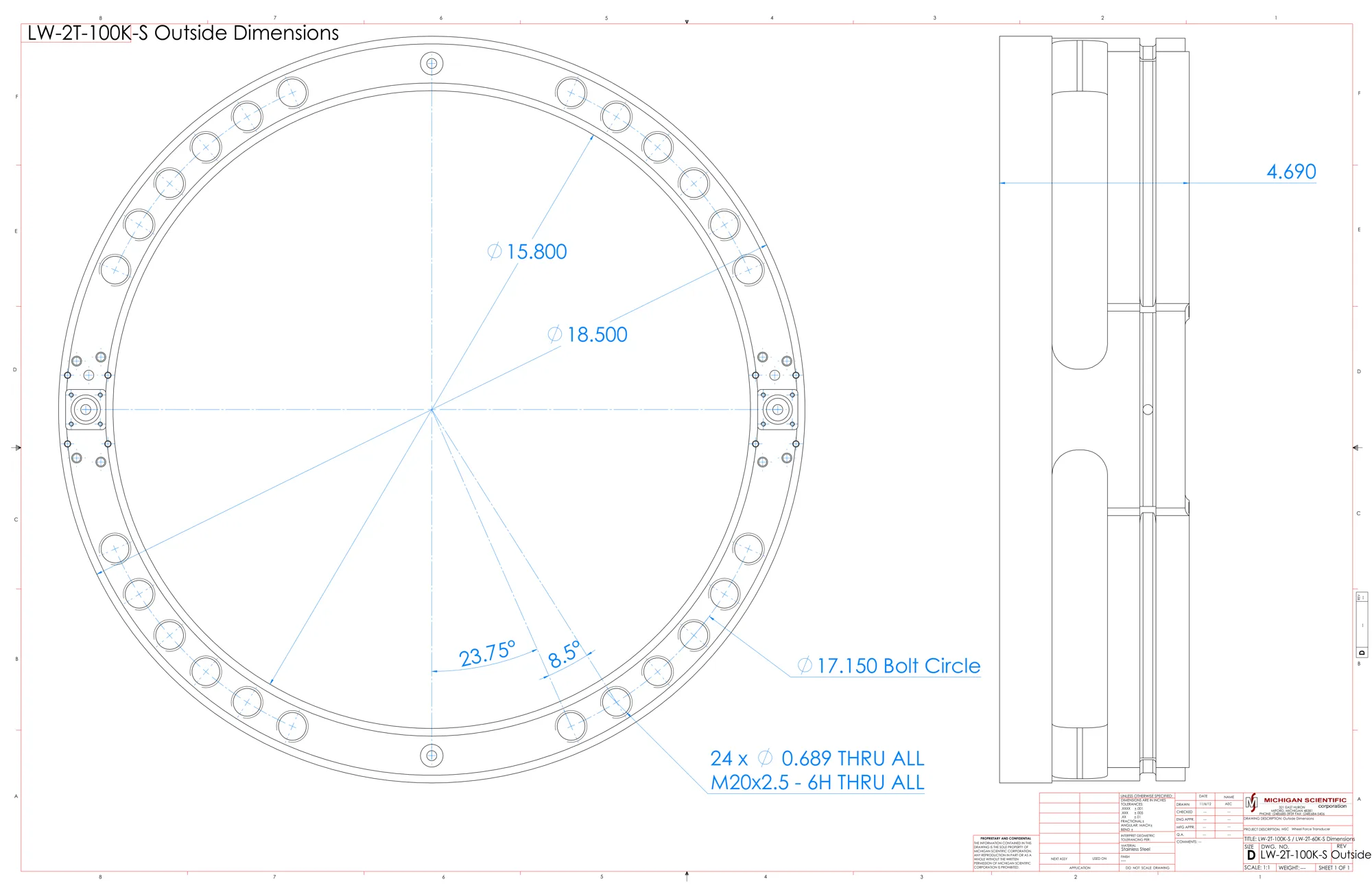

  • Hub Size (Pitch Circle Diameter): ≤ 13”
  • Rim Size: ≥ 20”
  • Special Units for high temperature applications
  • Custom designs with alternative output sensitivities / load capacities
  • Weatherproof Slip Ring
  • Encoder / Amplifier (with or without display)
