Strain gage services

Strain gages applied to components and structures in the Michigan Scientific workshop. Data acquisition, processing and reporting on request.

Strain gage bonded to a metal part, with its lead wires

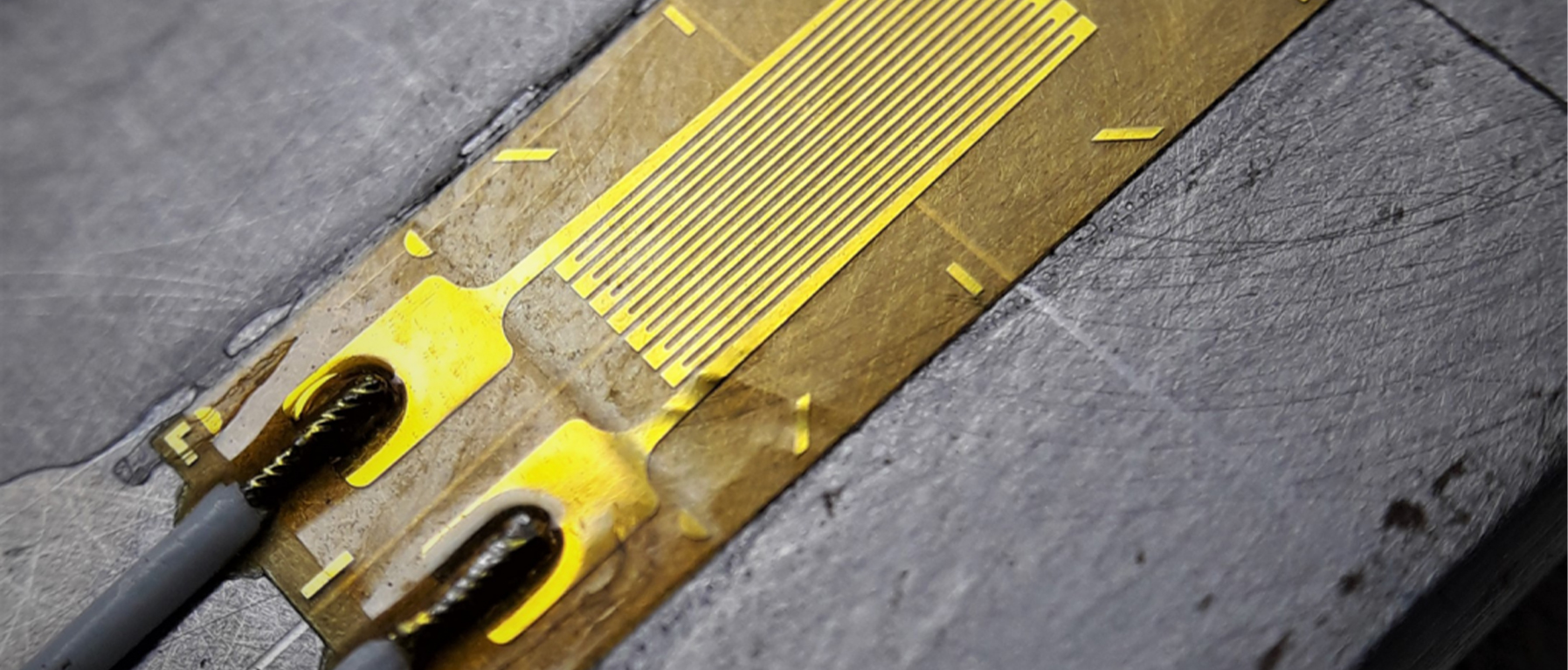

A strain gage bonded to a part.

In brief

Strain gaging is used in product development, component testing and structural analysis. The gages are bonded to the part, which keeps its strength and integrity. Gaged parts range from circuit boards to the 406 mm (16 in) drive shaft of a ball mill, including deep bores.

152 mm
maximum deep-bore gaging depth (6 in)
12.7 mm
minimum bore diameter for deep-bore gaging (0.5 in)

Parts gaged

Structural beamsDeflection and stress
Printed circuit boardsStress monitoring
Thermal chamber door panelDeformation during manufacturing
Ball mill drive shaft, cement plant, 406 mm (16 in)Torque, acceleration and rotational speed
Solid axlesDeep-bore gaging
Bores of 12.7 mm (0.5 in) or moreDeep-bore gaging, up to 152 mm (6 in) deep
Gearbox componentsComponent gaging

Data acquisition and reporting

Diagram of an off-road vehicle with its measurement points: wheel forces, strut forces, tie rod forces, drive shaft torque, steering torque and angle
Measurement points on an instrumented vehicle.
  1. 01

    Gaging

    Strain gages are applied to the component or the structure in our workshop.

  2. 02

    Acquisition

    Data is recorded during the test, during manufacturing or in service.

  3. 03

    Processing and analysis

    The recorded data is processed and analysed.

  4. 04

    Report

    The results are delivered in a report.

Gaged part or custom transducer

A gaged part measures strain; once calibrated, it measures load. When the part has to become a calibrated measuring instrument, with its certificate, it is a custom transducer.

Strain gage serviceGages applied to your component or structure. Data acquisition and analysis on request.
Custom transducerYour production part strain gaged and calibrated as a force or torque transducer.
