Brake testing
Disc and hub temperatures, brake torque, wheel forces and pedal force, measured while the vehicle brakes.
A brake test combines measurements on rotating parts (disc, hub, wheel) with measurements in the cabin (pedal). The signals are taken on the vehicle, on the road or on the bench.
slip rings · WTT
What do you need to measure while braking?
From disc temperature to pedal force. Each application shows the mounting on the vehicle, the instruments and the signals recorded.
-
Efficiency Brake drag and rolling resistance Low drag torques at the wheel, read on the road with a resolution of 0.14 N·m on cars and SUVs. Discover -
Temperature Temperature on rotating parts The temperature of a bearing, a compressor or a brake rotor, read while the part rotates under load. Discover -
Temperature Brake disc temperature Disc and hub temperatures read on the turning wheel, through a wheel slip ring or a telemetry package. Discover -
Brakes Brake pedal force The force the driver puts on the brake pedal, read up to 2 200 N on the series pedal. Discover -
Tires Tire-road friction Tire and road surface forces measured in three directions on a traction fixture, to find the coefficient of friction. Discover
Brake testing, in short
What is measured in a brake test?
A brake test measures five things: the temperature of the disc and the hub, the brake torque at the wheel, the forces between the tire and the road, the force on the pedal, and the wheel speed.
Each one has its transducer. They are often recorded together on the same vehicle.

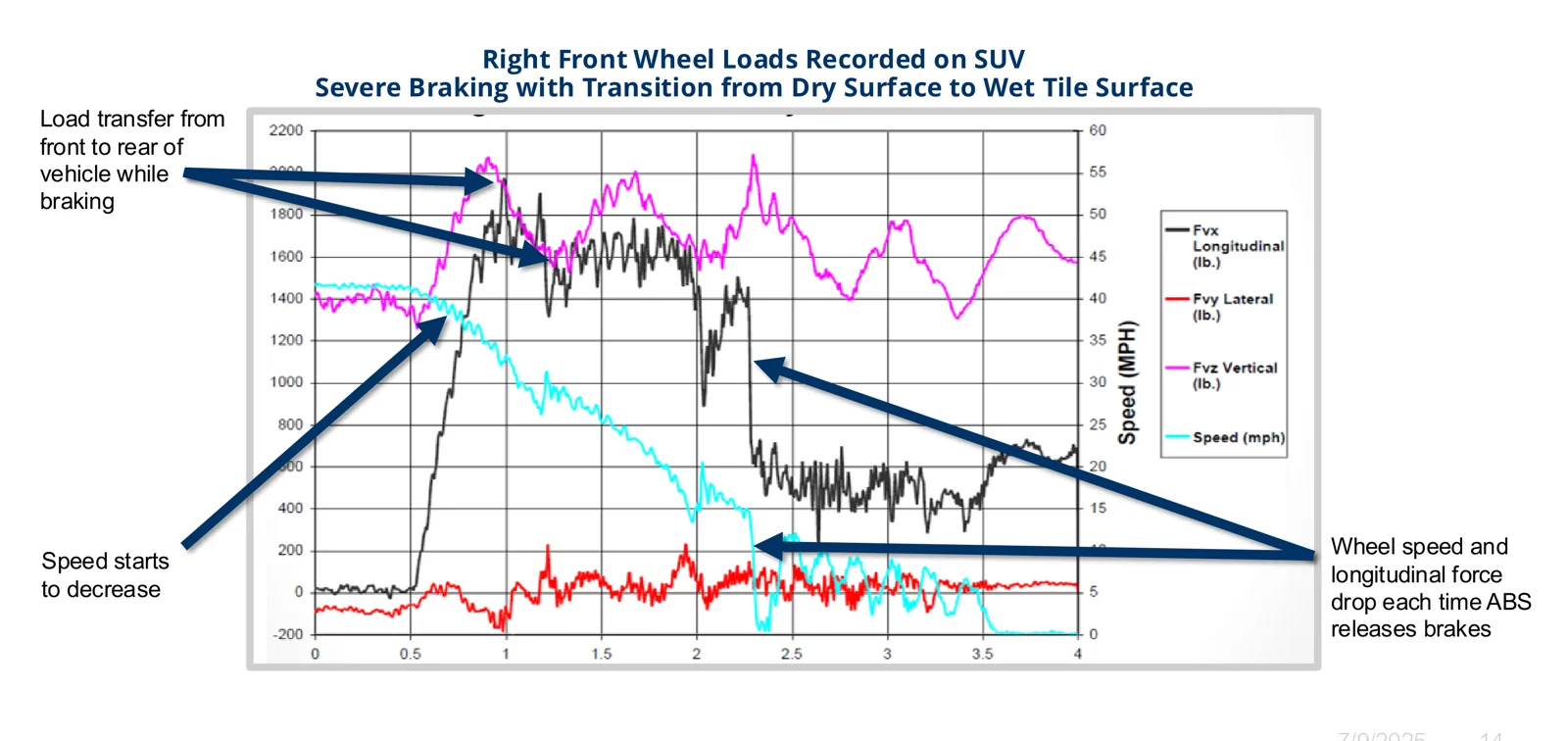

What does a wheel force transducer show during ABS braking?
The load transfer from the rear to the front wheels, and the longitudinal force and the wheel speed dropping each time the ABS releases the brake.

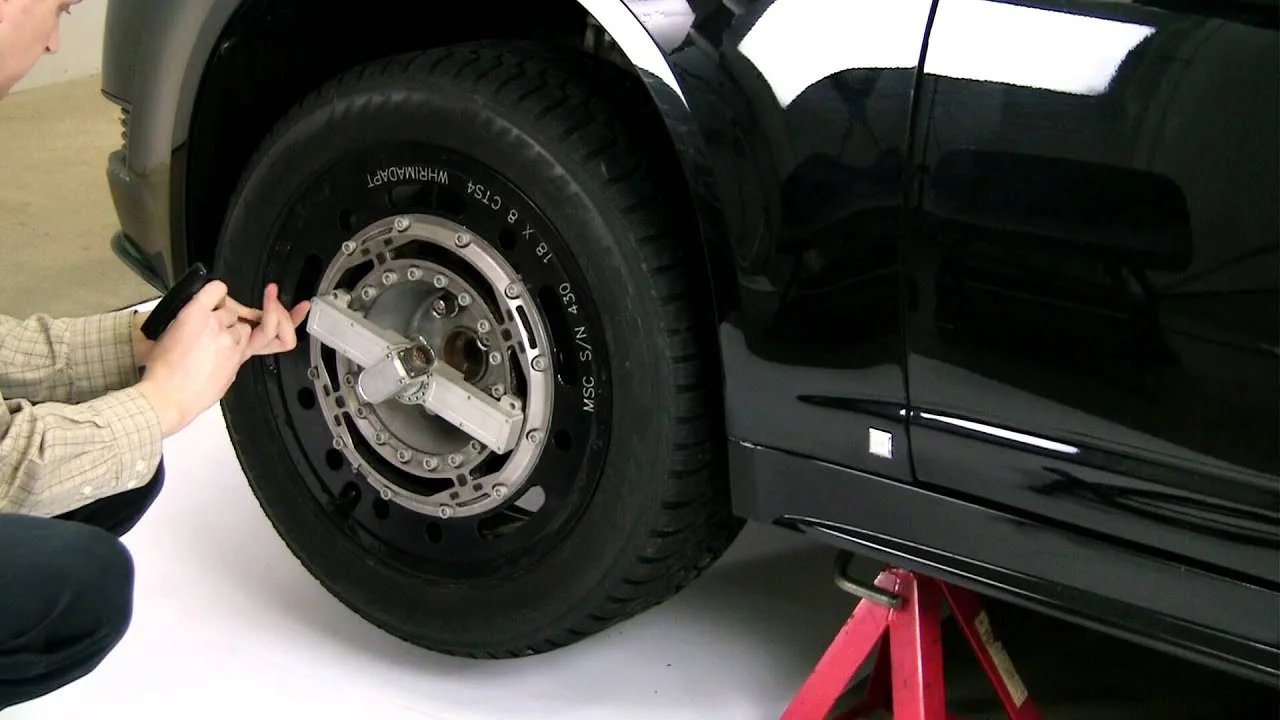

The recording below was made on the right front wheel of an SUV, in a severe stop with a transition from a dry surface to a wet tile surface.
The instruments behind these applications
The products these applications cite most. Each one can be rented or bought on its own.
-

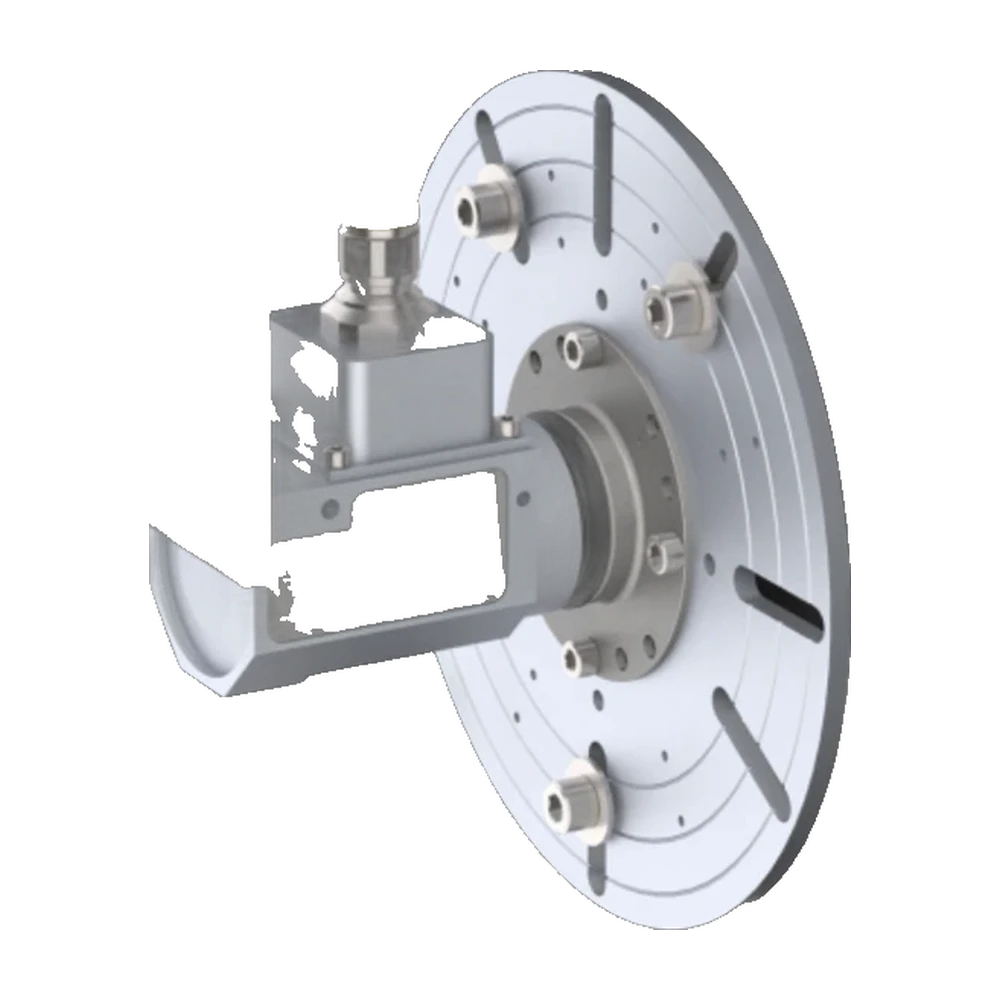

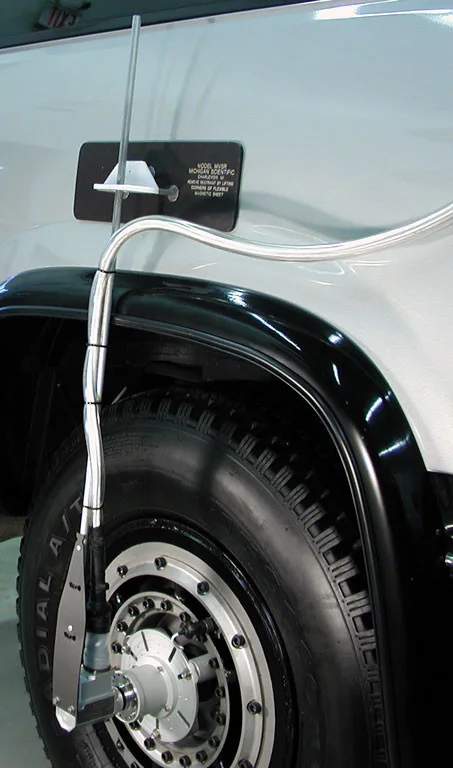

Product · 3 applications Wheel Instrumentation System Slip ring on the wheel, for brake and wheel temperatures. Discover -
Product family · 2 applications Wheel torque transducers The full range, 237 N·m to 81 kN·m. Discover -
Product · 2 applications Wheel Pulse Transducer Wheel speed and distance during the run. Discover -

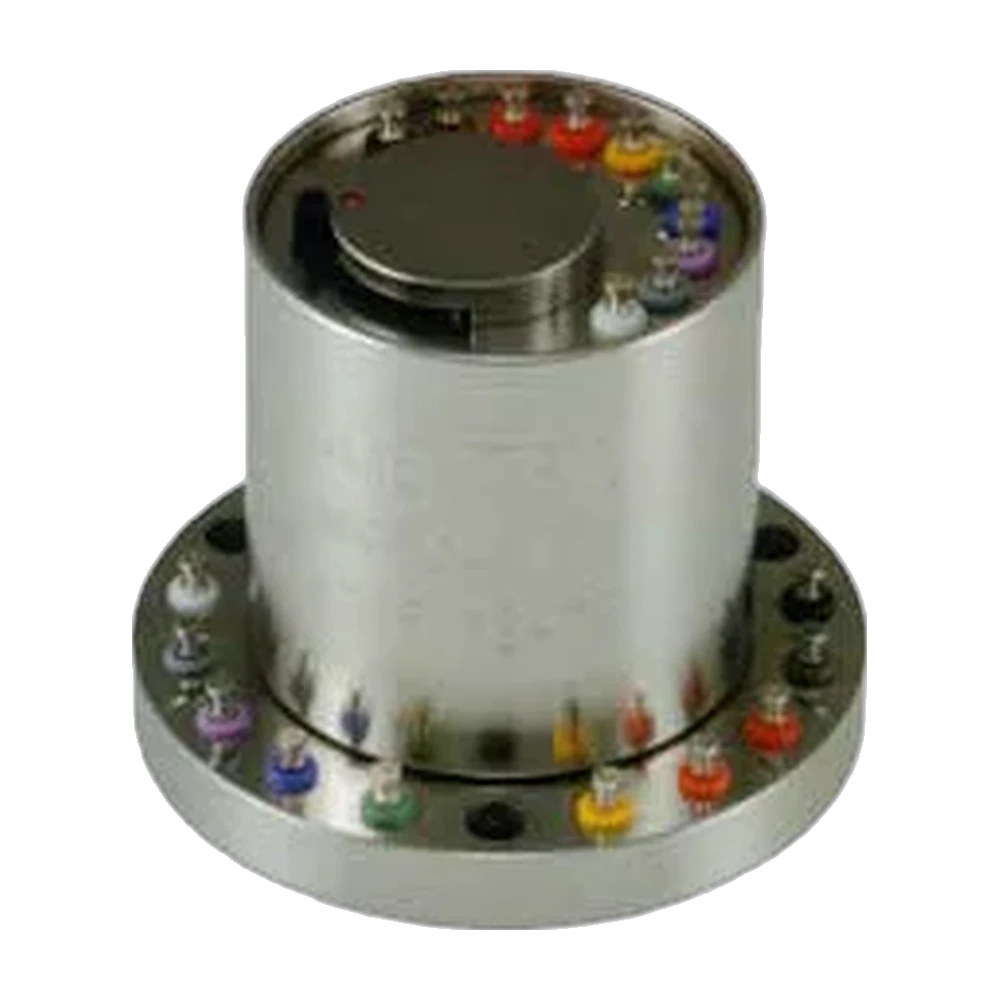

Product family · 2 applications Slip ring assemblies For more thermocouples, up to 36 circuits. Discover
Brake testing, frequent questions
How are disc and hub temperatures read while the wheel turns?
With thermocouples fixed to the disc and the hub, amplified on the rotating side and routed through a slip ring package bolted to the vehicle's own wheel.

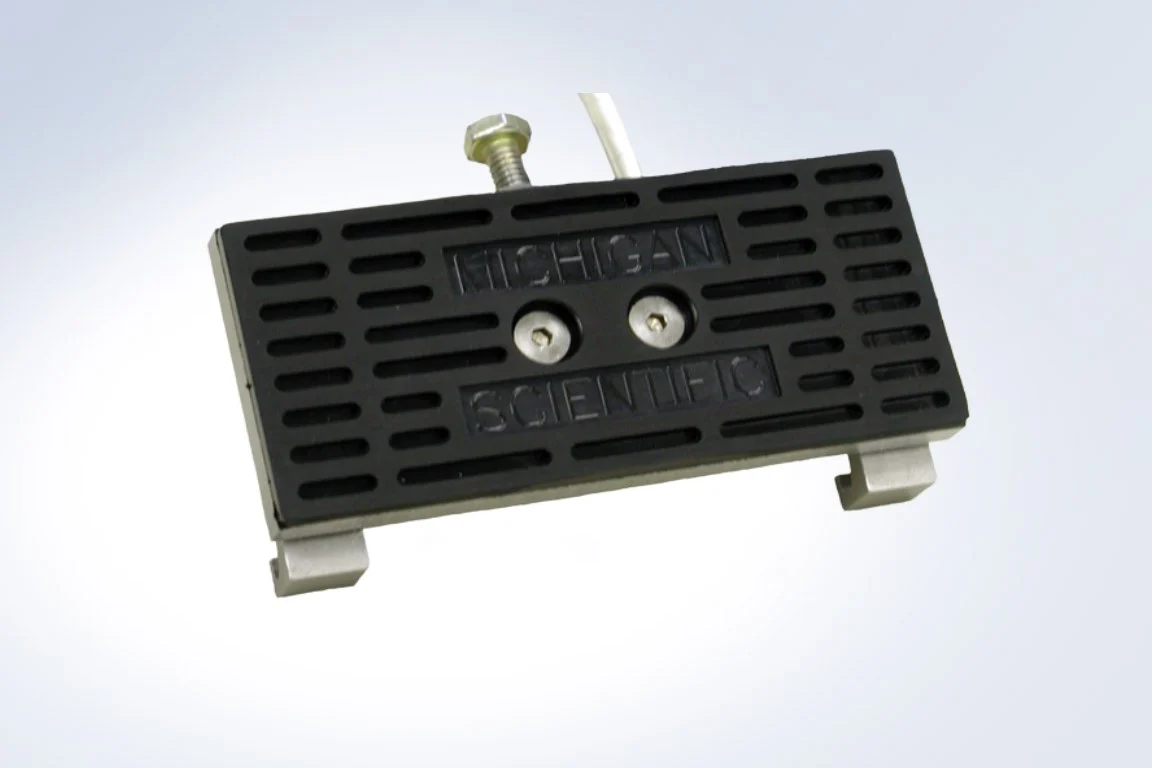

Does the pedal force transducer change the pedal?
No. It goes on the original pedal once the rubber pad is removed, held by a single bolt, and reads the same force whether the foot presses on center or off center. Capacity 2 200 N.
Can the equipment be rented for a brake test campaign?
Yes. Wheel force and torque transducers are available for rental, with adapters, calibrated before shipping.
