TR3D three-axis load cells
Forces in three perpendicular directions from one compact body, in the field or on the bench.

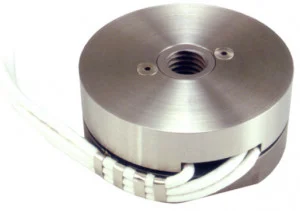

Round body. Thread M12 × 1.75. TR3D-A-1K: Datasheet PDF
Round body. Thread M12 × 1.75. TR3D-A-3K: Datasheet PDF
Round body. Thread M12 × 1.75. TR3D-A-5K: Datasheet PDF
Round body. Thread M12 × 1.75. TR3D-A-5/5/10K: Datasheet PDF
Round body, larger than the other TR3D-A models. Thread M18 × 2.5. TR3D-A-10K: Datasheet PDF
Square body. Thread M6 × 1.0. TR3D-B-250: Datasheet PDF
Square body. Thread M6 × 1.0. TR3D-B-1K: Datasheet PDF

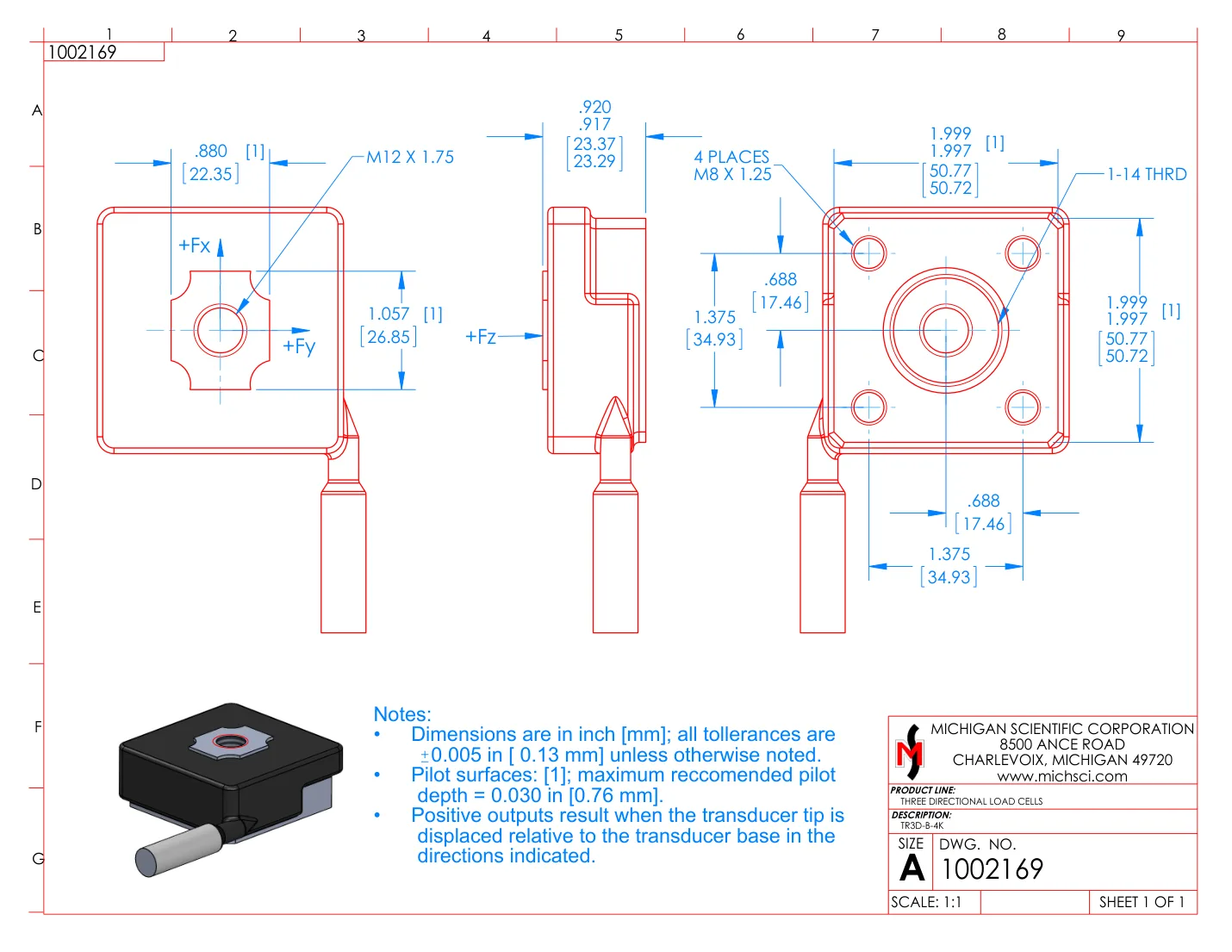

Square body. Thread M12 × 1.75. TR3D-B-4K: Datasheet PDF
Square body. Thread M12 × 1.75. TR3D-B-4500: Datasheet PDF
Square body. Thread 5/8-18, or M16 × 2 on the -M16 and -M16T versions. TR3D-B-5/5/10K: Datasheet PDF
Square body. Thread M24 × 3.00. TR3D-B-16K: Datasheet PDF

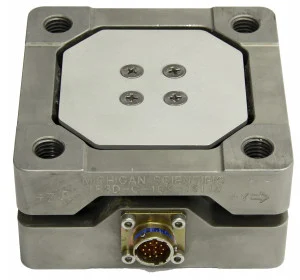

Square, fatigue rated body. Thread 4 × M10 × 1.5. TR3D-C-10K: Datasheet PDF
Square, fatigue rated body. Thread 4 × M12 × 1.75. TR3D-C-16K: Datasheet PDF
Square, fatigue rated body. Thread 4 × M20 × 2.5. TR3D-C-40K: Datasheet PDF

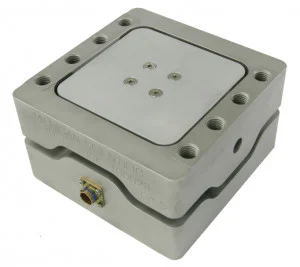

Square, fatigue rated body. Thread 16 × M16 × 2. TR3D-D-50K: Datasheet PDF
Square, fatigue rated body. Thread 16 × M16 × 2. TR3D-D-100K: Datasheet PDF
- 4.4 kN
- Measuring range per axis
- 40 N·m
- Max moment per axis
- 4 mV/V
- Output
- Ø 59 × 25 mm
- Dimensions
- 13.3 kN
- Measuring range per axis
- 215 N·m
- Max moment per axis
- 4 mV/V
- Output
- Ø 59 × 25 mm
- Dimensions
- 22 kN
- Measuring range per axis
- 280 N·m
- Max moment per axis
- 4 mV/V
- Output
- Ø 59 × 25 mm
- Dimensions
- XY 22 kN · Z 44 kN
- Measuring range per axis
- 280 N·m
- Max moment per axis
- 4 mV/V
- Output
- Ø 59 × 25 mm
- Dimensions
- 44 kN
- Measuring range per axis
- 461 N·m
- Max moment per axis
- 2.5 mV/V
- Output
- Ø 76.2 × 38.1 mm
- Dimensions
- 1.1 kN
- Measuring range per axis
- 16 N·m
- Max moment per axis
- 3.5 mV/V
- Output
- 25.3 × 25.3 × 12.6 mm
- Dimensions
- 4.4 kN
- Measuring range per axis
- 65 N·m
- Max moment per axis
- 4.5 mV/V
- Output
- 25.3 × 25.3 × 12.6 mm
- Dimensions
- 17.7 kN
- Measuring range per axis
- 220 N·m
- Max moment per axis
- 4.5 mV/V
- Output
- 50.7 × 50.7 × 23.3 mm
- Dimensions
- 20 kN
- Measuring range per axis
- 220 N·m
- Max moment per axis
- XY 2.6 · Z 4.0 mV/V
- Output
- 50.7 × 50.7 × 25.4 mm
- Dimensions
- XY 22 kN · Z 44 kN
- Measuring range per axis
- 520 N·m
- Max moment per axis
- XY 2.0 · Z 4.0 mV/V
- Output
- 43.2 × 43.2 × 27 mm
- Dimensions
- 71 kN
- Measuring range per axis
- 1 700 N·m
- Max moment per axis
- 4.5 mV/V
- Output
- 101.5 × 101.5 × 46.7 mm
- Dimensions
- 44 kN
- Measuring range per axis
- 1 200 N·m
- Max moment per axis
- 1.5 mV/V
- Output
- 76.2 × 76.2 × 41.9 mm
- Dimensions
- 71 kN
- Measuring range per axis
- 1 700 N·m
- Max moment per axis
- 1.5 mV/V
- Output
- 101.6 × 101.6 × 50.8 mm
- Dimensions
- 177 kN
- Measuring range per axis
- 9 500 N·m
- Max moment per axis
- 1.5 mV/V
- Output
- 152.4 × 152.4 × 76.2 mm
- Dimensions
- 222 kN
- Measuring range per axis
- 19 000 N·m
- Max moment per axis
- 1.5 mV/V
- Output
- 177.8 × 177.8 × 101.6 mm
- Dimensions
- 444 kN
- Measuring range per axis
- 20 300 N·m
- Max moment per axis
- 1.25 mV/V
- Output
- 177.8 × 177.8 × 101.6 mm
- Dimensions
- Non-linearity, A and B< ± 0.5 % FSO
- Non-linearity, C and D< 1 % (X, Y) · < 2 % (Z)
- Excitation2.5 to 10 V DC
- Included3.05 m cable · calibration certificate
01 · The essential
Four bodies, one principle
TR3D-A is round, with one central M12 thread: 4.5 to 44 kN. TR3D-B is square and starts very small, 25 mm a side for 1.1 kN, up to 71 kN. Both are built for endurance tests.
TR3D-C and TR3D-D are fatigue rated, with identical bolt patterns on the top and bottom faces: 44 to 177 kN for C, 222 and 444 kN for D.

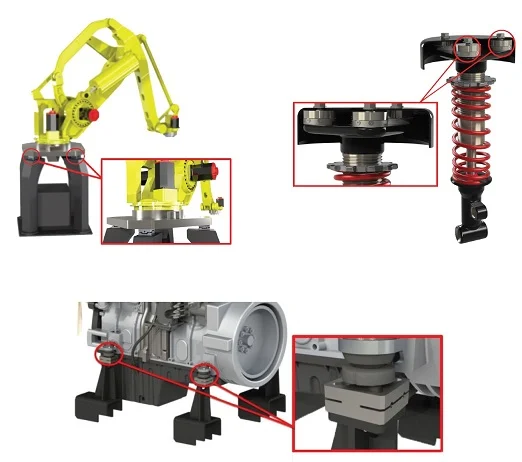

Stainless steel or aluminum, weatherproof sealing and temperature compensation keep the output stable in the field. The compact bodies fit into an existing part after modification, or between purpose-made flanges.
02 · Specifications
The numbers
| Range per axis | 4.4 kN |
|---|---|
| Max moment per axis | 40 N·m |
| Output | 4 mV/V |
| Dimensions (mm) | 59 x 25 |
| Thread | M12 x 1.75 |
| Non-linearity | ± 0.5 % |
| Hysteresis | ≤ 0.5 % FS |
| Protection | IP65 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 13.3 kN |
|---|---|
| Max moment per axis | 215 N·m |
| Output | 4 mV/V |
| Dimensions (mm) | 59 x 25 |
| Thread | M12 x 1.75 |
| Non-linearity | ± 0.5 % |
| Hysteresis | ≤ 0.5 % FS |
| Protection | IP65 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 22 kN |
|---|---|
| Max moment per axis | 280 N·m |
| Output | 4 mV/V |
| Dimensions (mm) | 59 x 25 |
| Thread | M12 x 1.75 |
| Non-linearity | ± 0.5 % |
| Hysteresis | ≤ 0.5 % FS |
| Protection | IP65 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | XY 22 kN · Z 44 kN |
|---|---|
| Max moment per axis | 280 N·m |
| Output | 4 mV/V |
| Dimensions (mm) | 59 x 25 |
| Thread | M12 x 1.75 |
| Non-linearity | ± 0.5 % |
| Hysteresis | ≤ 0.5 % FS |
| Protection | IP65 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 44 kN |
|---|---|
| Max moment per axis | 461 N·m |
| Output | 2.5 mV/V |
| Dimensions (mm) | 76.2 x 38.1 |
| Thread | M18 x 2.5 |
| Non-linearity | ≤ 1 % FS |
| Hysteresis | ≤ 1 % FS |
| Protection | IP65 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 1.1 kN |
|---|---|
| Max moment per axis | 16 N·m |
| Output | 3.5 mV/V |
| Dimensions (mm) | 25.3 x 25.3 x 12.6 |
| Thread | M6 x 1.0 |
| Cable length | 3.05m, shielded |
| Non-linearity | ± 0.5 % |
| Hysteresis | < 0.5 % FS |
| Zero Balance | 0.2 %PE/°C |
| Protection | IP65 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 4.4 kN |
|---|---|
| Max moment per axis | 65 N·m |
| Output | 4.5 mV/V |
| Dimensions (mm) | 25.3 x 25.3 x 12.6 |
| Thread | M6 x 1.0 |
| Cable length | 3.05m, shielded |
| Non-linearity | ± 0.5 % |
| Hysteresis | < 0.5 % FS |
| Zero Balance | 0.2 %PE/°C |
| Protection | IP65 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 17.7 kN |
|---|---|
| Max moment per axis | 220 N·m |
| Output | 4.5 mV/V |
| Dimensions (mm) | 50.7 x 50.7 x 23.3 |
| Thread | M12 x 1.75 |
| Cable length | 3.05m, shielded |
| Non-linearity | ± 0.5 % |
| Hysteresis | < 0.5 % FS |
| Zero Balance | 0.2 %PE/°C |
| Protection | IP65 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 20 kN |
|---|---|
| Max moment per axis | 220 N·m |
| Output | XY: 2.6 mV/V, Z: 4.0 mV/V |
| Dimensions (mm) | 50.7 x 50.7 x 25.4 |
| Thread | M12 x 1.75 |
| Cable length | 6.1m, shielded |
| Non-linearity | ± 0.5 % |
| Hysteresis | < 0.5 % FS |
| Zero Balance | 0.2 %PE/°C |
| Protection | IP65 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | XY 22 kN · Z 44 kN |
|---|---|
| Max moment per axis | 520 N·m |
| Output | XY: 2.0 mV/V, Z: 4.0 mV/V |
| Dimensions (mm) | 43.2 x 43.2 x 27 |
| Thread | 5/8-18 · M16 × 2 (-M16, -M16T) |
| Cable length | 3.05m, shielded |
| Non-linearity | ± 0.5 % |
| Hysteresis | < 0.5 % FS |
| Zero Balance | 0.2 %PE/°C |
| Protection | IP65 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 71 kN |
|---|---|
| Max moment per axis | 1 700 N·m |
| Output | 4.5 mV/V |
| Dimensions (mm) | 101.5 x 101.5 x 46.7 |
| Thread | M24 x 3.00 |
| Cable length | 3.05m, shielded |
| Non-linearity | ± 0.5 % |
| Hysteresis | < 0.5 % FS |
| Zero Balance | 0.2 %PE/°C |
| Protection | IP65 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 44 kN |
|---|---|
| Max moment per axis | 1 200 N·m |
| Output | 1.5 mV/V |
| Dimensions (mm) | 76.20 x 76.20 x 41.91 |
| Weight (kg) | 1 |
| Thread | M10 x 1.5 |
| Non-linearity | ≤ 1 % FS (X, Y) · ≤ 2 % FS (Z) |
| Hysteresis | ≤ 2 % FS (X, Y) · ≤ 4 % FS (Z) |
| Zero Balance | 0.2 %PE/°C |
| Protection | IP40 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 71 kN |
|---|---|
| Max moment per axis | 1 700 N·m |
| Output | 1.5 mV/V |
| Dimensions (mm) | 101.6 x 101.6 x 50.8 |
| Weight (kg) | 2.2 |
| Thread | M12 x 1.75 |
| Non-linearity | ≤ 1 % FS (X, Y) · ≤ 2 % FS (Z) |
| Hysteresis | ≤ 2 % FS (X, Y) · ≤ 4 % FS (Z) |
| Zero Balance | 0.2 %PE/°C |
| Protection | IP40 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 177 kN |
|---|---|
| Max moment per axis | 9 500 N·m |
| Output | 1.5 mV/V |
| Dimensions (mm) | 152.4 x 152.4 x 76.20 |
| Weight (kg) | 7.5 |
| Thread | M20 x 2.5 |
| Non-linearity | ≤ 1 % FS (X, Y) · ≤ 2 % FS (Z) |
| Hysteresis | ≤ 2 % FS (X, Y) · ≤ 4 % FS (Z) |
| Zero Balance | 0.2 %PE/°C |
| Protection | IP40 |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 222 kN |
|---|---|
| Output | 1.5 mV/V |
| Dimensions (mm) | 177.80 x 177.80 x 101.60 |
| Weight (kg) | 17.5 |
| Thread | 16 x M16x2 |
| Non-linearity | ≤ 1 % FS (X, Y) · < 2 % FS (Z) |
| Hysteresis | < 0.5 % FS |
| Zero Balance | 0.2 %PE/°C |
| Protection | IP65 |
| Max moment per axis | 19 000 N·m |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
| Range per axis | 444 kN |
|---|---|
| Output | 1.25 mV/V |
| Dimensions (mm) | 177.80 x 177.80 x 101.60 |
| Weight (kg) | 17.5 |
| Thread | 16 x M16x2 |
| Non-linearity | ≤ 1 % FS (X, Y) · < 2 % FS (Z) |
| Hysteresis | < 0.5 % FS |
| Zero Balance | 0.2 %PE/°C |
| Protection | IP65 |
| Max moment per axis | 20 300 N·m |
| Axes | 3 Axis |
| Supply voltage | 10 V DC |
| Housing | steel |
| Operating temperature | −40 to 149 °C |
No 3D model for this version.
No drawing for this version.
03 · Configure
Request a quote
Pick the model and what goes with it. The summary becomes your quote request.
Nothing fits? we build the transducer around your part.
04 · Resources
Resources
Datasheets and manuals
Drawings
CAD models
Datasheets and manuals
Drawings
CAD models
Datasheets and manuals
Drawings
CAD models
Datasheets and manuals
Drawings
CAD models
Datasheets and manuals
Drawings
CAD models
Datasheets and manuals
Drawings
CAD models
Datasheets and manuals
Drawings
CAD models
Datasheets and manuals
Drawings
CAD models
Datasheets and manuals
Drawings
CAD models
Datasheets and manuals
Drawings
CAD models
Datasheets and manuals
Drawings
None for TR3D-B-16K.
CAD models
Datasheets and manuals
CAD models
Datasheets and manuals
CAD models
Datasheets and manuals
CAD models
Datasheets and manuals
Drawings
None for TR3D-D-100K.
CAD models
05 · Applications
Related applications
-
Suspension Suspension component loads How the wheel loads split between the suspension components and enter the chassis. -
Agriculture PTO torque and power The torque and speed that the tractor delivers to the implement, measured during real field work. -
Agriculture Combine harvester gearbox Torque, speed and temperature on the pulleys, gears and gearboxes of a combine, to find power losses. -

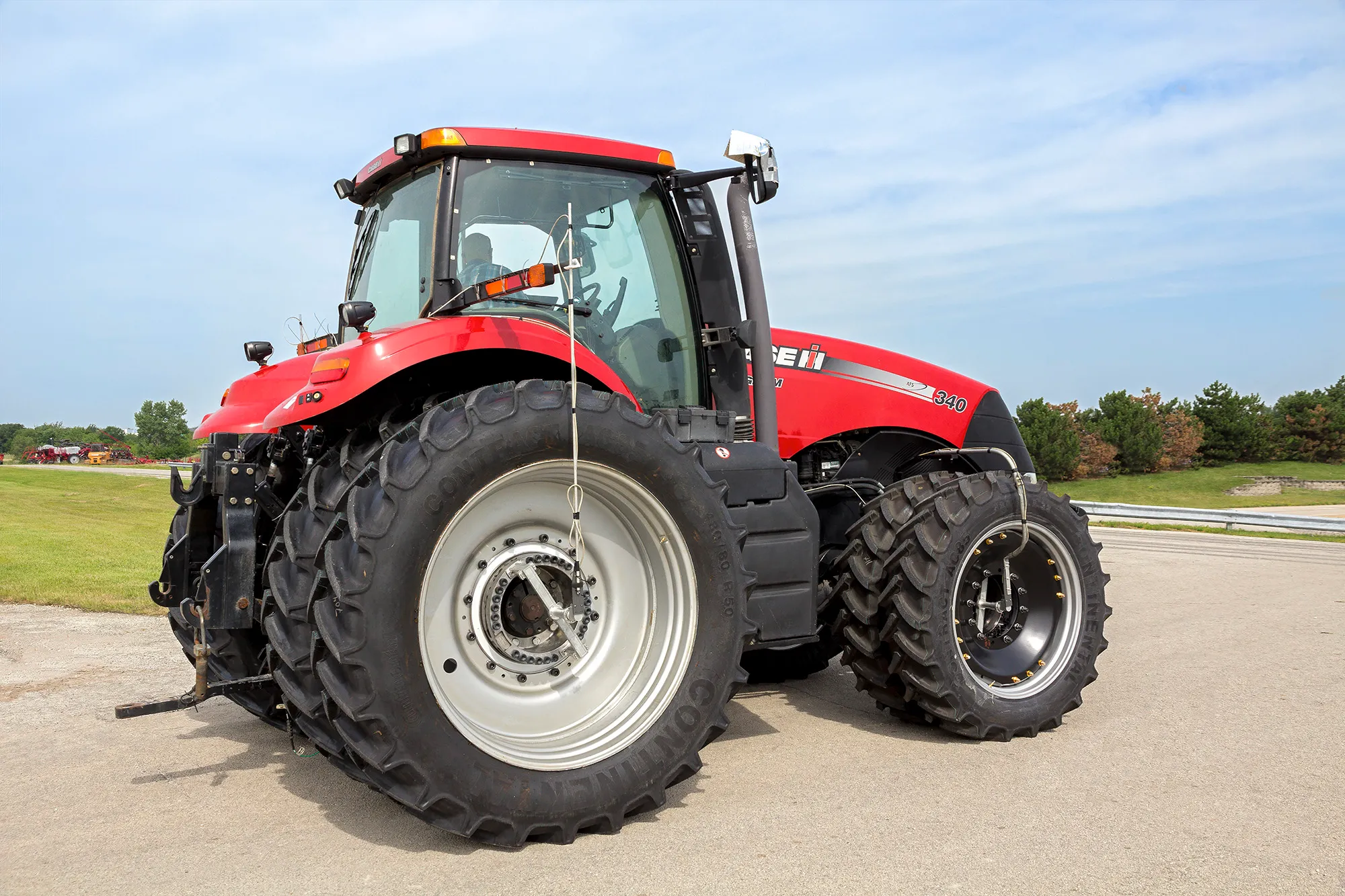

Agriculture Agricultural machinery Wheel loads, wheel torque, PTO power and forces on working parts, measured on the machine at work.
06 · Related
If three axes are not the answer

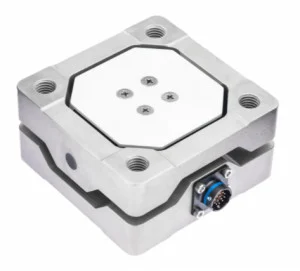

- Forces and moments TR6D-C-40K six-axis load cell
178 kN and 9.5 kN·m, fatigue rated.

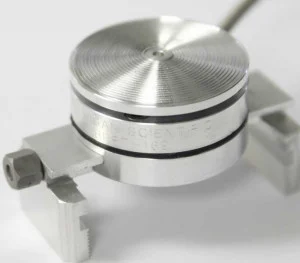

- Force on a pedal BPFT pedal force transducers
2 200 N on the series brake pedal.
- Your own part Custom transducers
The part itself, strain gaged and calibrated.
A question on this product?
Load range per axis, mounting, test type. An application engineer answers.
More details to give? Use the full contact form.
