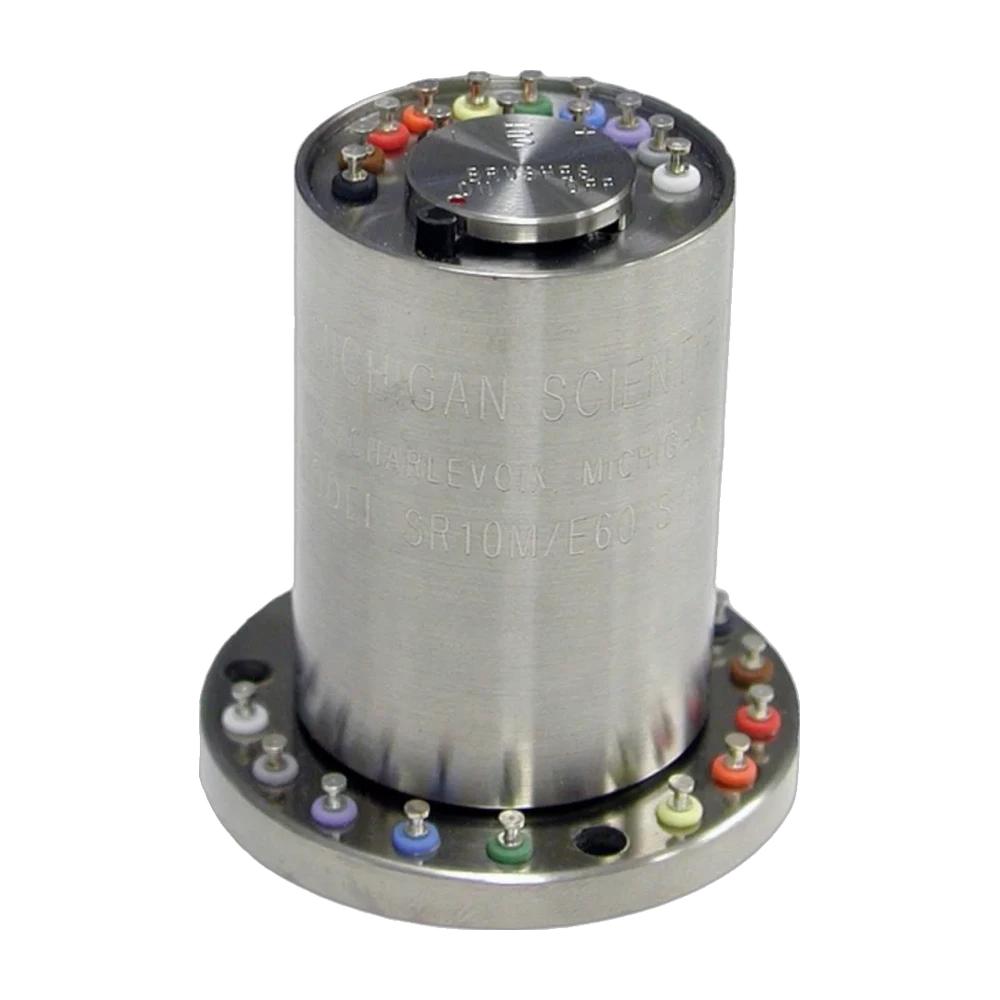

SR10M/E60/R slip ring
Sensor signals and shaft speed from one unit on the end of the shaft, up to 6 000 rpm.
SR10M/E60/R is the SR10M/E60 with: Rotor connection: Radial circular connector (R).
Model SR10M/E60
The 60 ppr encoder alone, without slip ring circuits. 50.8 mm rotor, sealed against dust. SR0M/E60: Datasheet PDF
The 60 ppr encoder alone, without slip ring circuits. 50.8 mm rotor, contacting rotary seals. SR0MW/E60: Datasheet PDF
The 60 ppr encoder alone, without slip ring circuits. 63.5 mm rotor, sealed against dust. SR0A/E60: Datasheet PDF
The 60 ppr encoder alone, without slip ring circuits. 63.5 mm rotor, contacting rotary seals. SR0AW/E60: Datasheet PDF
4 circuits and a 60 ppr encoder. 50.8 mm rotor, sealed against dust. SR4M/E60: Datasheet PDF
4 circuits and a 60 ppr encoder. 50.8 mm rotor, contacting rotary seals. SR4MW/E60: Datasheet PDF
4 circuits and a 60 ppr encoder. 63.5 mm rotor, sealed against dust. SR4A/E60: Datasheet PDF
4 circuits and a 60 ppr encoder. 63.5 mm rotor, contacting rotary seals. SR4AW/E60: Datasheet PDF
6 circuits and a 60 ppr encoder. 50.8 mm rotor, sealed against dust. SR6M/E60: Datasheet PDF
6 circuits and a 60 ppr encoder. 50.8 mm rotor, contacting rotary seals. SR6MW/E60: Datasheet PDF
6 circuits and a 60 ppr encoder. 63.5 mm rotor, sealed against dust. SR6A/E60: Datasheet PDF
6 circuits and a 60 ppr encoder. 63.5 mm rotor, contacting rotary seals. SR6AW/E60: Datasheet PDF
8 circuits and a 60 ppr encoder. 50.8 mm rotor, sealed against dust. SR8M/E60: Datasheet PDF
8 circuits and a 60 ppr encoder. 50.8 mm rotor, contacting rotary seals. SR8MW/E60: Datasheet PDF
8 circuits and a 60 ppr encoder. 63.5 mm rotor, sealed against dust. SR8A/E60: Datasheet PDF
8 circuits and a 60 ppr encoder. 63.5 mm rotor, contacting rotary seals. SR8AW/E60: Datasheet PDF
10 circuits and a 60 ppr encoder. 50.8 mm rotor, sealed against dust. SR10M/E60: Datasheet PDF
10 circuits and a 60 ppr encoder. 50.8 mm rotor, contacting rotary seals. SR10MW/E60: Datasheet PDF
10 circuits and a 60 ppr encoder. 63.5 mm rotor, sealed against dust. SR10A/E60: Datasheet PDF
10 circuits and a 60 ppr encoder. 63.5 mm rotor, contacting rotary seals. SR10AW/E60: Datasheet PDF
Common configurations SR10AW/E60/ASR10MW/E60/ASR10M/E60/RSR10MW/E60/R
- 0
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 0
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 72.9 mm · 213 g
- Length · weight
- 0
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 0
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 72.9 mm · 213 g
- Length · weight
- 4
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 4
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 72.9 mm · 213 g
- Length · weight
- 4
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 4
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 72.9 mm · 213 g
- Length · weight
- 6
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 6
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 72.9 mm · 213 g
- Length · weight
- 6
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 6
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 72.9 mm · 213 g
- Length · weight
- 8
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 8
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 72.9 mm · 213 g
- Length · weight
- 8
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 8
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 72.9 mm · 213 g
- Length · weight
- 10
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 10
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 72.9 mm · 213 g
- Length · weight
- 10
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 10
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 72.9 mm · 213 g
- Length · weight
- Max speed, weatherproof versions2 000 rpm
- Max current per circuit500 mA
- Stator diameter34.93 mm
01 · The essential
Slip ring and speed encoder in one
The unit mounts on the end of a shaft turning at up to 6 000 rpm. It connects strain gages, thermocouples or other rotating sensors through up to ten circuits, and gives pulses to measure rotational speed at the same time.
The encoder gives a 60 pulse per revolution square wave from 0 to 6 000 rpm. Pulses per second equal rpm, so speed reads directly on a frequency display, without scaling. For an analog speed signal, add Michigan Scientific's frequency-to-voltage encoder electronics.
A manual brush lifter takes the brushes off the rings when no signal is needed, so they do not wear while the shaft keeps turning. Weatherproof versions (SR_MW/E60) are limited to 2 000 rpm and are 72.9 mm long instead of 57.9 mm.
02 · Specifications
The numbers
| Circuits | 0 |
|---|---|
| Max speed | 6 000 rpm |
| Rotor diameter | 50.8 mm |
| Weatherproof | no |
| Seals | none, sealed against dust |
| Length | 57.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 0 |
|---|---|
| Max speed | 2 000 rpm |
| Rotor diameter | 50.8 mm |
| Weatherproof | yes |
| Seals | contacting rotary seals (W) |
| Length | 72.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 0 |
|---|---|
| Max speed | 6 000 rpm |
| Rotor diameter | 63.5 mm |
| Weatherproof | no |
| Seals | none, sealed against dust |
| Length | 57.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 0 |
|---|---|
| Max speed | 2 000 rpm |
| Rotor diameter | 63.5 mm |
| Weatherproof | yes |
| Seals | contacting rotary seals (W) |
| Length | 72.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 4 |
|---|---|
| Max speed | 6 000 rpm |
| Rotor diameter | 50.8 mm |
| Weatherproof | no |
| Seals | none, sealed against dust |
| Length | 57.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 4 |
|---|---|
| Max speed | 2 000 rpm |
| Rotor diameter | 50.8 mm |
| Weatherproof | yes |
| Seals | contacting rotary seals (W) |
| Length | 72.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 4 |
|---|---|
| Max speed | 6 000 rpm |
| Rotor diameter | 63.5 mm |
| Weatherproof | no |
| Seals | none, sealed against dust |
| Length | 57.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 4 |
|---|---|
| Max speed | 2 000 rpm |
| Rotor diameter | 63.5 mm |
| Weatherproof | yes |
| Seals | contacting rotary seals (W) |
| Length | 72.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 6 |
|---|---|
| Max speed | 6 000 rpm |
| Rotor diameter | 50.8 mm |
| Weatherproof | no |
| Seals | none, sealed against dust |
| Length | 57.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 6 |
|---|---|
| Max speed | 2 000 rpm |
| Rotor diameter | 50.8 mm |
| Weatherproof | yes |
| Seals | contacting rotary seals (W) |
| Length | 72.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 6 |
|---|---|
| Max speed | 6 000 rpm |
| Rotor diameter | 63.5 mm |
| Weatherproof | no |
| Seals | none, sealed against dust |
| Length | 57.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 6 |
|---|---|
| Max speed | 2 000 rpm |
| Rotor diameter | 63.5 mm |
| Weatherproof | yes |
| Seals | contacting rotary seals (W) |
| Length | 72.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 8 |
|---|---|
| Max speed | 6 000 rpm |
| Rotor diameter | 50.8 mm |
| Weatherproof | no |
| Seals | none, sealed against dust |
| Length | 57.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 8 |
|---|---|
| Max speed | 2 000 rpm |
| Rotor diameter | 50.8 mm |
| Weatherproof | yes |
| Seals | contacting rotary seals (W) |
| Length | 72.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 8 |
|---|---|
| Max speed | 6 000 rpm |
| Rotor diameter | 63.5 mm |
| Weatherproof | no |
| Seals | none, sealed against dust |
| Length | 57.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 8 |
|---|---|
| Max speed | 2 000 rpm |
| Rotor diameter | 63.5 mm |
| Weatherproof | yes |
| Seals | contacting rotary seals (W) |
| Length | 72.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 10 |
|---|---|
| Max speed | 6 000 rpm |
| Rotor diameter | 50.8 mm |
| Weatherproof | no |
| Seals | none, sealed against dust |
| Length | 57.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 10 |
|---|---|
| Max speed | 2 000 rpm |
| Rotor diameter | 50.8 mm |
| Weatherproof | yes |
| Seals | contacting rotary seals (W) |
| Length | 72.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 10 |
|---|---|
| Max speed | 6 000 rpm |
| Rotor diameter | 63.5 mm |
| Weatherproof | no |
| Seals | none, sealed against dust |
| Length | 57.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
| Circuits | 10 |
|---|---|
| Max speed | 2 000 rpm |
| Rotor diameter | 63.5 mm |
| Weatherproof | yes |
| Seals | contacting rotary seals (W) |
| Length | 72.9 mm |
| Weight | 213 g |
| Mounting | End of shaft |
| Encoder | 60 ppr |
| Encoder supply | 5 to 15 V DC, 36 mA |
| Embedded amplifier | None |
| Current per circuit | 500 mA |
| Max peak noise | 0.1 Ω |
| Stator diameter | 34.93 mm |
| Operating temperature | −40 to 100 °C |
| Rotor contacts | solder terminals; connector optional |
| Stator contacts | solder terminals |
Values from the current product page.
03 · Configure
Request a quote
Pick the model, then the rotor connection. The summary becomes your quote request.
04 · Resources
Resources
Datasheets and manuals
Drawings
None for this product.
CAD models
None for this product.
05 · Applications
Related applications
-
Speed Encoder pulses to analog voltage Encoder pulses converted in line to a speed voltage and an angle voltage, for recorders that cannot read pulses. -

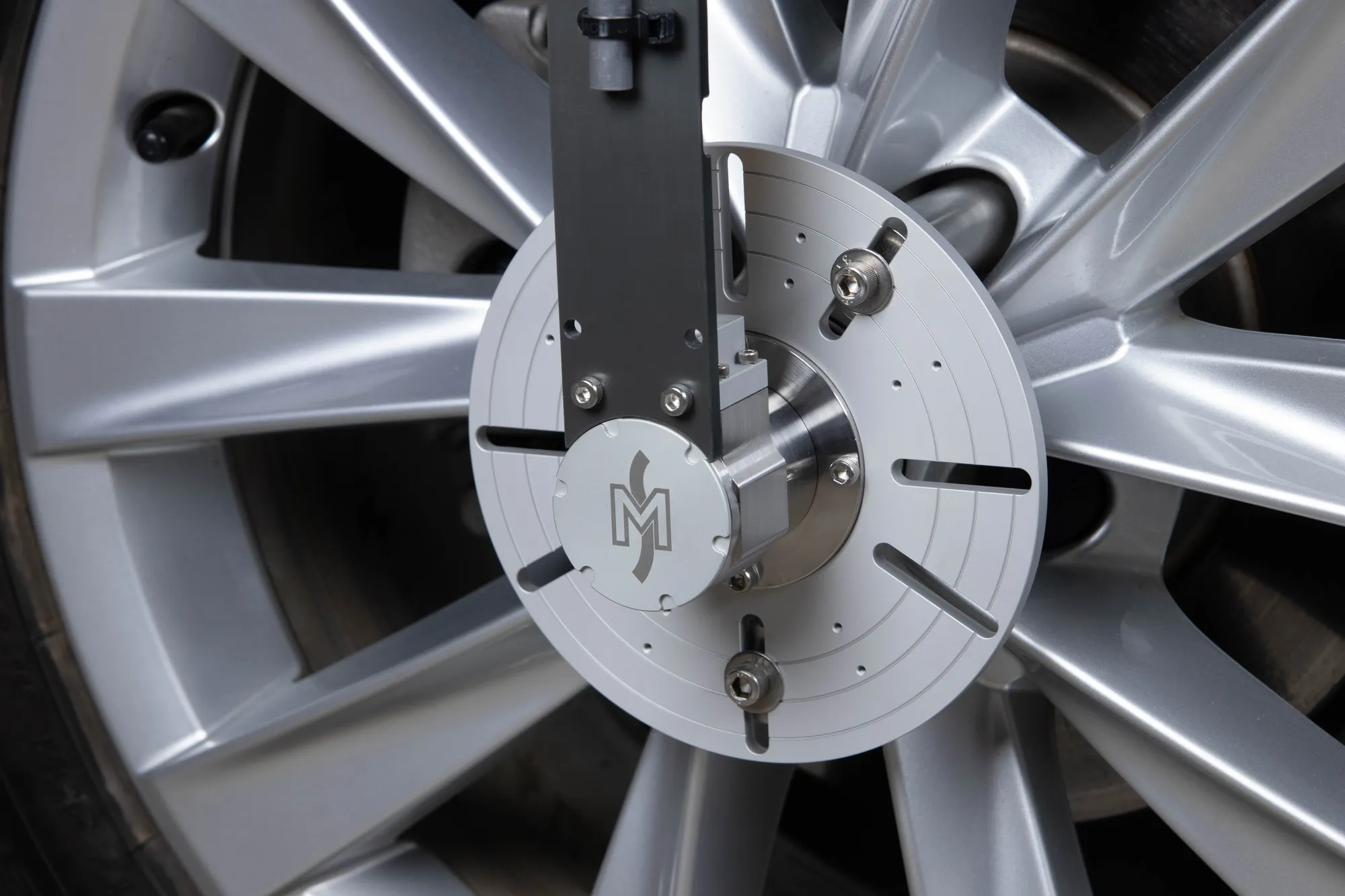

Efficiency Vehicle efficiency and power mapping Torque and speed measured at each driveline stage, from engine to wheel, so each power loss has a location. -
Turbines Wind turbine strain Strain on the blades and in the gearbox of a wind turbine, brought off the rotor by a slip ring.
06 · Related

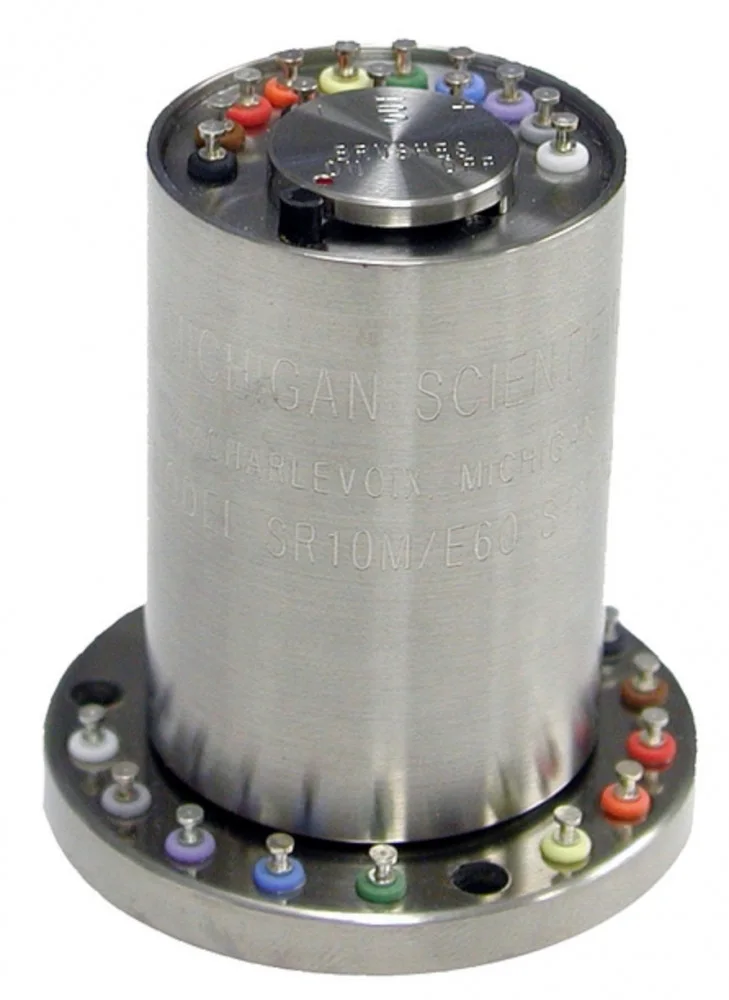

If the SR/E60 Series is not the one

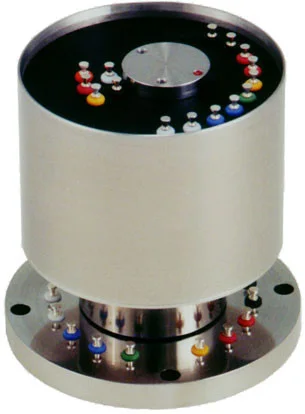

- Angular position as well SR/PE512 Series
End of shaft, up to 10 circuits with a 512 ppr quadrature encoder and index.

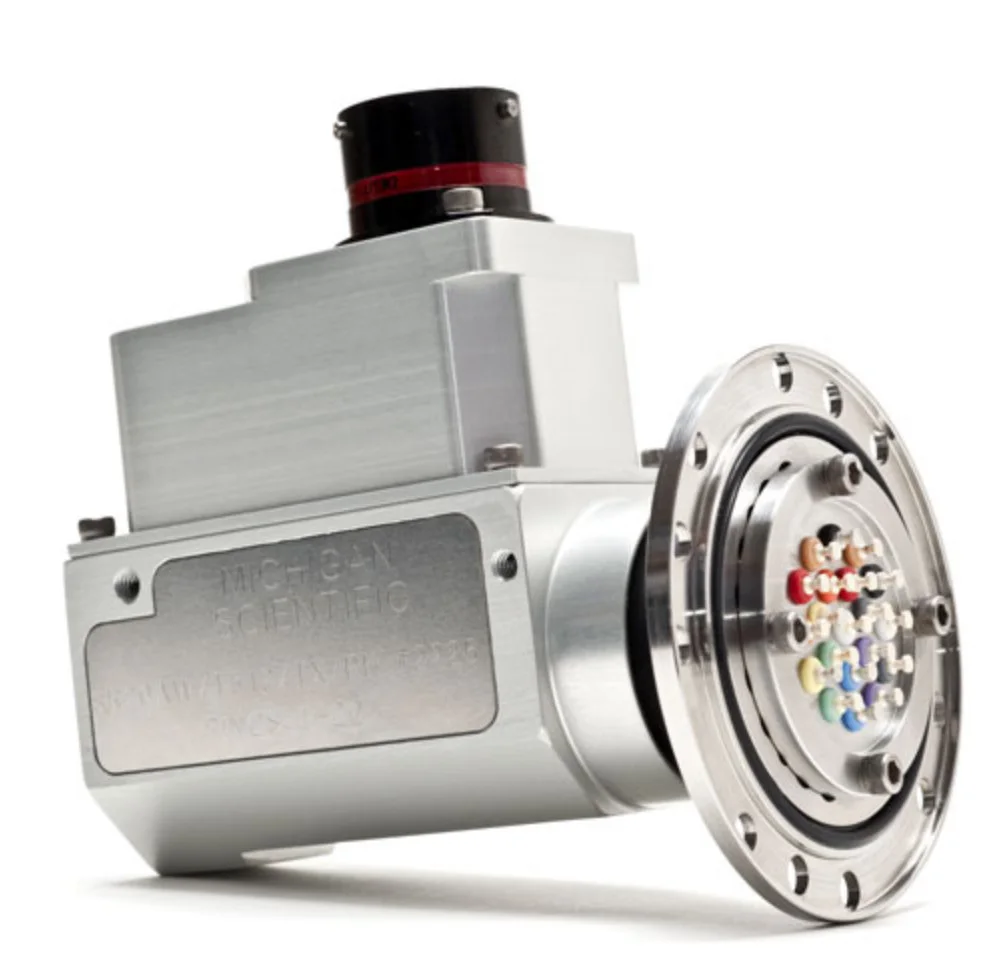

- More circuits SR/ERT Series
Modular, 10, 20 or 36 circuits, with encoder or resolver.
A question on this product?
Describe the measurement. An application engineer answers.
More details to give? Use the full contact form.
