SR/E60 Series end-of-shaft slip rings with encoder
End-of-shaft 60 ppr speed encoder with a 50.8 mm (2 in) rotor and no slip ring circuits, sealed against dust.
Weatherproof end-of-shaft 60 ppr speed encoder with a 50.8 mm (2 in) rotor and no slip ring circuits.
End-of-shaft 60 ppr speed encoder with a 63.5 mm (2.5 in) rotor and no slip ring circuits, sealed against dust.
Weatherproof end-of-shaft 60 ppr speed encoder with a 63.5 mm (2.5 in) rotor and no slip ring circuits.
Four-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 50.8 mm (2 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Weatherproof four-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 50.8 mm (2 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Four-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 63.5 mm (2.5 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Weatherproof four-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 63.5 mm (2.5 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Six-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 50.8 mm (2 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Weatherproof six-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 50.8 mm (2 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Six-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 63.5 mm (2.5 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Weatherproof six-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 63.5 mm (2.5 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Eight-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 50.8 mm (2 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Weatherproof eight-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 50.8 mm (2 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Eight-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 63.5 mm (2.5 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Weatherproof eight-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 63.5 mm (2.5 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Ten-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 50.8 mm (2 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Weatherproof ten-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 50.8 mm (2 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Ten-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 63.5 mm (2.5 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Weatherproof ten-circuit end-of-shaft slip ring with a 60 ppr speed encoder and a 63.5 mm (2.5 in) rotor, for low-level signals: strain gages, thermocouples, accelerometers and low voltages.
Model SR10M/E60
Common configurations SR10AW/E60/ASR10MW/E60/ASR10M/E60/RSR10MW/E60/R
- 0
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 0
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 213 g
- Weight
- 0
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 213 g
- Weight
- 0
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 213 g
- Weight
- 4
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 4
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 213 g
- Weight
- 4
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 213 g
- Weight
- 4
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 213 g
- Weight
- 6
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 6
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 213 g
- Weight
- 6
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 213 g
- Weight
- 6
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 213 g
- Weight
- 8
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 8
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 213 g
- Weight
- 8
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 213 g
- Weight
- 8
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 213 g
- Weight
- 10
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 57.9 mm · 213 g
- Length · weight
- 10
- Circuits
- 60 ppr
- Encoder
- 50.8 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 213 g
- Weight
- 10
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 6 000 rpm
- Max speed
- 213 g
- Weight
- 10
- Circuits
- 60 ppr
- Encoder
- 63.5 mm
- Rotor diameter
- 2 000 rpm
- Max speed
- 213 g
- Weight
- Length57.9 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Length57.9 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Length57.9 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Length57.9 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Length57.9 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
- Max current per circuit500 mA
- Stator diameter34.93 mm
End-of-shaft 60 ppr encoder, 50.8 mm rotor
The SR0M/E60 is the SR/E60 assembly without slip ring circuits: only its encoder is fitted. It mounts on the end of a rotating shaft and gives a 60 pulse-per-revolution square wave to measure rotational speed from 0 to 6 000 rpm; its pulses per second equal rpm. Its terminals are color-coded and its housing is sealed against dust. With a 50.8 mm (2 in) rotor, it is 57.9 mm long, runs up to 6 000 rpm, from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with three 8-32 screws on a 43.18 mm (1.700 in) circle. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals.
Its pulses are read directly on a frequency display, or, with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Weatherproof end-of-shaft 60 ppr encoder, 50.8 mm rotor
The SR0MW/E60 is the SR/E60 assembly without slip ring circuits: only its encoder is fitted. It mounts on the end of a rotating shaft and gives a 60 pulse-per-revolution square wave to measure rotational speed from 0 to 6 000 rpm; its pulses per second equal rpm. Its terminals are color-coded. Contacting rotary seals make it weatherproof against water and dust and limit it to 2 000 rpm. With a 50.8 mm (2 in) rotor, it works from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with three 8-32 screws on a 43.18 mm (1.700 in) circle. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals.
Its pulses are read directly on a frequency display, or, with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
End-of-shaft 60 ppr encoder, 63.5 mm rotor
The SR0A/E60 is the SR/E60 assembly without slip ring circuits: only its encoder is fitted. It mounts on the end of a rotating shaft and gives a 60 pulse-per-revolution square wave to measure rotational speed from 0 to 6 000 rpm; its pulses per second equal rpm. Its terminals are color-coded and its housing is sealed against dust. With a 63.5 mm (2.5 in) rotor, it runs up to 6 000 rpm, from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with #8-32 screws. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals.
Its pulses are read directly on a frequency display, or, with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Weatherproof end-of-shaft 60 ppr encoder, 63.5 mm rotor
The SR0AW/E60 is the SR/E60 assembly without slip ring circuits: only its encoder is fitted. It mounts on the end of a rotating shaft and gives a 60 pulse-per-revolution square wave to measure rotational speed from 0 to 6 000 rpm; its pulses per second equal rpm. Its terminals are color-coded. Contacting rotary seals make it weatherproof against water and dust and limit it to 2 000 rpm. With a 63.5 mm (2.5 in) rotor, it works from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with #8-32 screws. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals.
Its pulses are read directly on a frequency display, or, with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Four-circuit end-of-shaft slip ring with 60 ppr encoder, 50.8 mm rotor
The SR4M/E60 is an end-of-shaft slip ring with four circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. The housing is sealed against dust, and a manual brush lifter lifts the brushes off the rings when no signal is needed. With a 50.8 mm (2 in) rotor, it is 57.9 mm long, weighs 213 g and runs up to 6 000 rpm, from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with three 8-32 screws on a 43.18 mm (1.700 in) circle. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Weatherproof four-circuit end-of-shaft slip ring with 60 ppr encoder, 50.8 mm rotor
The SR4MW/E60 is an end-of-shaft slip ring with four circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. Contacting rotary seals make it weatherproof against water and dust and limit it to 2 000 rpm. With a 50.8 mm (2 in) rotor, it weighs 213 g and works from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with three 8-32 screws on a 43.18 mm (1.700 in) circle. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft, in harsh environmental conditions; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Four-circuit end-of-shaft slip ring with 60 ppr encoder, 63.5 mm rotor
The SR4A/E60 is an end-of-shaft slip ring with four circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. The housing is sealed against dust, and a manual brush lifter lifts the brushes off the rings when no signal is needed. With a 63.5 mm (2.5 in) rotor, it weighs 213 g and runs up to 6 000 rpm, from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with #8-32 screws. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Weatherproof four-circuit end-of-shaft slip ring with 60 ppr encoder, 63.5 mm rotor
The SR4AW/E60 is an end-of-shaft slip ring with four circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. Contacting rotary seals make it weatherproof against water and dust and limit it to 2 000 rpm. With a 63.5 mm (2.5 in) rotor, it weighs 213 g and works from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with #8-32 screws. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft, in harsh environmental conditions; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Six-circuit end-of-shaft slip ring with 60 ppr encoder, 50.8 mm rotor
The SR6M/E60 is an end-of-shaft slip ring with six circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. The housing is sealed against dust, and a manual brush lifter lifts the brushes off the rings when no signal is needed. With a 50.8 mm (2 in) rotor, it is 57.9 mm long, weighs 213 g and runs up to 6 000 rpm, from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with three 8-32 screws on a 43.18 mm (1.700 in) circle. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Weatherproof six-circuit end-of-shaft slip ring with 60 ppr encoder, 50.8 mm rotor
The SR6MW/E60 is an end-of-shaft slip ring with six circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. Contacting rotary seals make it weatherproof against water and dust and limit it to 2 000 rpm. With a 50.8 mm (2 in) rotor, it weighs 213 g and works from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with three 8-32 screws on a 43.18 mm (1.700 in) circle. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft, in harsh environmental conditions; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Six-circuit end-of-shaft slip ring with 60 ppr encoder, 63.5 mm rotor
The SR6A/E60 is an end-of-shaft slip ring with six circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. The housing is sealed against dust, and a manual brush lifter lifts the brushes off the rings when no signal is needed. With a 63.5 mm (2.5 in) rotor, it weighs 213 g and runs up to 6 000 rpm, from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with #8-32 screws. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Weatherproof six-circuit end-of-shaft slip ring with 60 ppr encoder, 63.5 mm rotor
The SR6AW/E60 is an end-of-shaft slip ring with six circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. Contacting rotary seals make it weatherproof against water and dust and limit it to 2 000 rpm. With a 63.5 mm (2.5 in) rotor, it weighs 213 g and works from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with #8-32 screws. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft, in harsh environmental conditions; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Eight-circuit end-of-shaft slip ring with 60 ppr encoder, 50.8 mm rotor
The SR8M/E60 is an end-of-shaft slip ring with eight circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. The housing is sealed against dust, and a manual brush lifter lifts the brushes off the rings when no signal is needed. With a 50.8 mm (2 in) rotor, it is 57.9 mm long, weighs 213 g and runs up to 6 000 rpm, from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with three 8-32 screws on a 43.18 mm (1.700 in) circle. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Weatherproof eight-circuit end-of-shaft slip ring with 60 ppr encoder, 50.8 mm rotor
The SR8MW/E60 is an end-of-shaft slip ring with eight circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. Contacting rotary seals make it weatherproof against water and dust and limit it to 2 000 rpm. With a 50.8 mm (2 in) rotor, it weighs 213 g and works from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with three 8-32 screws on a 43.18 mm (1.700 in) circle. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft, in harsh environmental conditions; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Eight-circuit end-of-shaft slip ring with 60 ppr encoder, 63.5 mm rotor
The SR8A/E60 is an end-of-shaft slip ring with eight circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. The housing is sealed against dust, and a manual brush lifter lifts the brushes off the rings when no signal is needed. With a 63.5 mm (2.5 in) rotor, it weighs 213 g and runs up to 6 000 rpm, from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with #8-32 screws. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Weatherproof eight-circuit end-of-shaft slip ring with 60 ppr encoder, 63.5 mm rotor
The SR8AW/E60 is an end-of-shaft slip ring with eight circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. Contacting rotary seals make it weatherproof against water and dust and limit it to 2 000 rpm. With a 63.5 mm (2.5 in) rotor, it weighs 213 g and works from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with #8-32 screws. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft, in harsh environmental conditions; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Ten-circuit end-of-shaft slip ring with 60 ppr encoder, 50.8 mm rotor
The SR10M/E60 is an end-of-shaft slip ring with ten circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. The housing is sealed against dust, and a manual brush lifter lifts the brushes off the rings when no signal is needed. With a 50.8 mm (2 in) rotor, it is 57.9 mm long, weighs 213 g and runs up to 6 000 rpm, from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with three 8-32 screws on a 43.18 mm (1.700 in) circle. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Weatherproof ten-circuit end-of-shaft slip ring with 60 ppr encoder, 50.8 mm rotor
The SR10MW/E60 is an end-of-shaft slip ring with ten circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. Contacting rotary seals make it weatherproof against water and dust and limit it to 2 000 rpm. With a 50.8 mm (2 in) rotor, it weighs 213 g and works from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with three 8-32 screws on a 43.18 mm (1.700 in) circle. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft, in harsh environmental conditions; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Ten-circuit end-of-shaft slip ring with 60 ppr encoder, 63.5 mm rotor
The SR10A/E60 is an end-of-shaft slip ring with ten circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. The housing is sealed against dust, and a manual brush lifter lifts the brushes off the rings when no signal is needed. With a 63.5 mm (2.5 in) rotor, it weighs 213 g and runs up to 6 000 rpm, from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with #8-32 screws. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. A rubber boot or a metal cap adds a cable or connector to the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Weatherproof ten-circuit end-of-shaft slip ring with 60 ppr encoder, 63.5 mm rotor
The SR10AW/E60 is an end-of-shaft slip ring with ten circuits rated at 500 mA and a 60 pulse-per-revolution encoder. It mounts on the end of a rotating shaft and carries strain gages, thermocouples, accelerometers and low voltages from rotor to stator, while the encoder measures rotational speed. Its rings and brushes are precious metal, and its terminals color-coded. Contacting rotary seals make it weatherproof against water and dust and limit it to 2 000 rpm. With a 63.5 mm (2.5 in) rotor, it weighs 213 g and works from −40 to 100 °C.
On installation, the rotor flange is screwed to the end of the shaft with #8-32 screws. The encoder is powered with 5 to 15 V DC. The bearings are lubricated for life, and a low-temperature lubricant is specified below −18 °C. The unit is fully weatherproof once a metal cap or a rubber boot with a connector covers the stator terminals, and a circular connector can replace the rotor terminals.
It is used where a slip ring and a speed encoder are both needed on the end of a shaft, in harsh environmental conditions; with Michigan Scientific frequency-to-voltage encoder electronics, its pulses also give an analog speed signal for recorders that cannot read a pulse train.
Specifications
| Circuits | 0 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 6 000 rpm |
| Rotor diameter | 50.8 mm |
| Seals | None (sealed against dust) |
| Dimensions | Ø 34.93 × 57.9 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 0 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 2 000 rpm |
| Rotor diameter | 50.8 mm |
| Seals | Contacting rotary seals (W) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Protection | Weatherproof |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 0 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 6 000 rpm |
| Rotor diameter | 63.5 mm |
| Seals | None (sealed against dust) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 0 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 2 000 rpm |
| Rotor diameter | 63.5 mm |
| Seals | Contacting rotary seals (W) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Protection | Weatherproof |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 4 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 6 000 rpm |
| Rotor diameter | 50.8 mm |
| Seals | None (sealed against dust) |
| Dimensions | Ø 34.93 × 57.9 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 4 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 2 000 rpm |
| Rotor diameter | 50.8 mm |
| Seals | Contacting rotary seals (W) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Protection | Weatherproof |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 4 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 6 000 rpm |
| Rotor diameter | 63.5 mm |
| Seals | None (sealed against dust) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 4 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 2 000 rpm |
| Rotor diameter | 63.5 mm |
| Seals | Contacting rotary seals (W) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Protection | Weatherproof |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 6 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 6 000 rpm |
| Rotor diameter | 50.8 mm |
| Seals | None (sealed against dust) |
| Dimensions | Ø 34.93 × 57.9 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 6 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 2 000 rpm |
| Rotor diameter | 50.8 mm |
| Seals | Contacting rotary seals (W) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Protection | Weatherproof |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 6 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 6 000 rpm |
| Rotor diameter | 63.5 mm |
| Seals | None (sealed against dust) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 6 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 2 000 rpm |
| Rotor diameter | 63.5 mm |
| Seals | Contacting rotary seals (W) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Protection | Weatherproof |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 8 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 6 000 rpm |
| Rotor diameter | 50.8 mm |
| Seals | None (sealed against dust) |
| Dimensions | Ø 34.93 × 57.9 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 8 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 2 000 rpm |
| Rotor diameter | 50.8 mm |
| Seals | Contacting rotary seals (W) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Protection | Weatherproof |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 8 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 6 000 rpm |
| Rotor diameter | 63.5 mm |
| Seals | None (sealed against dust) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 8 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 2 000 rpm |
| Rotor diameter | 63.5 mm |
| Seals | Contacting rotary seals (W) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Protection | Weatherproof |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 10 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 6 000 rpm |
| Rotor diameter | 50.8 mm |
| Seals | None (sealed against dust) |
| Dimensions | Ø 34.93 × 57.9 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 10 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 2 000 rpm |
| Rotor diameter | 50.8 mm |
| Seals | Contacting rotary seals (W) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Protection | Weatherproof |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 10 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 6 000 rpm |
| Rotor diameter | 63.5 mm |
| Seals | None (sealed against dust) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
| Circuits | 10 |
|---|---|
| Rotation sensor | Encoder |
| Encoder resolution | 60 ppr |
| Embedded amplifier | None |
| Max peak contact noise | ≤ 100 mΩ |
| Current per circuit | 500 mA |
| Supply voltage | 5 to 15 V (encoder) |
| Supply current | 36 mA (encoder) |
| Mounting | End of shaft |
| Max speed | 2 000 rpm |
| Rotor diameter | 63.5 mm |
| Seals | Contacting rotary seals (W) |
| Dimensions | Ø 34.93 mm |
| Weight | 213 g |
| Operating temperature | −40 to 100 °C |
| Protection | Weatherproof |
| Connections | Connector · Solder terminals (rotor: solder terminals; connector optional · stator: solder terminals) |
Request a quote
Resources
Datasheets and manuals
Drawings
None for this product.
CAD models
None for this product.
Related applications
-
Speed Encoder pulses to analog voltage Encoder pulses converted in line to a speed voltage and an angle voltage, for recorders that cannot read pulses. -
Efficiency Vehicle efficiency and power mapping Torque and speed measured at each driveline stage, from engine to wheel, so each power loss has a location. -

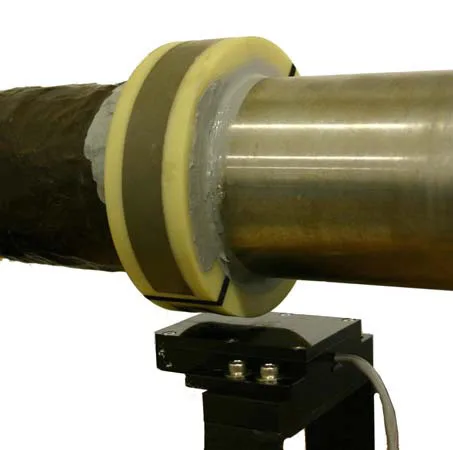

Turbines Wind turbine strain Strain on the blades and in the gearbox of a wind turbine, brought off the rotor by a slip ring or by telemetry.
If the SR/E60 Series is not the one
- Angular position as well SR/PE512 Series
End of shaft, up to 10 circuits with a 512 ppr quadrature encoder and index.
- More circuits SR/ERT Series
10, 20 or 36 circuits, with an optional encoder or resolver.
A question on this product?
Describe the measurement. An application engineer answers.
More details to give? Use the full contact form.
