Ref: Model HBT

Steering Torque and Angle Measurement System for motorcycles handlebar

Accurately measures steering effort torque and steering angle
Measurement range : +/- 135 Nm (lower ranges possible)
Measuring range angle : +/- 180 degrees
Mounts to OEM steering handlebar or ATV shaft
Includes transducer, encoder, mounting bracket, and user interface
Measures steering torque, angle, and rate (rate available on CAN output only)
Analog output and CAN 2.0 signal outputs
User interface with simple zeroing and shunt calibration controls
Rugged - Weatherproof construction
Calibration Certificate included

Standard lead time : 4 to 8 weeks

Introduction

The HBT Handlebar Torque Measurement System measures the steering effort torque and steering angle on motorcycles and ATVs while maintaining the proper function of the handlebars.

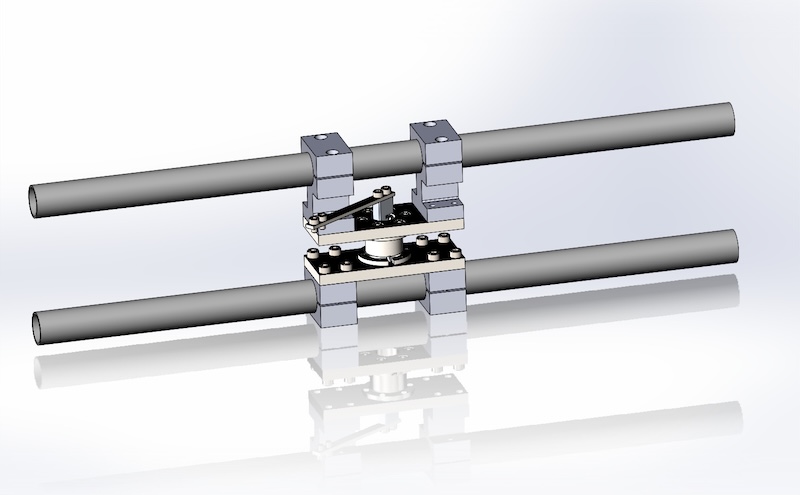

The HBT can be mounted to steering handlebars or an ATV shaft by replacing or mounting to the existing handlebar clamps. Michigan Scientific can design and manufacture a mounting system to fit customer requirements. The anti-rotation restraint for the steering angle sensor is secured to a stationary reference on the motorcycle.

The HBT is a strain gauge based sensor made from high strength stainless steel and is fully temperature compensated. The steering angle signal is generated from a high resolution inductive encoder. The torque transducer and steer angle sensor are powered and controlled by a Michigan Scientific DIGI-STEER Control Unit.

Specifications

Rated Torque Capacity	135Nm
Safe Axial Load	400N
Signal Outputs	±10 V and CAN 2.0
Torque Sensor Type	Full Bridge Strain Gauge
Torque Non-linearity	< 1 % of full scale output
Steering Angle Range	± 180 Degrees
Angle Resolution	± 0.3 degrees
Max Speed for Angle Measurement	333 rpm
Temperature Range, Compensated	-12 to 49°C
Temperature Range, Operating	-20 to 80°C
Input Power	9 to 36 VDC
Weight (Transducer Assembly)	1.6 kgs
