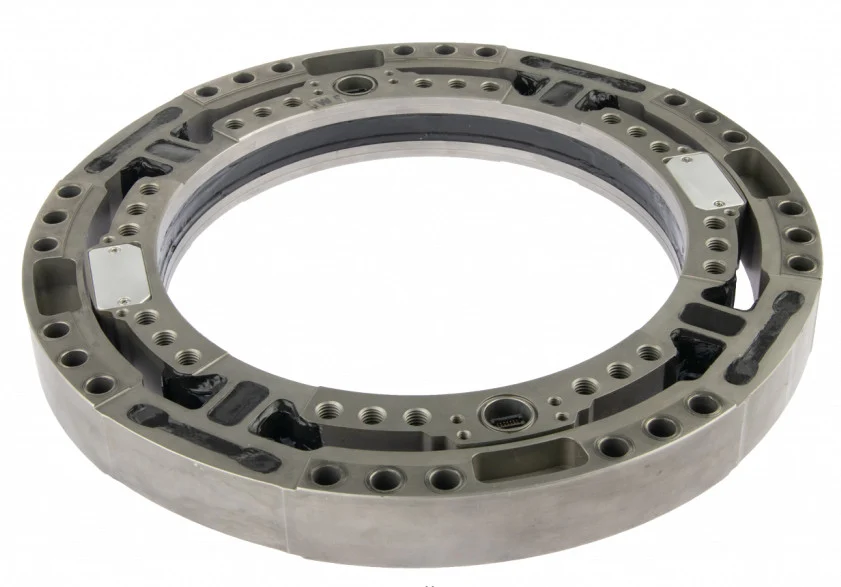

LW60 wheel force transducer
Six-axis wheel force transducer for passenger cars, SUVs and light trucks, 60 kN radial and 35 kN lateral, IP67, rated −40 to 177 °C, with slip ring or telemetry.
- 60 kN
- Fx, Fz capacity
- 35 kN
- Fy capacity
- 8.0 / 9.0 kN·m
- Moment capacity
- ≤ 0.25 % FS
- Non-linearity
- OutputsFx Fy Fz · Mx My Mz
- Also measuredX and Z acceleration (X, Y, Z on the LW50 and LW55) · wheel speed and angle
- Signal outputanalog · CAN · Ethernet · CAN FD and EtherCAT on the CT3
LW60: wheel force transducer for cars and SUVs, 60 kN
The LW60 measures all the wheel forces and moments on passenger cars, SUVs and light trucks, with X and Z accelerations up to ±100 g. It is rated 60 kN (13,400 lb) on Fx and Fz, 35 kN (7,850 lb) on Fy, 8.0 kN·m on Mx and Mz and 9.0 kN·m on My, for a static weight of 1,225 kg. Non-linearity and hysteresis are 0.25 % of full scale or less, cross-axis sensitivity after correction 0.4 % or less. The IP67 transducer, Ø 342.90 × 26.67 mm, weighs 5.7 kg, operates from −40 to 177 °C and adapts to 12 in and larger wheels.
Sixteen M10 × 1.5 screws pass through the transducer into the rim adapter and twenty-four fasten the hub adapter, torqued crosswise to 81 N·m. The amplifier, matched to the transducer, aligns on a flat and carries a 20-circuit slip ring with a 512-pulse encoder; a magnetic restraint and rod hold its stator on non-steered wheels, a stator angle corrector on steered ones. With the CT3 interface box, powered at 9 to 36 V DC, the system is zeroed, its shunt calibration checked and the loads resolved into vehicle axes.
Its IP67 design suits track and off-road measurements and non-spinning test rigs. The telemetry package mounts inboard on cars and SUVs, or outboard for machinery applications.
Specifications
| Measured quantities | Fx · Fy · Fz · Mx · My · Mz |
|---|---|
| Force capacity | Fx 60 · Fy 35 · Fz 60 kN |
| Moment capacity | Mx 8 000 · My 9 000 · Mz 8 000 N·m |
| Max static load | 1 225 kg |
| Non-linearity | ≤ 0.25 % FS |
| Hysteresis | ≤ 0.25 % FS |
| Crosstalk | ≤ 0.4 % FS (after correction) |
| Angle resolution | 0.17° |
| Axes | 6 |
| Accelerometer range | 100 g (X and Z) |
| Output | Analog voltage · CAN · CAN FD · Ethernet · EtherCAT (CT3; EtherCAT with an add-on module) |
| Signal transmission | Slip ring · Telemetry (slip ring outboard; telemetry inboard or outboard) |
| Shaft diameter | 228.6 mm (center bore) |
| Mounting fasteners | 24 × M10 × 1.5 |
| Rim fasteners | 16 × Ø 10.32 mm (through) |
| Bolt circle | 255.27 mm |
| Rim bolt circle | 325.12 mm |
| Dimensions | Ø 342.9 × 26.67 mm |
| Weight | 5.7 kg |
| Operating temperature | −40 to 177 °C |
| Protection | IP67 |
| Interface box | CT3 |
| Vehicles | Passenger cars · SUVs · Light trucks |
| Rim size | 12 in (and larger) |
Request a quote
Unusual bolt pattern, motorsport hub, agricultural wheel: we build it around your wheel.
Used with the LW series
What you add here goes into the same quote request.
-
Measure on a steered wheel
SAC stator angle corrector
Corrects the rotation angle signal in real time for the coordinate transformation, with no over-the-wheel bracket. Internal encoder accuracy ≤ 0.25°, IP67.
