S4, S6, S8 and S10 end-of-shaft slip rings, S-Series

S4: four-circuit end-of-shaft slip ring

The S4 is an end-of-shaft slip ring with four circuits rated at 500 mA. It mounts on the free end of a rotating shaft and carries strain gages, thermocouples, RTDs, accelerometers and low voltages from rotor to stator. Precious metal rings and brushes limit the contact resistance variation to 0.1 Ω peak. The stainless steel case is sealed against dust, the bearings are lubricated for life, and color-coded solder terminals sit on both rotor and stator. With a 41.28 mm rotor, it is 30 mm long and weighs 111 g; it runs up to 12 000 rpm, from −40 to 121 °C, and a low-temperature lubricant is available below −18 °C. It is the shortest model of the series.

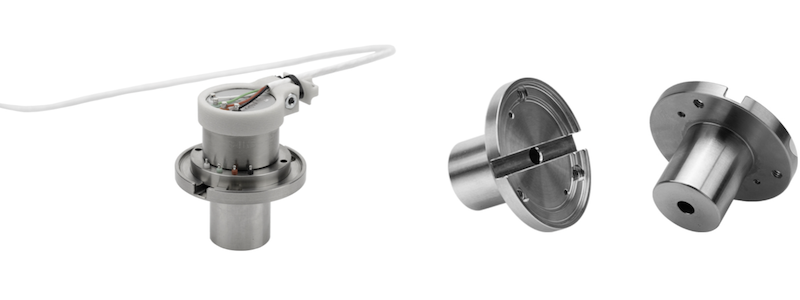

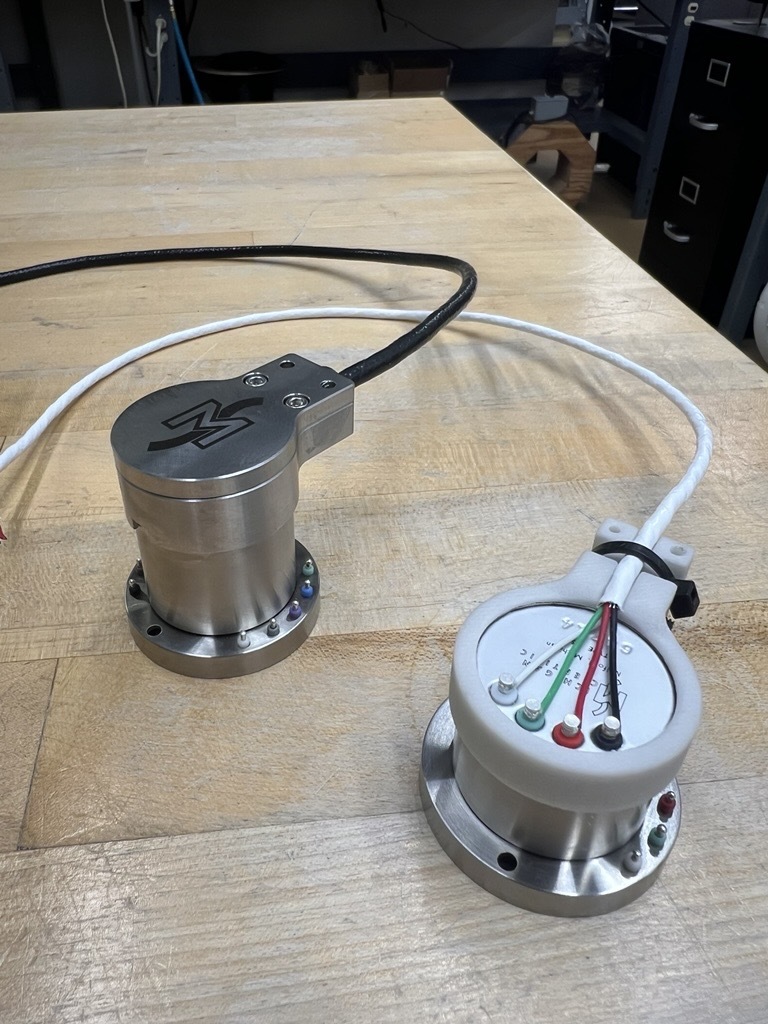

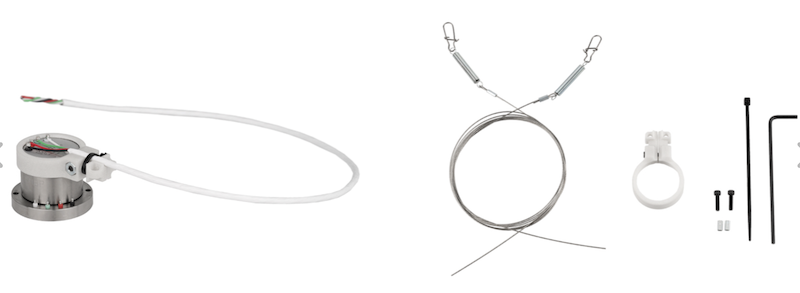

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

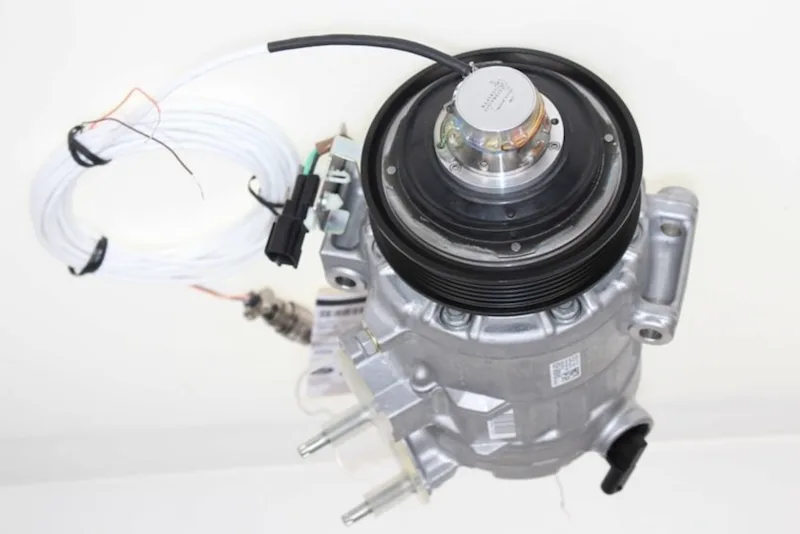

The S-Series is used, for example, to measure the torque of a gaged accessory belt pulley on an engine, or of gaged gears and gearboxes.

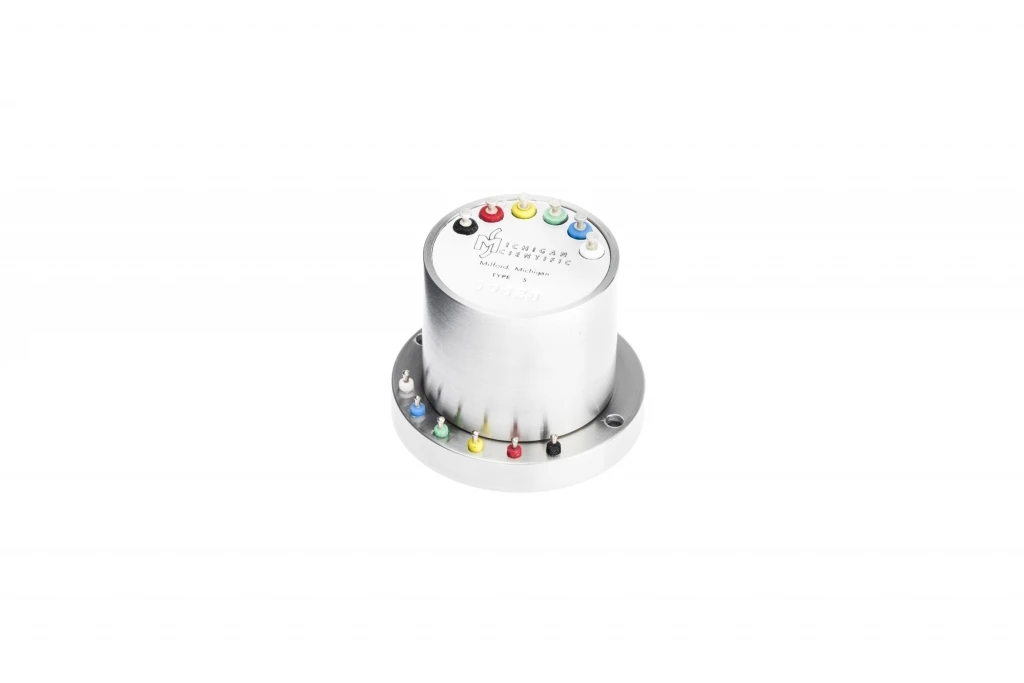

S6: six-circuit end-of-shaft slip ring

The S6 is an end-of-shaft slip ring with six circuits rated at 500 mA. It mounts on the free end of a rotating shaft and carries strain gages, thermocouples, RTDs, accelerometers and low voltages from rotor to stator. Precious metal rings and brushes limit the contact resistance variation to 0.1 Ω peak. The stainless steel case is sealed against dust, the bearings are lubricated for life, and color-coded solder terminals sit on both rotor and stator. With a 41.28 mm rotor, it is 33 mm long and weighs 113 g; it runs up to 12 000 rpm, from −40 to 121 °C, and a low-temperature lubricant is available below −18 °C. It is also the base of the S6/G5, S6/G10, S6/TC3K and S6/TC3T, which add amplifiers in the rotor.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

The S-Series is used, for example, to measure brake disc temperature while driving, electric motor rotor temperature at the end of the motor shaft, or the torque of gaged pulleys and gears.

End-of-shaft slip ring with rotor-mounted strain gage amplifier

The S6/G combines the S6 slip ring with a precision strain gage amplifier built into its rotor, so the bridge is excited and its signal amplified on the rotating side, close to the gages. The amplifier provides a low-drift 5 or 10 V bridge excitation for bridges of 350 Ω and above, a gain of 100 to 2 000 V/V set externally, and a 10 V full-scale output, with a bandwidth of 40 kHz as standard and up to 200 kHz at a gain of 100.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals. The amplifier takes ±15 V through the slip ring; +15 V on the calibration pin switches in the shunt calibration resistor (100 kΩ to 1 MΩ), and the bridge excitation can be switched on and off remotely.

It is used on one strain gage channel, for example to measure the torque of a gaged shaft, pulley or gear.

End-of-shaft slip ring with rotor-mounted thermocouple amplifiers

The S6/TC3 combines a six-circuit S-Series slip ring with three thermocouple amplifiers built into its rotor, so three thermocouple signals are amplified on the rotating side, before the rings. With a 41.28 mm rotor, it is 28 mm long, weighs 75 g and runs up to 12 000 rpm, from −40 to 121 °C.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals. Amplified on the rotor, the thermocouples are not affected by the temperature difference between rotor and stator terminals.

It is used, for example, to measure brake disc temperature while driving, or electric motor rotor temperature at the end of the motor shaft.

S6M: six-circuit end-of-shaft slip ring, 50.8 mm rotor

The S6M is the six-circuit S-Series end-of-shaft slip ring built on a 50.8 mm rotor instead of 41.28 mm. It carries six circuits rated at 500 mA from rotor to stator. Precious metal rings and brushes limit the contact resistance variation to 0.1 Ω peak. The stainless steel case is sealed against dust, the bearings are lubricated for life, and color-coded solder terminals sit on both rotor and stator. It is 36 mm long and runs up to 12 000 rpm, from −40 to 121 °C.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

The S-Series is used, for example, to measure brake disc temperature while driving, electric motor rotor temperature at the end of the motor shaft, or the torque of gaged pulleys and gears.

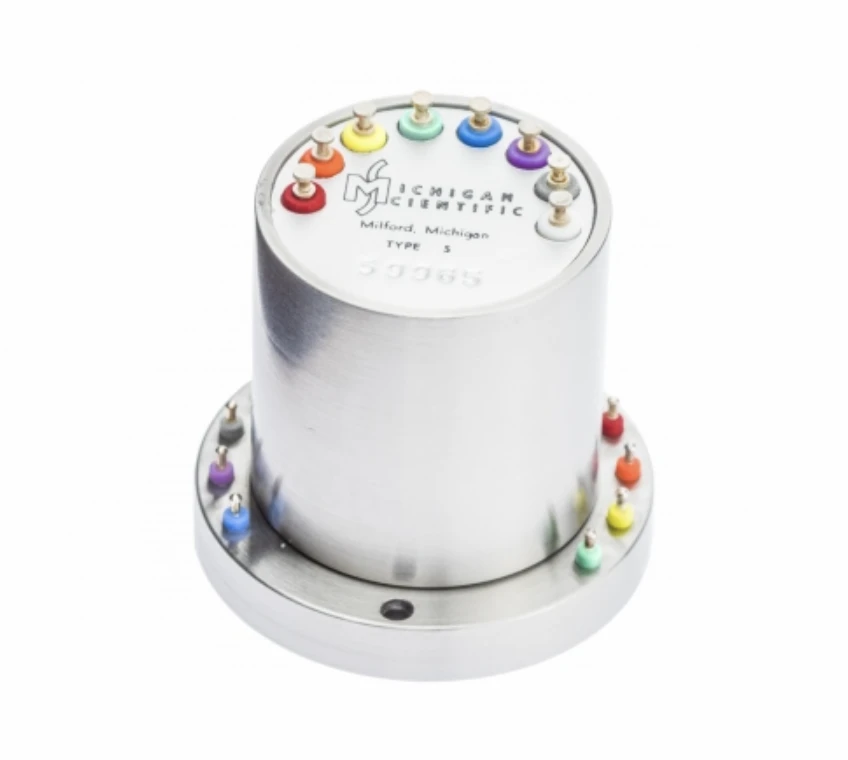

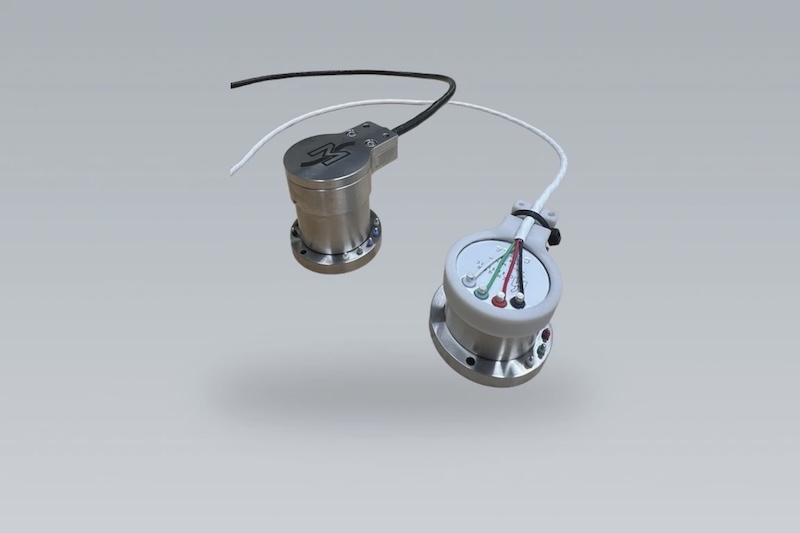

S8: eight-circuit end-of-shaft slip ring

The S8 is an end-of-shaft slip ring with eight circuits rated at 500 mA. It mounts on the free end of a rotating shaft and carries strain gages, thermocouples, RTDs, accelerometers and low voltages from rotor to stator. Precious metal rings and brushes limit the contact resistance variation to 0.1 Ω peak. The stainless steel case is sealed against dust, the bearings are lubricated for life, and color-coded solder terminals sit on both rotor and stator. With a 41.28 mm rotor, it is 38 mm long and weighs 116 g; it runs up to 12 000 rpm, from −40 to 121 °C, and a low-temperature lubricant is available below −18 °C. It is also the base of the S8/2Gx, which adds two amplifiers in the rotor.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

The S-Series is used, for example, to measure the torque of gaged pulleys, gears and gearboxes, as on a combine harvester, or the temperature of rotating parts with thermocouples.

End-of-shaft slip ring with two rotor-mounted strain gage amplifiers

The S8/2Gx combines an eight-circuit S-Series slip ring with two strain gage amplifiers built into its rotor, so two bridge signals are amplified on the rotating side, close to the gages. With a 41.28 mm rotor, it is 41 mm long, weighs 150 g and runs up to 12 000 rpm.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

It is used on two strain gage channels on the same rotating part, for example a gaged shaft, pulley or gear.

S8M: eight circuits, 50.8 mm rotor

The S8M is the eight-circuit S-Series end-of-shaft slip ring built on a 50.8 mm (2 in) rotor instead of 41.28 mm. It carries eight circuits rated at 500 mA from rotor to stator. Precious metal rings and brushes limit the contact resistance variation to 0.1 Ω peak. The stainless steel case is sealed against dust, the bearings are lubricated for life, and color-coded solder terminals sit on both rotor and stator. It runs up to 12 000 rpm, from −40 to 121 °C.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

For the 41.28 mm rotor, see the S8; for six circuits on the 50.8 mm rotor, the S6M.

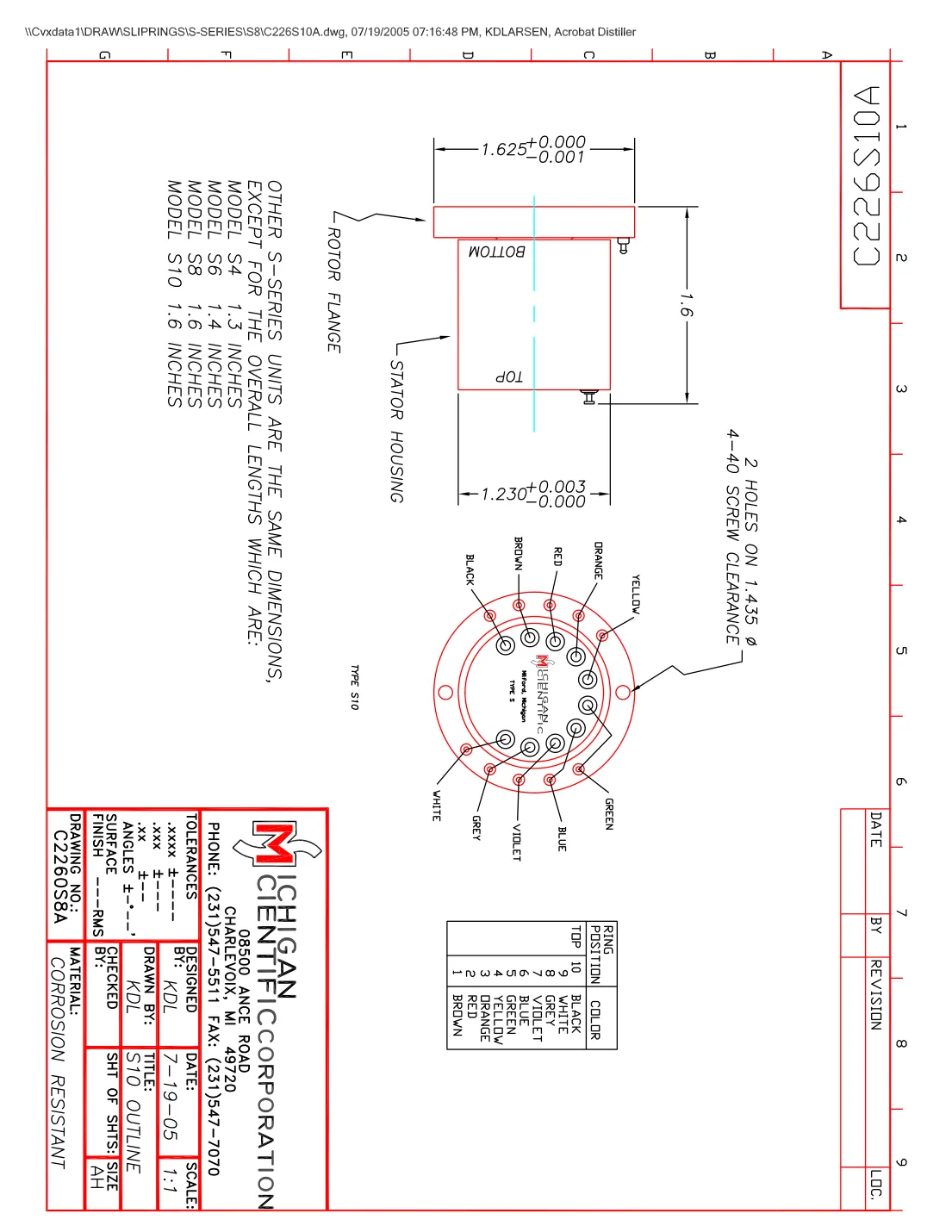

S10: ten-circuit end-of-shaft slip ring

The S10 is an end-of-shaft slip ring with ten circuits rated at 500 mA. It mounts on the free end of a rotating shaft and carries strain gages, thermocouples, RTDs, accelerometers and low voltages from rotor to stator. Precious metal rings and brushes limit the contact resistance variation to 0.1 Ω peak. The stainless steel case is sealed against dust, the bearings are lubricated for life, and color-coded solder terminals sit on both rotor and stator. With a 41.28 mm rotor, it is 38 mm long and weighs 119 g; it runs up to 12 000 rpm, from −40 to 121 °C, and a low-temperature lubricant is available below −18 °C. It is also the base of the S10M/V and of the LHV versions S10/LHV and S10/LHV/TC6.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

The S-Series is used, for example, on the end of a deep-bore gaged truck axle, on electric motor shafts for rotor temperature, or on gaged pulleys and gears.

S10M/V: ten-circuit end-of-shaft slip ring, 50.8 mm rotor

The S10M/V is the ten-circuit S-Series end-of-shaft slip ring built on a 50.8 mm rotor instead of 41.28 mm. It carries ten circuits rated at 500 mA from rotor to stator. Precious metal rings and brushes limit the contact resistance variation to 0.1 Ω peak. The stainless steel case is sealed against dust, the bearings are lubricated for life, and color-coded solder terminals sit on both rotor and stator. It is 37.6 mm long and runs up to 12 000 rpm, from −40 to 121 °C.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

The S-Series is used, for example, on the end of a deep-bore gaged truck axle, on electric motor shafts for rotor temperature, or on gaged pulleys and gears.

S6/LHV: six-circuit end-of-shaft slip ring, LHV version

The S6/LHV is the S6 end-of-shaft slip ring with specialized rings and a lubrication hole: it lasts longer than the standard version, in exchange for regular lubrication. It carries six circuits rated at 500 mA from rotor to stator, on a 41.28 mm rotor, for strain gages, thermocouples, RTDs, accelerometers and low voltages. Precious metal rings and brushes, a stainless steel case and color-coded solder terminals on rotor and stator, as on the whole S-Series.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

The LHV versions are chosen when the life of the slip ring matters more than maintenance-free operation.

S10/LHV: ten-circuit end-of-shaft slip ring, LHV version

The S10/LHV is the S10 end-of-shaft slip ring with specialized rings and a lubrication hole: it lasts longer than the standard version, in exchange for regular lubrication. It carries ten circuits rated at 500 mA from rotor to stator, on a 41.28 mm rotor, for strain gages, thermocouples, RTDs, accelerometers and low voltages. Precious metal rings and brushes, a stainless steel case and color-coded solder terminals on rotor and stator, as on the whole S-Series.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

The LHV versions are chosen when the life of the slip ring matters more than maintenance-free operation.

S10M/LHV: ten-circuit end-of-shaft slip ring, LHV version, 50.8 mm rotor

The S10M/LHV is the S10M end-of-shaft slip ring with specialized rings and a lubrication hole: it lasts longer than the standard version, in exchange for regular lubrication. It carries ten circuits rated at 500 mA from rotor to stator, on a 50.8 mm rotor, for strain gages, thermocouples, RTDs, accelerometers and low voltages. Precious metal rings and brushes, a stainless steel case and color-coded solder terminals on rotor and stator, as on the whole S-Series.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

The LHV versions are chosen when the life of the slip ring matters more than maintenance-free operation.

LHV slip ring with rotor-mounted strain gage amplifier

The S6/LHV/G5 and S6/LHV/G10 combine the S6/LHV, with its specialized rings and lubrication hole, and a strain gage amplifier built into the rotor: the bridge is excited and its signal amplified on the rotating side, close to the gages. The G5 gives the bridge a 5 V excitation, the G10 a 10 V excitation. Like every LHV version, it lasts longer than the standard version, in exchange for regular lubrication.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

It is used on one strain gage channel, for example to measure the torque of a gaged shaft, pulley or gear, when the life of the slip ring matters more than maintenance-free operation.

LHV slip ring with two rotor-mounted strain gage amplifiers

The S8/LHV/2G5 and S8/LHV/2G10 combine an eight-circuit S-Series slip ring with specialized rings and a lubrication hole, and a two-channel strain gage amplifier built into the rotor: two bridge signals are amplified on the rotating side, close to the gages. The 2G5 gives the bridges a 5 V excitation, the 2G10 a 10 V excitation. Like every LHV version, it lasts longer than the standard version, in exchange for regular lubrication.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

It is used on two strain gage channels on the same rotating part, for example a gaged shaft, pulley or gear, when the life of the slip ring matters more than maintenance-free operation.

LHV slip ring with three rotor-mounted thermocouple amplifiers

The S6/LHV/TC3 versions combine the S6/LHV, with its specialized rings and lubrication hole, and three thermocouple amplifiers built into the rotor: three thermocouple signals are amplified on the rotating side, before the rings. The amplifiers are made for type K (TC3K, TC3KT) or type T (TC3T, TC3TT) thermocouples; their specifications are those of the AMP-TC-M1. Like every LHV version, it lasts longer than the standard version, in exchange for regular lubrication.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

On the S6/LHV/TC3KT and S6/LHV/TC3TT, the rotor terminals are made of thermocouple material; the stator keeps conventional terminals.

LHV slip ring with six rotor-mounted thermocouple amplifiers

The S10/LHV/TC6 versions combine the S10/LHV, with its specialized rings and lubrication hole, and six thermocouple amplifiers built into the rotor: six thermocouple signals are amplified on the rotating side, before the rings. The amplifiers are made for type T thermocouples (TC6T, TC6TT); their specifications are those of the AMP-TC-M1. Like every LHV version, it lasts longer than the standard version, in exchange for regular lubrication.

The rotor flange is mounted concentric and perpendicular to the shaft, on a machined shaft end or a rotor adapter, within 0.025 mm (0.001 in) of axial and radial runout. The stator is held by a flexible restraint, the S-Series restraint kit (up to 112 °C) or a worm gear clamp with a spring, never by its wires. Stranded wires, 28 or 30 AWG (24 AWG at most), run along or through the shaft and are secured to it before being soldered to the rotor terminals.

On the S10/LHV/TC6TT, the rotor terminals are made of thermocouple material; the stator keeps conventional terminals.

Circuits	4
Rotation sensor	None
Embedded amplifier	None
Current per circuit	500 mA
Mounting	End of shaft
Max speed	12 000 rpm
Rotor diameter	41.28 mm
Dimensions	length 30 mm
Weight	111 g
Operating temperature	−40 to 121 °C
Connections	Solder terminals (rotor and stator: solder terminals)

Circuits	6
Rotation sensor	None
Embedded amplifier	None
Current per circuit	500 mA
Mounting	End of shaft
Max speed	12 000 rpm
Rotor diameter	41.28 mm
Dimensions	length 33 mm
Weight	113 g
Operating temperature	−40 to 121 °C
Connections	Solder terminals (rotor and stator: solder terminals)

Circuits	6
Rotation sensor	None
Embedded amplifier	Strain gage (1 amplifier)
Current per circuit	500 mA
Mounting	End of shaft
Max speed	12 000 rpm
Rotor diameter	41.28 mm
Dimensions	length 36 mm
Weight	130 g
Operating temperature	−40 to 121 °C
Connections	Solder terminals (rotor and stator: solder terminals)

Circuits	6
Rotation sensor	None
Embedded amplifier	Strain gage (1 amplifier)
Current per circuit	500 mA
Mounting	End of shaft
Max speed	12 000 rpm
Rotor diameter	41.28 mm
Dimensions	length 36 mm
Weight	130 g
Operating temperature	−40 to 121 °C
Connections	Solder terminals (rotor and stator: solder terminals)

Circuits	6
Rotation sensor	None
Embedded amplifier	Thermocouple (3 amplifiers)
Current per circuit	500 mA
Mounting	End of shaft
Max speed	12 000 rpm
Rotor diameter	41.28 mm
Dimensions	length 28 mm
Weight	75 g
Operating temperature	−40 to 121 °C
Connections	Solder terminals (rotor and stator: solder terminals)
