MUX-HL-12 twelve-channel analog to CAN module
Twelve-channel amplifier for high-level sensors such as accelerometers and string pots: 4.8 V sensor power, conditioning and 16-bit digitization onto one CAN 2.0 or CAN FD bus, up to 8 ksps.
Model MUX-HL-12
- 12
- High-level channels
- 8 ksps
- Max output rate, CAN FD
- ± 2.2 V
- Input range
- 4.8 V
- Sensor power
- OutputCAN 2.0 / CAN FD
- Max output rate8 ksps, CAN FD; 2 ksps, CAN 2.0
- StackingUp to 4 modules, 48 synchronized channels
- ConfigurationSoftware, per channel

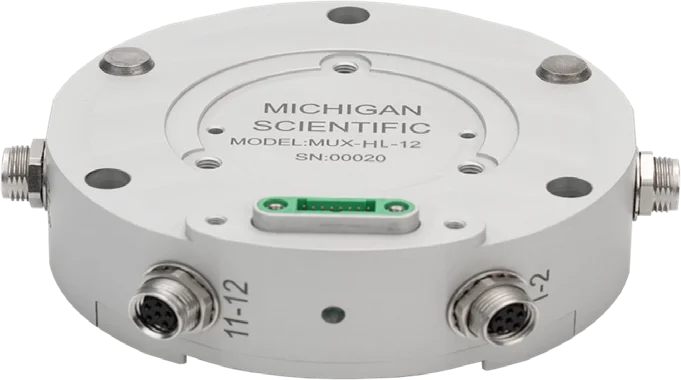

MUX-HL-12: twelve high-level sensors onto one CAN bus
The MUX-HL-12 takes twelve high-level sensors in 3-wire connection, power, signal and ground, two per M8 6-pin connector. It powers each sensor at 4.8 V ratiometric, up to 13 mA, and digitizes a ±2.2 V input at 16 bits, with 0.1 % accuracy at 25 °C. Each channel is scaled by its sensitivity or a two-point calibration, proportional to excitation for ratiometric sensors, and zeroed by software. Output: CAN 2.0 up to 2 ksps, CAN FD up to 8 ksps, 1.6 kHz at −3 dB. Supply 10 to 36 V DC; −40 to 85 °C; IP67 with the stacking connectors.
The module ships with a power and CAN cable, a PEAK-System USB-to-CAN FD adapter and the MUX Tool software for Windows, which configures each channel, records one module to a PC and generates the DBC file for a data recorder. Up to four modules stack for 48 synchronized channels.
On a rotating part, the SR10AW/WFT slip ring and its 1024 ppr encoder mount on the stack through the MUX-ENC-ADA adapter layer; encoder position and speed come out with the module data.
Specifications
| Channels | 12 (per module, stackable to 48 with four modules) |
|---|---|
| Input | Voltage (high level, 3-wire; input range ±2.2 V) |
| Output | CAN · CAN FD |
| Bandwidth | 1.6 kHz (−3 dB; 0.5 kHz at −0.1 dB, 4 or 8 ksps output rate) |
| Sample rate | 8 kHz (CAN FD at 4 Mbit/s; 2 kHz on CAN 2.0, 12 channels) |
| Noise, referred to input | ≤ 12 µV (rms, 1.6 kHz bandwidth) |
| Gain setting | Software (per channel; PC software included for configuration and data recording) |
| Input offset | ≤ 50 µV |
| Offset drift | ≤ 0.5 µV/°C |
| Supply voltage | 10 to 36 V |
| Excitation voltage | 4.8 V (sensor power, ratiometric) |
| Power consumption | 1 W (typical, at 12 V DC, no sensors) |
| Excitation current limit | 13 mA |
| Galvanic isolation | 200 V (channel to CAN and channel to power; not a safety isolation for high-voltage applications) |
| Dimensions | Ø 86 × 25.4 mm (housing) |
| Weight | 300 g (approx.) |
| Operating temperature | −40 to 85 °C |
| Protection | IP67 (with stacking connectors) |
| Connections | Connector (inputs: 6 × M8 6-pin, two sensors each; power and CAN through the stacking connector) |
