TR6D-C six-axis load cells 71 to 178 kN

Three forces and three moments from one square body, in the field or on the bench.

178 kN: Force range per axis
9.5 kN·m: Moment range per axis
152.4 × 152.4 × 76.2 mm: Dimensions
7.5 kg: Weight

Non-linearity, forces≤ 0.5 % FS (X, Y) · ≤ 1.5 % FS (Z)
Non-linearity, moments≤ 0.5 % FS
Mounting8 × M20 × 2.5 threads
Included3.05 m cable · calibration certificate

Same bolt pattern, top and bottom

The TR6D-C-40K measures three forces and three moments at once: 178 kN and 9.5 kN·m per axis. It is fatigue rated and used for field data acquisition as well as laboratory testing.

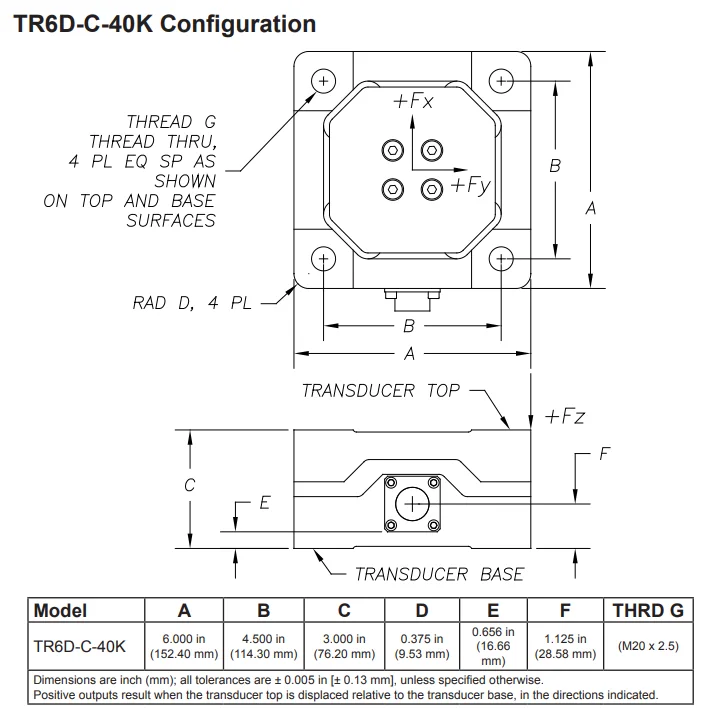

The top and bottom mounting faces and their bolt patterns are identical. The load goes in through eight M20 × 2.5 threads on the upper and lower faces, so plan for mounting flanges designed for your application.

The stainless steel body is sealed against the weather and temperature compensated, which keeps the output stable over a wide temperature range. A detachable 3.05 m cable and a NIST traceable calibration certificate are included.

Specifications

TR6D-C-16K
Measured quantities	Fx · Fy · Fz · Mx · My · Mz
Force capacity	Fx 71 · Fy 71 · Fz 71 kN
Moment capacity	Mx 1 400 · My 1 400 · Mz 1 400 N·m
Non-linearity	Fx ≤ 1 · Fy ≤ 1 · Fz ≤ 2 · Mx ≤ 0.5 · My ≤ 0.5 · Mz ≤ 0.5 % FS
Hysteresis	Fx ≤ 2 · Fy ≤ 2 · Fz ≤ 4 · Mx ≤ 1 · My ≤ 1 · Mz ≤ 1 % FS
Axes	6
Temperature effect on zero	≤ 0.2 % FS/°C
Calibration	NIST traceable
Rated output	Fx 0.5 · Fy 0.5 · Fz 0.5 · Mx 3 · My 3 · Mz 0.8 mV/V
Excitation voltage	10 V
Load thread	M12 × 1.75
Dimensions	101.6 × 101.6 × 50.8 mm
Weight	2.2 kg
Material	Stainless steel
Operating temperature	−40 to 149 °C
Compensated temperature	24 to 93 °C
Protection	IP65
Connections	Cable · Connector (detachable)
Cable length	3.05 m

TR6D-C-20K
Measured quantities	Fx · Fy · Fz · Mx · My · Mz
Force capacity	Fx 89 · Fy 89 · Fz 89 kN
Moment capacity	Mx 4 500 · My 4 500 · Mz 4 500 N·m
Non-linearity	Fx ≤ 0.5 · Fy ≤ 0.5 · Fz ≤ 1.5 · Mx ≤ 0.5 · My ≤ 0.5 · Mz ≤ 0.5 % FS
Hysteresis	≤ 0.5 % FS
Axes	6
Temperature effect on zero	≤ 0.2 % FS/°C
Calibration	NIST traceable
Rated output	Fx 1.5 · Fy 1.5 · Fz 1.5 · Mx 5 · My 5 · Mz 1.75 mV/V
Excitation voltage	10 V
Load thread	M20 × 2.5
Dimensions	152.4 × 152.4 × 76.2 mm
Weight	4.3 kg
Material	Titanium
Operating temperature	−40 to 149 °C
Compensated temperature	24 to 93 °C
Protection	IP65
Connections	Cable · Connector (detachable)
Cable length	3.05 m

TR6D-C-40K
Measured quantities	Fx · Fy · Fz · Mx · My · Mz
Force capacity	Fx 178 · Fy 178 · Fz 178 kN
Moment capacity	Mx 9 500 · My 9 500 · Mz 9 500 N·m
Non-linearity	Fx ≤ 0.5 · Fy ≤ 0.5 · Fz ≤ 1.5 · Mx ≤ 0.5 · My ≤ 0.5 · Mz ≤ 0.5 % FS
Hysteresis	≤ 0.5 % FS
Axes	6
Temperature effect on zero	≤ 0.2 % FS/°C
Calibration	NIST traceable
Rated output	Fx 1.5 · Fy 1.5 · Fz 1.5 · Mx 5 · My 5 · Mz 1.75 mV/V
Excitation voltage	10 V
Mounting fasteners	8 × M20 × 2.5
Dimensions	152.4 × 152.4 × 76.2 mm
Weight	7.5 kg
Material	Stainless steel
Operating temperature	−40 to 149 °C
Compensated temperature	24 to 93 °C
Protection	IP65
Connections	Cable · Connector (detachable)
Cable length	3.05 m
