SGA multi-channel strain gage amplifiers
Strain gage amplifier box for Michigan Scientific multi-axis load cells, with 3, 6 or 12 channels: bridge excitation, shunt calibration and a ± 10 V output per channel.
- 3
- Channels
- 1
- Load cell inputs
- ± 10 V
- Output
- 9 to 36 V DC
- Supply voltage
- 6
- Channels
- 2
- Load cell inputs
- ± 10 V
- Output
- 9 to 36 V DC
- Supply voltage
- 12
- Channels
- 4
- Load cell inputs
- ± 10 V
- Output
- 9 to 36 V DC
- Supply voltage
- ModelsSGA3 · SGA6 · SGA12
- Bridge excitation± 5 V (10 V total)
- Frequency response, −3 dB7.5 kHz at gain 201
- Operating temperature0 to 70 °C
- ModelsSGA3 · SGA6 · SGA12
- Bridge excitation± 5 V (10 V total)
- Frequency response, −3 dB7.5 kHz at gain 201
- Operating temperature0 to 70 °C
- ModelsSGA3 · SGA6 · SGA12
- Bridge excitation± 5 V (10 V total)
- Frequency response, −3 dB7.5 kHz at gain 201
- Operating temperature0 to 70 °C
One box for one to four load cells

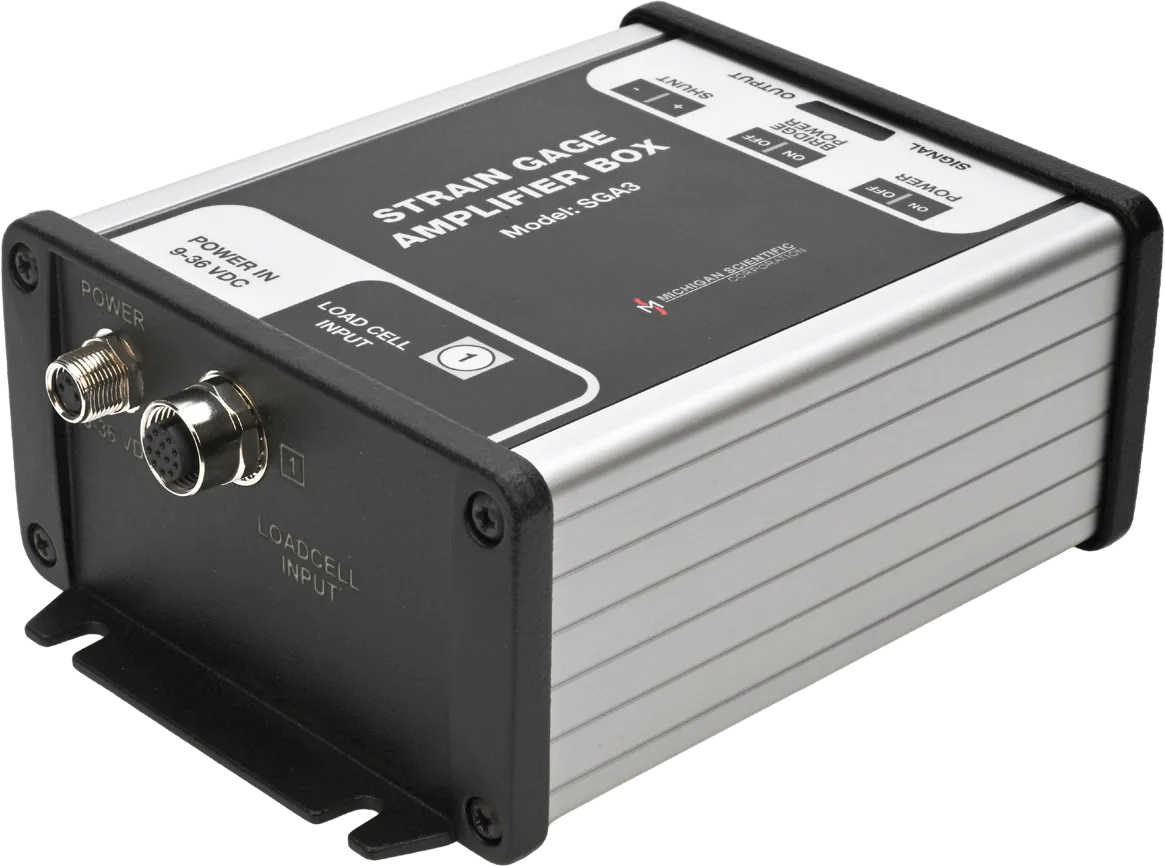

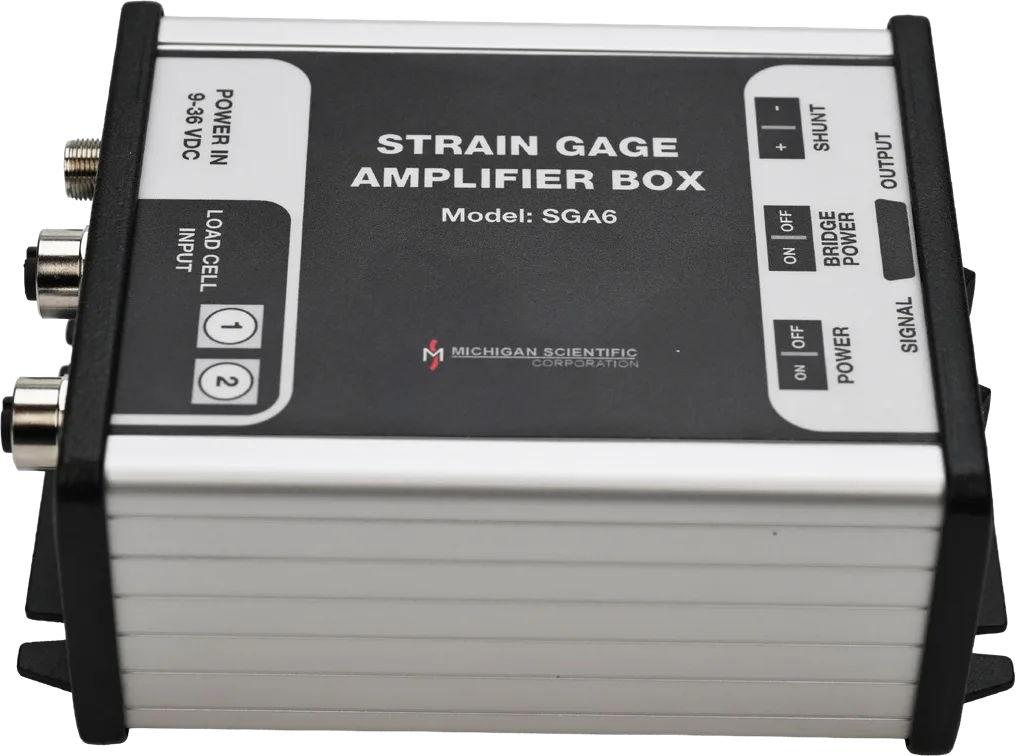

The SGA is a strain gage amplifier box for Michigan Scientific multi-axis load cells, built with 3, 6 or 12 channels: the SGA3 has one load cell input, the SGA6 two and the SGA12 four, each carrying the X, Y and Z bridges of a three-axis load cell. Each channel gets bipolar DC constant-voltage excitation of ± 5 V (10 V total), accurate to 0.10 %, a precision low-noise differential amplifier with a nominal gain of 201 V/V, and integrated 100 kΩ shunt resistors for positive and negative shunt calibration. Each output has a ± 10 V range and a −3 dB frequency response of 7.5 kHz. The box runs on 9 to 36 V DC and operates from 0 to 70 °C.

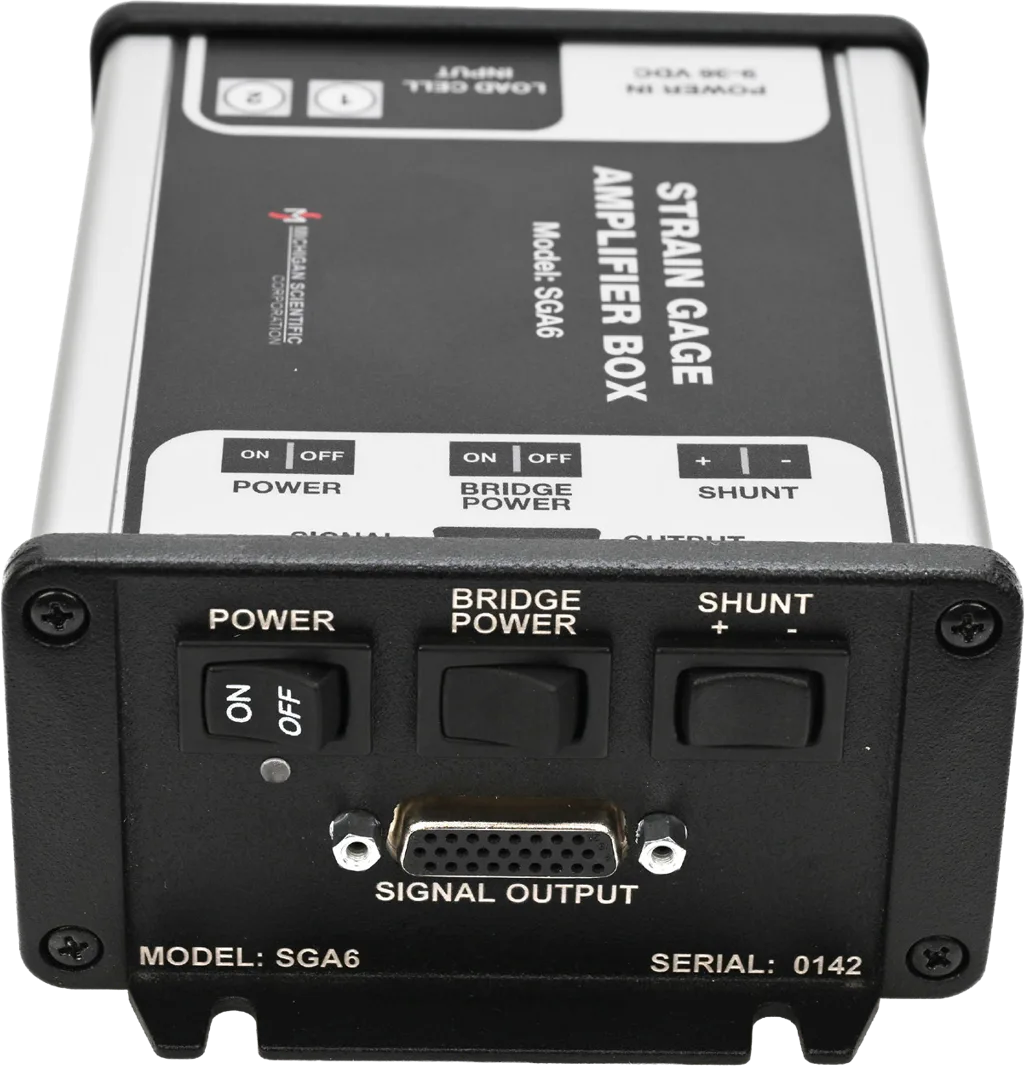

The load cells and the power cable plug into M12 connectors on the back panel. The outputs leave on the front panel through a 26-pin D-sub breakout cable, which bundles the signals of each load cell in its own wire group, labeled 1 to 4. Three switches sit on the front panel: power; bridge power, which turns the excitation on or off while the amplifier stays powered; and a momentary shunt switch, held in the positive or negative position to output the shunt voltage. Each load cell's sensitivities are on its calibration sheet; the no-load output is removed in the data acquisition system, by nulling the channels before recording or in post-processing.
It is used with one three-axis load cell to measure engine mount or pintle hitch forces, and with four cells to measure seat mounting forces or the net loads on a platform.
Specifications
| Channels | 3 |
|---|---|
| Input | Strain gage bridge (one load cell input, X, Y and Z) |
| Output | Analog voltage |
| Output range | −10 to 10 V |
| Bandwidth | 7.5 kHz (−3 dB at gain 201) |
| Gain | 201 V/V (nominal, default) |
| Shunt calibration | Positive · Negative · Manual switch (momentary switch on the front panel) |
| Shunt resistor | 100 kΩ |
| Gain accuracy | ≤ 0.1 % (typical, at 25 °C and gain 201) |
| Gain temperature coefficient | ≤ 0.0025 %/°C |
| Input offset | ≤ 25 µV |
| Offset drift | ≤ 0.2 µV/°C |
| Shunt accuracy | ≤ 0.01 % |
| Supply voltage | 9 to 36 V (DC) |
| Excitation voltage | 10 V (± 5 V, bipolar DC constant voltage; on/off switch) |
| Bridge resistance | 350 Ω (minimum) |
| Supply current | 1.25 A |
| Excitation accuracy | ≤ 0.1 % |
| Excitation temperature coefficient | ≤ 0.0005 %/°C |
| Dimensions | 160 × 108 × 58.6 mm |
| Operating temperature | 0 to 70 °C |
| Connections | Connector (power: M12 A-coded · load cells: M12 A-coded, 12 pins · outputs: 26-pin D-sub with breakout cable) |
| Channels | 6 |
|---|---|
| Input | Strain gage bridge (two load cell inputs, X, Y and Z each) |
| Output | Analog voltage |
| Output range | −10 to 10 V |
| Bandwidth | 7.5 kHz (−3 dB at gain 201) |
| Gain | 201 V/V (nominal, default) |
| Shunt calibration | Positive · Negative · Manual switch (momentary switch on the front panel) |
| Shunt resistor | 100 kΩ |
| Gain accuracy | ≤ 0.1 % (typical, at 25 °C and gain 201) |
| Gain temperature coefficient | ≤ 0.0025 %/°C |
| Input offset | ≤ 25 µV |
| Offset drift | ≤ 0.2 µV/°C |
| Shunt accuracy | ≤ 0.01 % |
| Supply voltage | 9 to 36 V (DC) |
| Excitation voltage | 10 V (± 5 V, bipolar DC constant voltage; on/off switch) |
| Bridge resistance | 350 Ω (minimum) |
| Supply current | 1.25 A |
| Excitation accuracy | ≤ 0.1 % |
| Excitation temperature coefficient | ≤ 0.0005 %/°C |
| Dimensions | 160 × 108 × 58.6 mm |
| Operating temperature | 0 to 70 °C |
| Connections | Connector (power: M12 A-coded · load cells: M12 A-coded, 12 pins · outputs: 26-pin D-sub with breakout cable) |
| Channels | 12 |
|---|---|
| Input | Strain gage bridge (four load cell inputs, X, Y and Z each) |
| Output | Analog voltage |
| Output range | −10 to 10 V |
| Bandwidth | 7.5 kHz (−3 dB at gain 201) |
| Gain | 201 V/V (nominal, default) |
| Shunt calibration | Positive · Negative · Manual switch (momentary switch on the front panel) |
| Shunt resistor | 100 kΩ |
| Gain accuracy | ≤ 0.1 % (typical, at 25 °C and gain 201) |
| Gain temperature coefficient | ≤ 0.0025 %/°C |
| Input offset | ≤ 25 µV |
| Offset drift | ≤ 0.2 µV/°C |
| Shunt accuracy | ≤ 0.01 % |
| Supply voltage | 9 to 36 V (DC) |
| Excitation voltage | 10 V (± 5 V, bipolar DC constant voltage; on/off switch) |
| Bridge resistance | 350 Ω (minimum) |
| Supply current | 1.25 A |
| Excitation accuracy | ≤ 0.1 % |
| Excitation temperature coefficient | ≤ 0.0005 %/°C |
| Dimensions | 160 × 108 × 58.6 mm |
| Operating temperature | 0 to 70 °C |
| Connections | Connector (power: M12 A-coded · load cells: M12 A-coded, 12 pins · outputs: 26-pin D-sub with breakout cable) |
